Description

Price

1

ASM-CORE,RADIATOR [TO 06/01/20]

1241117

Unavailable

1

ASM-CORE,RADIATOR [FROM 06/01/20]

1241388

$514.79

2

ASM-FAN,BRUSHLESS

2414657

$319.99

3

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

4

BRKT-MOUNT,RADIATOR,LH,ECOAT

5263170-329

$35.99

5

BRKT-MOUNT,RADIATOR,RH,ECOAT

5263171-329

$35.99

6

BRKT-MOUNT,RADIATOR,ECOAT

5268338-329

$91.99

7

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

SHROUD-RADIATOR,UPPER

5452630

$19.99

10

SCR-M6X1X16 TR/TX-M

7518936

$3.99

11

HOSE-OUT,SURGE TANK TO TEE

5415443

$31.99

12

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

13

HOSE CLAMP, RED

7080003

$1.49

14

HOSE-IAC,SHORT

5813672

$5.59

15

CLAMP-HOSE,(7/16)

7080236

$1.59

16

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

17

TUBE-COOLANT,1"

5141611

$53.24

18

TUBE-COOLANT,1"

5141612

$62.92

19

BRKT-COOLANT TUBE,BLK

5259433-329

$27.99

20

BRKT-COOLANT TUBE,ECOAT

5265342-329

$47.99

21

BRACKET-COOLANT TUBE

5451221

$8.79

22

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

23

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

24

HOSE-ENG OUTLET,REAR

5414530

$71.99

25

HOSE-ENG INLET,REAR

5414976

$39.99

26

HOSE-RADIATOR,UPPER

5416028

$51.99

27

HOSE-RADIATOR,LWR,FRONT

5416030

$27.99

28

HOSE-RADIATOR,LWR,REAR

5415446

$27.99

29

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

30

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

31

CAP-PRESSURE

1240300

$40.46

32

WELD-SURGE TANK,DUAL

1240943

$115.99

33

1/4"SAEJ2002,EPDM HOSE,61 CM

8450120-61

Unavailable

34

WELD-BRKT-MNT,FAN,ECOAT

1241122-329

$10.39

35

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

36

BRKT-BUMPER MNT,FR,UP,LH,BLK

5264780-329

$45.97

37

BRKT-BUMPER MNT,FR,UP,RH,BLK

5264781-329

$45.97

38

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

39

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

40

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

41

CLIP-COOLANT ROUTING

5453767

$5.59

42

SHROUD-RADIATOR

5454422

$67.99

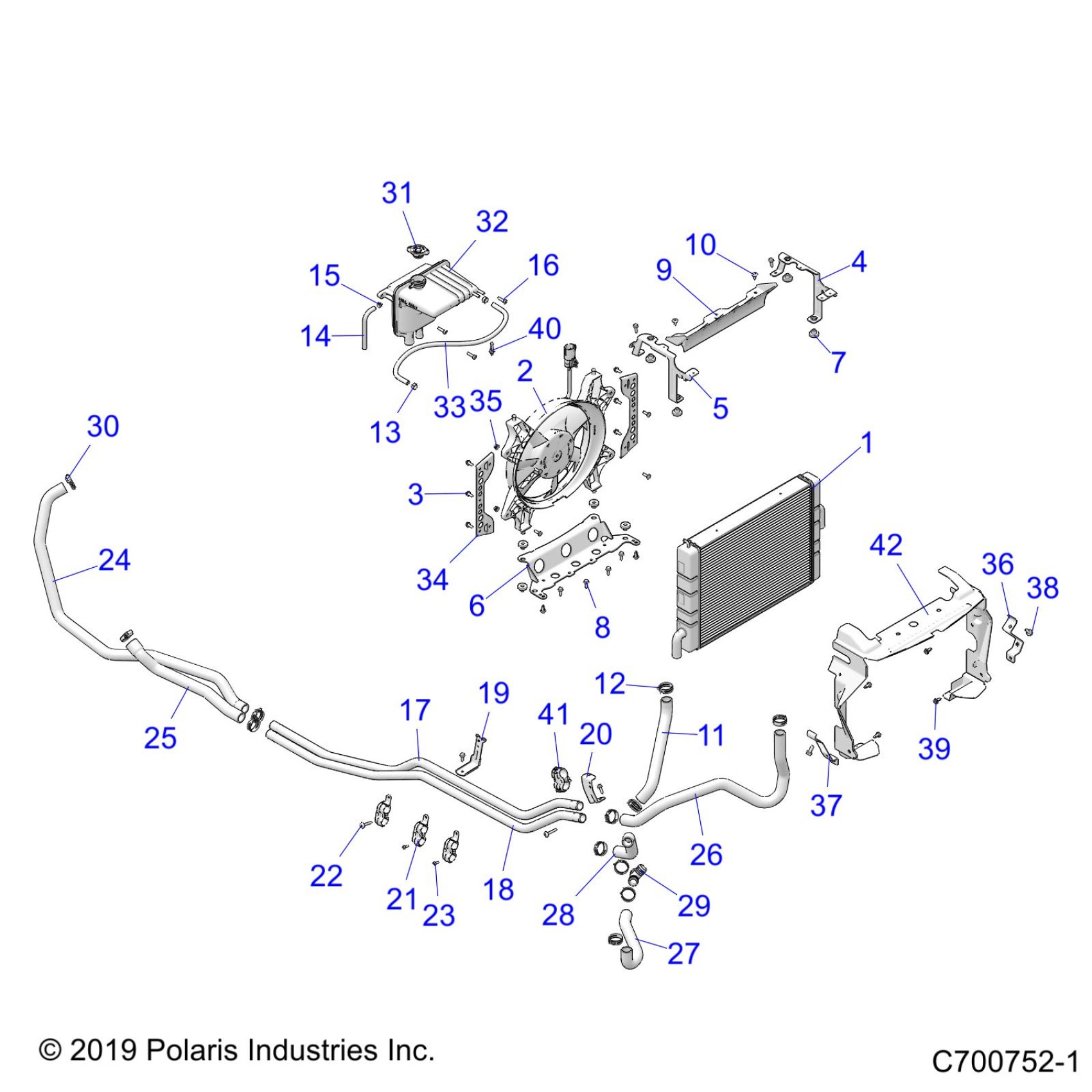

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC ENGINE, COOLING SYSTEM - Z20PAE92AC/BC/F92AC/LC (C700752-1) Diagram

ASM-CORE,RADIATOR [TO 06/01/20]

ASM-CORE,RADIATOR [FROM 06/01/20]

ASM-FAN,BRUSHLESS

SCR-HXFL-M6X1.0X16 8.8 ZPB

BRKT-MOUNT,RADIATOR,LH,ECOAT

BRKT-MOUNT,RADIATOR,RH,ECOAT

BRKT-MOUNT,RADIATOR,ECOAT

GROMMET-FLANGED,.36X.56X1.06

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SHROUD-RADIATOR,UPPER

SCR-M6X1X16 TR/TX-M

HOSE-OUT,SURGE TANK TO TEE

SPRINGBAND-CLAMP 35/12,BLK

HOSE CLAMP, RED

HOSE-IAC,SHORT

CLAMP-HOSE,(7/16)

SCR-#14X1 HI/LO-PH-PN TRX-M

TUBE-COOLANT,1"

TUBE-COOLANT,1"

BRKT-COOLANT TUBE,BLK

BRKT-COOLANT TUBE,ECOAT

BRACKET-COOLANT TUBE

SCR-M6X1X40,TR/TX-BLK

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

HOSE-ENG OUTLET,REAR

HOSE-ENG INLET,REAR

HOSE-RADIATOR,UPPER

HOSE-RADIATOR,LWR,FRONT

HOSE-RADIATOR,LWR,REAR

CONNECTOR-TEE,1",1",1" BARBED

CLAMP-HOSE(WORM DR)25-40MM

CAP-PRESSURE

WELD-SURGE TANK,DUAL

1/4"SAEJ2002,EPDM HOSE,61 CM

WELD-BRKT-MNT,FAN,ECOAT

NUT- M8X1.25, FLG, NYLOC-OLIVE D

BRKT-BUMPER MNT,FR,UP,LH,BLK

BRKT-BUMPER MNT,FR,UP,RH,BLK

SCR-TFHFL-M8X1.25X20 CHS ZOD

RIVET-TUFLOK,.315-.325X.787

CLIP FIR-TREE,DIA6-33MM

CLIP-COOLANT ROUTING

SHROUD-RADIATOR
