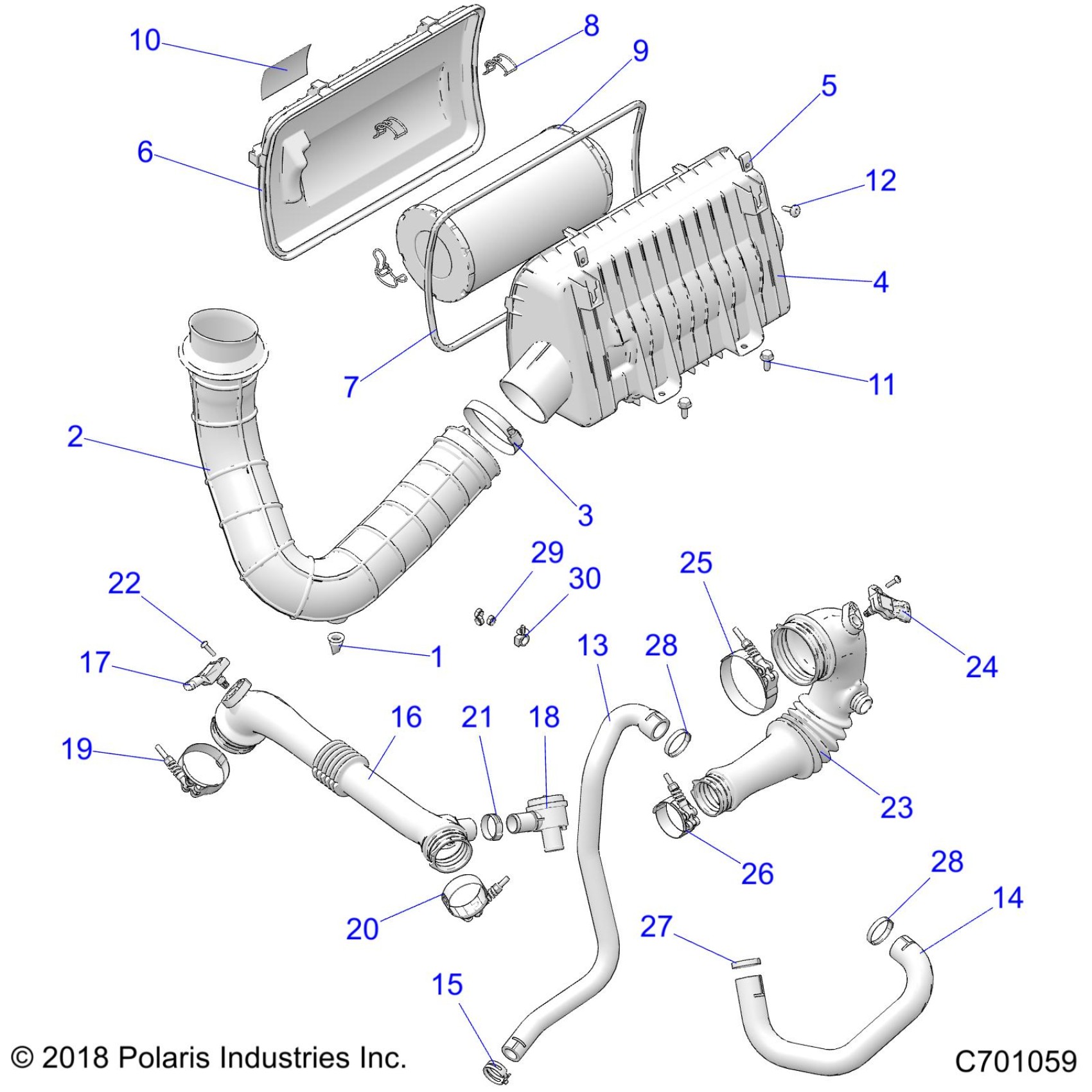

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC ENGINE, AIR INTAKE SYSTEM - Z20PAE92AC/BC/F92AC/LC (C701059) Diagram

PLUG-DRAIN

5414472

$5.59

HOSE-AIRBOX,IN

5416487

$103.99

CLAMP-HOSE,3.75,SS

7080907

$11.19

ASM-AIRBOX HOUSING [INCL 5]

1240747

$87.99

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

ASM-AIRBOX COVER [INCL 7,8]

1240748

$71.99

SEAL-AIRBOX

5813929

$27.99

CLIP-AIRBOX

7081872

$5.59

ASM-FILTER

1241084

$35.99

K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit

2882234

$59.99

DECAL-CAUT.AIR BOX [E92AC][E92BC][F92AC]

7182652

Unavailable

DECAL-WARN,INTAKE [F92LC]

7185975

Unavailable

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

HOSE-VENT,ENG

5416620

$51.99

HOSE-VENT,BOV

5415474

$91.99

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

ASM-DUCT,CHARGE AIR [INCL 17-21, 1 QTY OF 22]

1240931

Unavailable

SENSOR-TMAP,3BAR

2413095

$83.99

VALVE-DUMP,TURBO

3022784

Unavailable

CLAMP-HOSE T-BOLT,66.3 DIA

7082091

$35.99

CLAMP-HOSE T-BOLT,56 DIA

7082092

$35.99

CLAMP-OETIKER,16704932-32

7082095

$5.59

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.99

ASM-DUCT,INTAKE AIR [INCL 24-26, 1 QYT OF 22]

1240933

$99.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

CLAMP-HOSE T-BOLT,87.3 DIA

7082093

$31.99

CLAMP-HOSE T-BOLT,52.3 DIA

7082094

$31.99

CLAMP-OETIKER, 16704965-36.1

7082107

$4.79

CLAMP-OETIKER,16702031-38.5

7082108

$5.59

CLAMP-OETIKER,16702031-38.5

7082108

$5.59

CLAMP-OETIKER,16700005-10.0

7082109

$3.99

CLIP, ROUTING, .472 B.D., HINGED

7670116

$5.59
