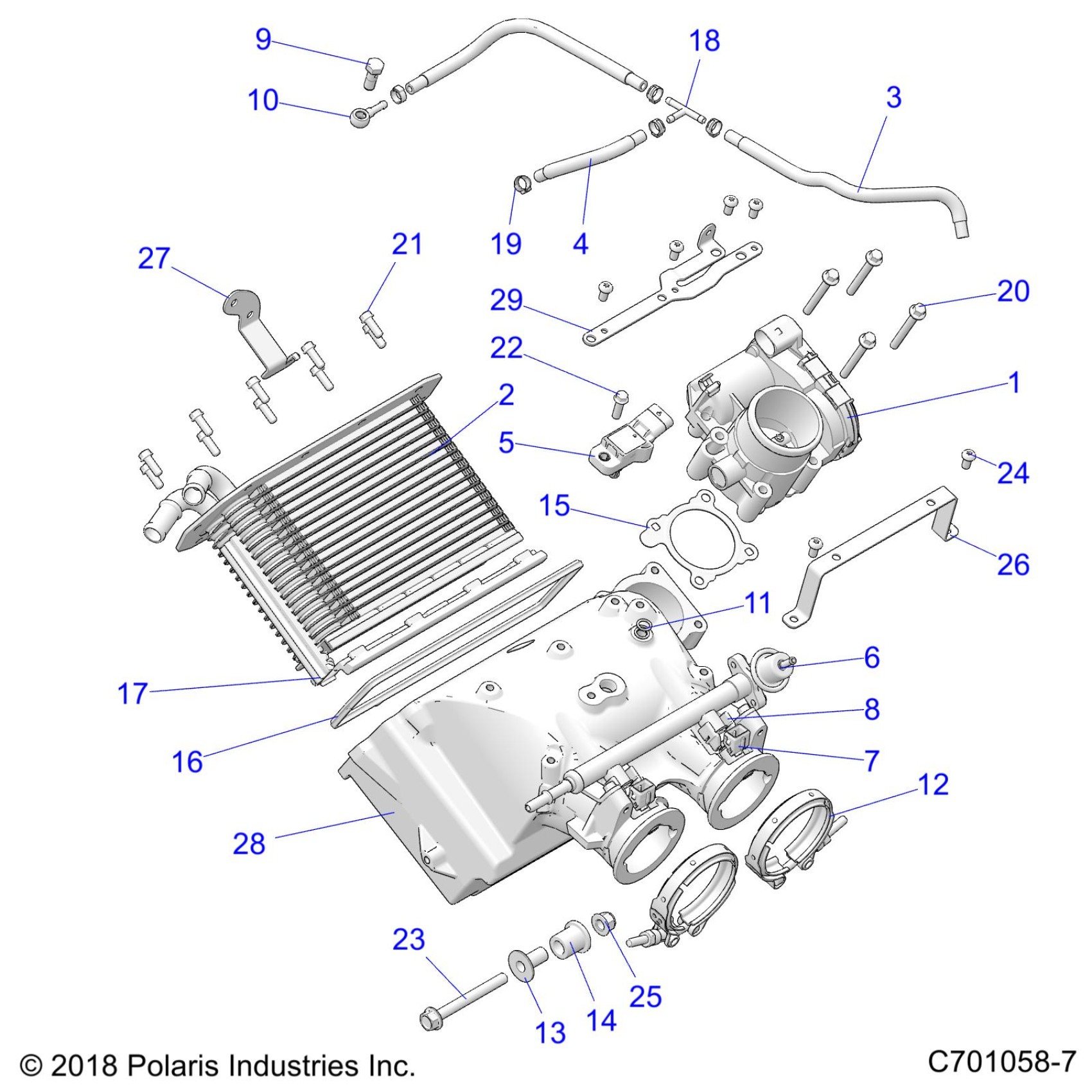

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC ENGINE, AIR INTAKE MANIFOLD - Z20PAE92AC (C701058-7) Diagram

#

Description
Price

1

THROTTLE-ETC,46MM

1204455

$495.29

2

CORE-LCAC

1240930

$417.29

3

ASM-HOSE REFERENCE,25 CM

1241000

$5.59

4

ASM-HOSE REFERENCE,10 CM

1241001

$4.79

5

SENSOR-TMAP,3BAR

2413095

$83.99

6

ASM-RAIL,FUEL,4BAR,REF

2521494

$187.99

7

INJECTOR-FUEL,570G,3.8BAR

2521718

$67.99

8

CLIP-INJECTOR,MM

2521515

$9.59

9

BOLT-BANJO,M8X1

2521519

$10.39

10

FITTING-BANJO,M8

2521520

$31.99

11

WASHER-M8,AL

2521527

$4.79

12

CLAMP-VBAND,INTAKE

3022888

$47.99

13

SPACER-BUSHING

3022994

$7.99

14

ISOLATOR

5415637

$2.39

15

GASKET-ETC

5813735

$11.19

16

SEAL-LCAC,TOP

5814277

$11.99

17

SEAL-LCAC,SIDE-BTM

5814370

Unavailable

18

FITTING-T,3/16,POLYE

7052446

$3.99

19

CLAMP-OETIKER,16700005-10.0

7082109

$3.99

20

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

21

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

22

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

23

SCR-M8X1.25X75 8.8 HX/FL ZOD

7518955

$3.19

24

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

25

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

BRKT-MNT,INJECTOR HARNESS,BLK

5260975-329

$13.59

27

BRKT-MOUNT,FUEL LINE,BLK

5261651-329

$10.39

28

MANIFOLD-MACH,VBAND

5140096

$243.99

29

BRACKET, HARNESS

5262111

$27.99
