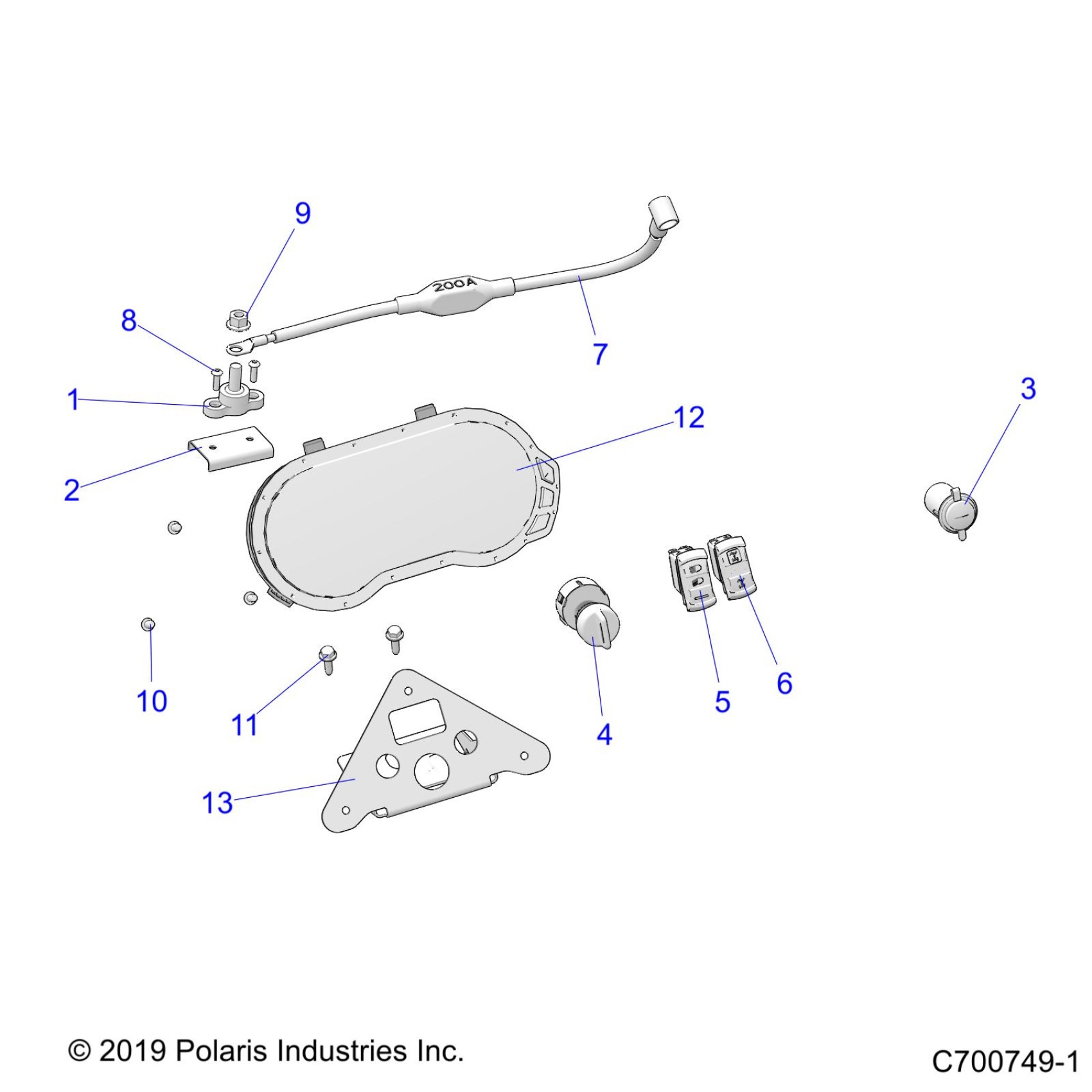

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20PAE92AC/BC/F92AC/LC (C700749-1) Diagram

#

Description
Price

1

BLOCK-JUNCTION

4011615

$27.78

2

BRKT-MTG,B+ POST,BLK

5264769-329

$12.13

3

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

4

SWITCH-KEY,4 POSITION,MT SLV

4016058

$56.99

5

SWITCH-HEADLIGHT

4014069

$89.03

6

SWITCH-AWD

4014673

$67.76

7

CABLE-JUMPER,ACCY,FUSED

4017147

$67.76

8

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.19

9

NUT-FLANGED,3/8-16 NYLON

7547180

$2.38

10

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

12

ASM-C4,RZR,RGR,GNRL,256K

3280863

$479.74

13

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$69.99
