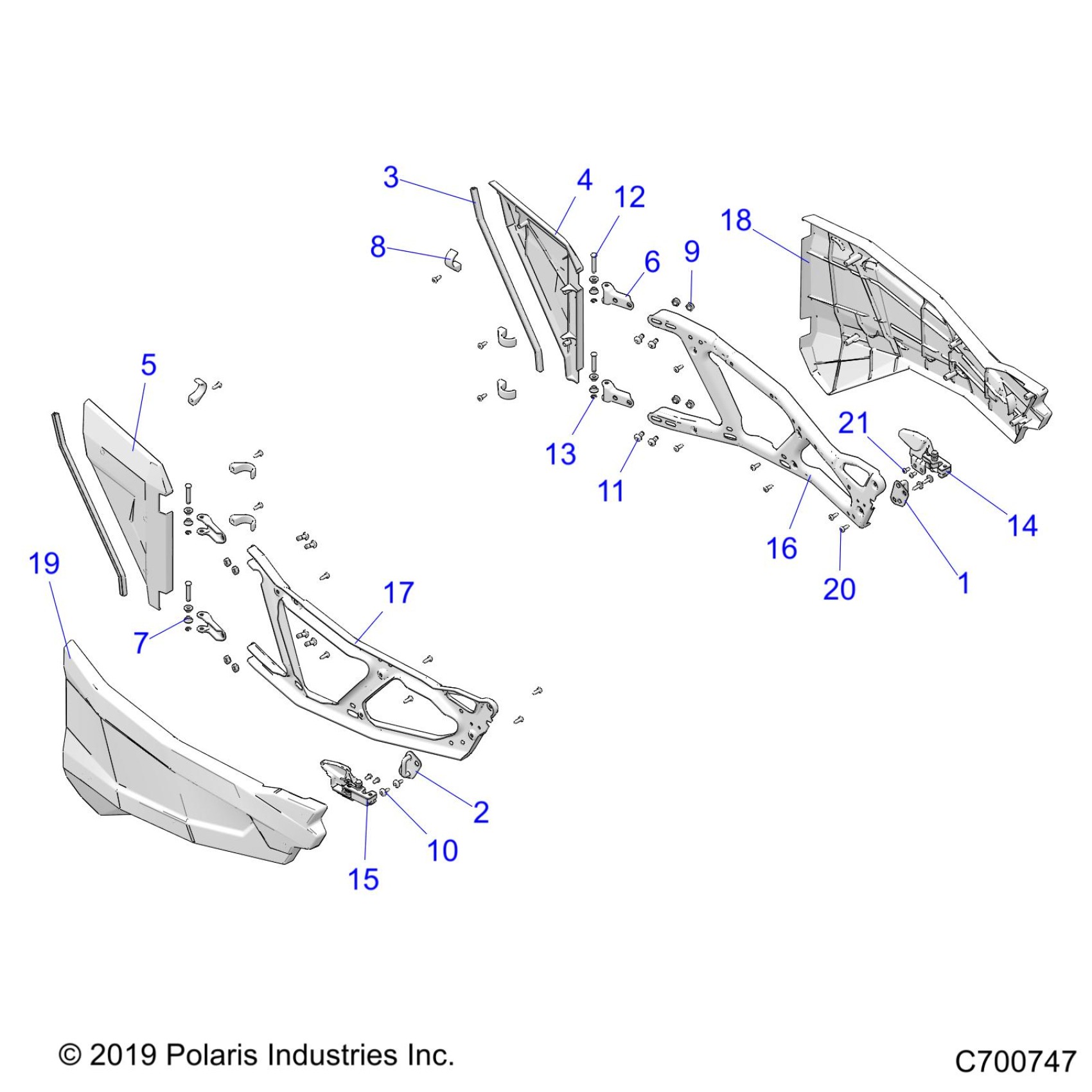

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC BODY, DOORS - Z20PAE92AC/BC/F92AC (C700747) Diagram

#

Description
Price

1

STRIKER, WELD, LH

1021237

$39.99

2

STRIKER, WELD, RH

1021238

$39.99

3

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

4

ASM., BOLSTER, LH [INCL 2]

2635693

$79.99

5

ASM., BOLSTER, RH [INCL 2]

2635694

$79.99

6

BRACKET, DOOR, HINGE

5258008

Unavailable

7

BUSHING, DOOR, PIVOT

5450592

$2.39

8

BRKT-J MOUNT,INJ,RZN

5451472

$15.99

9

NUT-WELD,M8X1.25,PILOT PROJ.

7547474

Unavailable

10

SCREW

7519112

$3.19

11

SCREW

7519997

$3.99

12

PIN, DOOR, HINGE

7662138

$4.79

13

E-CLIP,M6, DIN 6799

7710466

$3.19

14

ASM-LATCH,DOOR,LH

2637286

$71.99

15

ASM-LATCH,DOOR,RH

2637287

$71.99

16

STAMPING, DOOR FRAME, LH

5257929-458

$147.99

17

STAMPING, DOOR FRAME, RH

5257930-458

$147.99

18

DOOR, SKIN, LH

5450636

$119.99

19

DOOR, SKIN, RH

5450638

$119.99

20

SCREW

7519045

Unavailable

21

SCREW

7519063

$3.99
