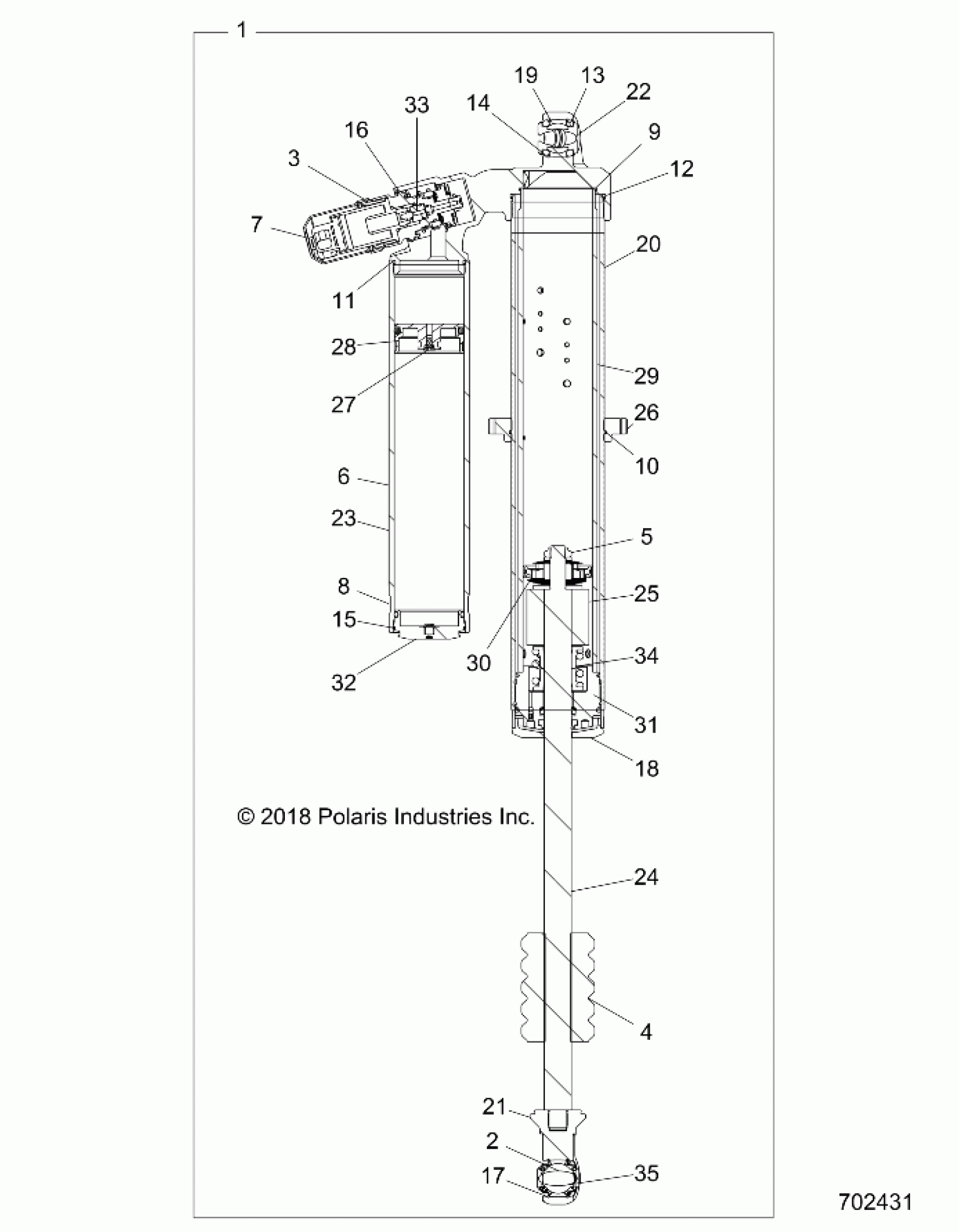

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG SUSPENSION, REAR SHOCK INTERNALS - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (702431) Diagram

#

Description
Price

1

SHOCK-REAR,PXP,IBPLV,LTD,LH

7045404

$1,632.39

1

SHOCK-REAR,PXP,IBPLV,LTD,RH

7045405

$1,632.39

2

-------

-------

Unavailable

3

COVER - LIVE VALVE

1501290

$27.99

4

-------

-------

Unavailable

5

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

6

-------

-------

Unavailable

7

DECAL - IRD CVR, LIVE

1501272

$10.39

8

DECAL - BAND

1501273

$11.99

9

SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC

1501069

$8.87

10

-------

-------

Unavailable

11

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

12

SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC

1501070

$8.87

13

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

14

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

15

WIRE, RETAINING RING

1500960

$3.73

16

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

17

RING, RET., WIRE SS

1501292

$3.99

18

BEARING CAP

1501320

$17.59

19

------- [USE WITH 7045404]

-------

Unavailable

19

------- [USE WITH 7045405]

-------

Unavailable

20

-------

-------

Unavailable

21

-------

-------

Unavailable

22

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

23

RESERVOIR: (T) [� 2.250 BORE, 12.000 TLG] AL 6061, THREADED ID, SHORT OD STEP

1501077

$235.54

24

-------

-------

Unavailable

25

-------

-------

Unavailable

26

-------

-------

Unavailable

27

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

28

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

29

-------

-------

Unavailable

30

-------

-------

Unavailable

31

ASM-BEARING

1501324

$118.79

32

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

33

ADJUSTER - DSC HIFLO

1501288

$470.79

34

-------

-------

Unavailable

35

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46
