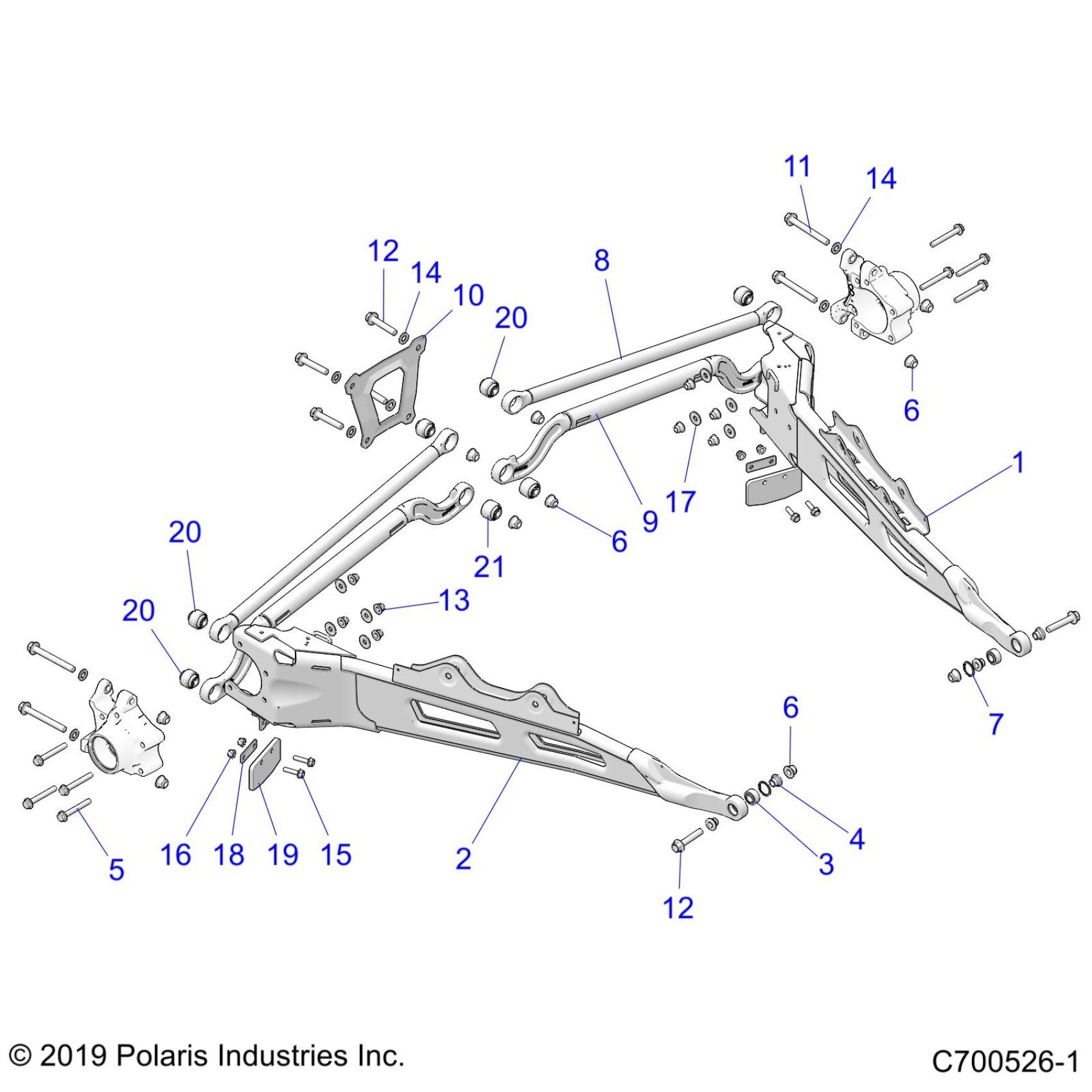

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG SUSPENSION, REAR CONTROL ARMS - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700526-1) Diagram

WELD-TRL ARM,LH,INDY RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024416-293

$532.52

WELD-TRL ARM,LH,BLK [L92AP][L92BP][G92AP]

1024416-458

$532.52

WELD-TRL ARM,RH,INDY RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024417-293

$532.52

WELD-TRL ARM,RH,BLK [L92AP][L92BP][G92AP]

1024417-458

$532.52

BEARING, SPHERICAL

3514689

$39.68

BUSHING, REDUCER

5336751

$6.35

SCREW

7519286

$7.14

NUT, FLANGE, NYLOK

7547334

$4.76

NUT, FLANGE, NYLOK

7547334

$4.76

NUT, FLANGE, NYLOK

7547334

$4.76

RING, RETAINER

7710437

$3.17

ASM-RADIUS ROD,INDY RED [L92AG][L92BG][L92LG][G92AG][G92LG][INCL. 20]

1543999-293

$202.37

ASM-RADIUS ROD,MBLK [L92AP][L92BP][G92AP][INCL 20]

1543999-458

$182.13

ASM-RADIUS ROD,BTM,INDY RED [L92AG][L92BG][L92LG][G92AG][G92LG][INCL. 20,21]

1544153-293

$235.54

ASM-RADIUS ROD,BTM,MBLK [L92AP][L92BP][G92AP][INCL 20,21]

1544153-458

$206.41

PLATE-REAR,BOLT BRACE,BLK

5264429-458

$62.92

SCREW

7520479

$7.14

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.17

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.17

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556287

$7.14

WASHER

7556287

$7.14

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$1.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.17

BRKT-BACKER,SCRAPER,M.BLK

5265115-458

$38.71

SCRAPER-DEBRIS,BLK

5454591-070

$14.56

BEARING-SPHERICAL

7082253

$15.87

BEARING-SPHERICAL

7082253

$15.87

BEARING-SPHERICAL

7082253

$15.87

BEARING-SPHERICAL,LOW MISALIGN

7082283

$15.87
