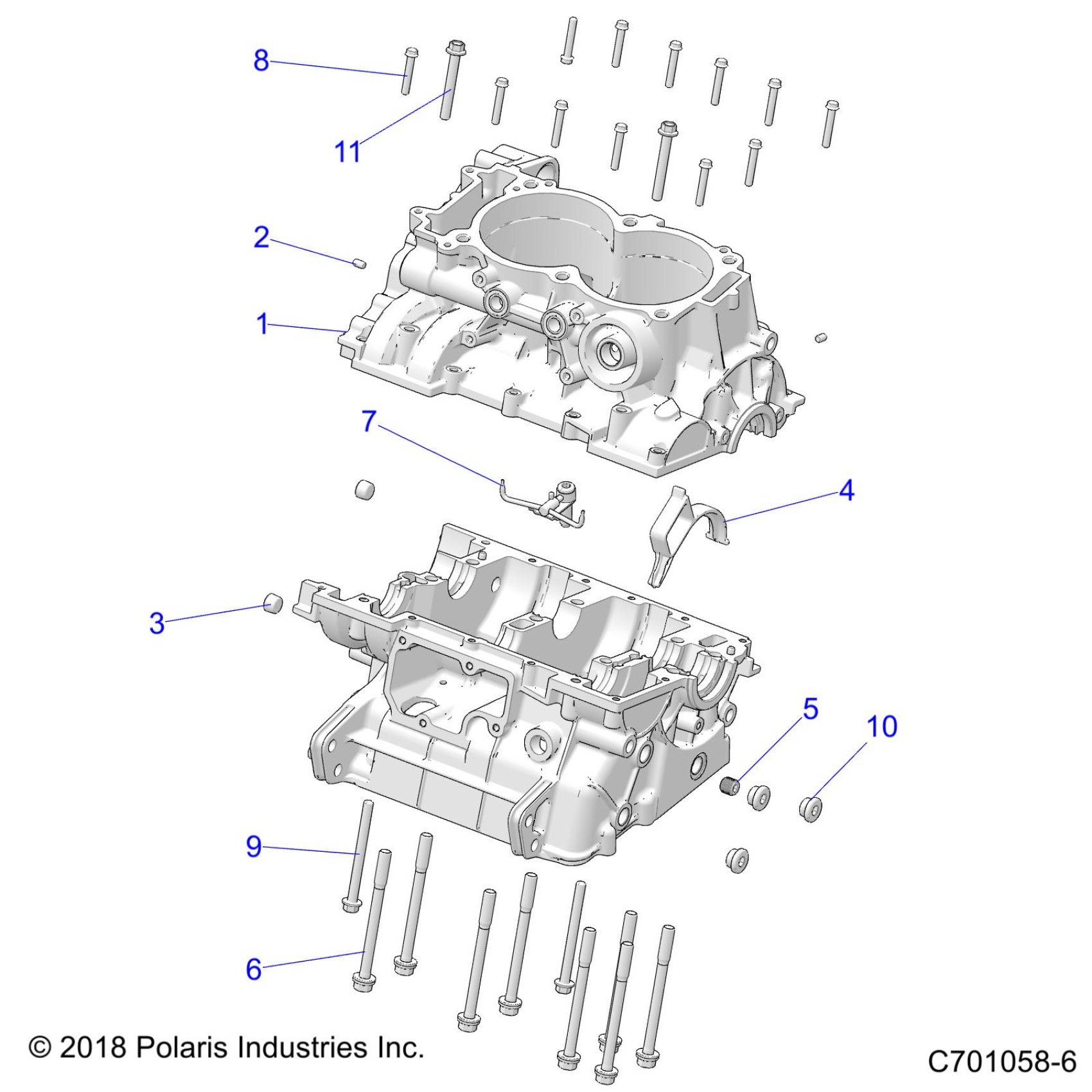

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG ENGINE, CRANKCASE - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C701058-6) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL. 2-10]

2207375

$1,399.99

2

PIN-DOWEL,M6X10

5136879

$2.38

3

PLUG

7052413

$4.03

4

DIVERTER, OIL DRAIN

5452616

$24.27

5

PLUG

7518835

$5.65

6

SCR-HXFL M10X1.25X115MM 10.9

7520979

$13.49

7

JET, PISTON

3022856

$53.24

8

SCREW

7518578

$3.97

9

SCREW

7519154

$7.14

10

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$8.99

11

SCREW

7519186

$6.64
