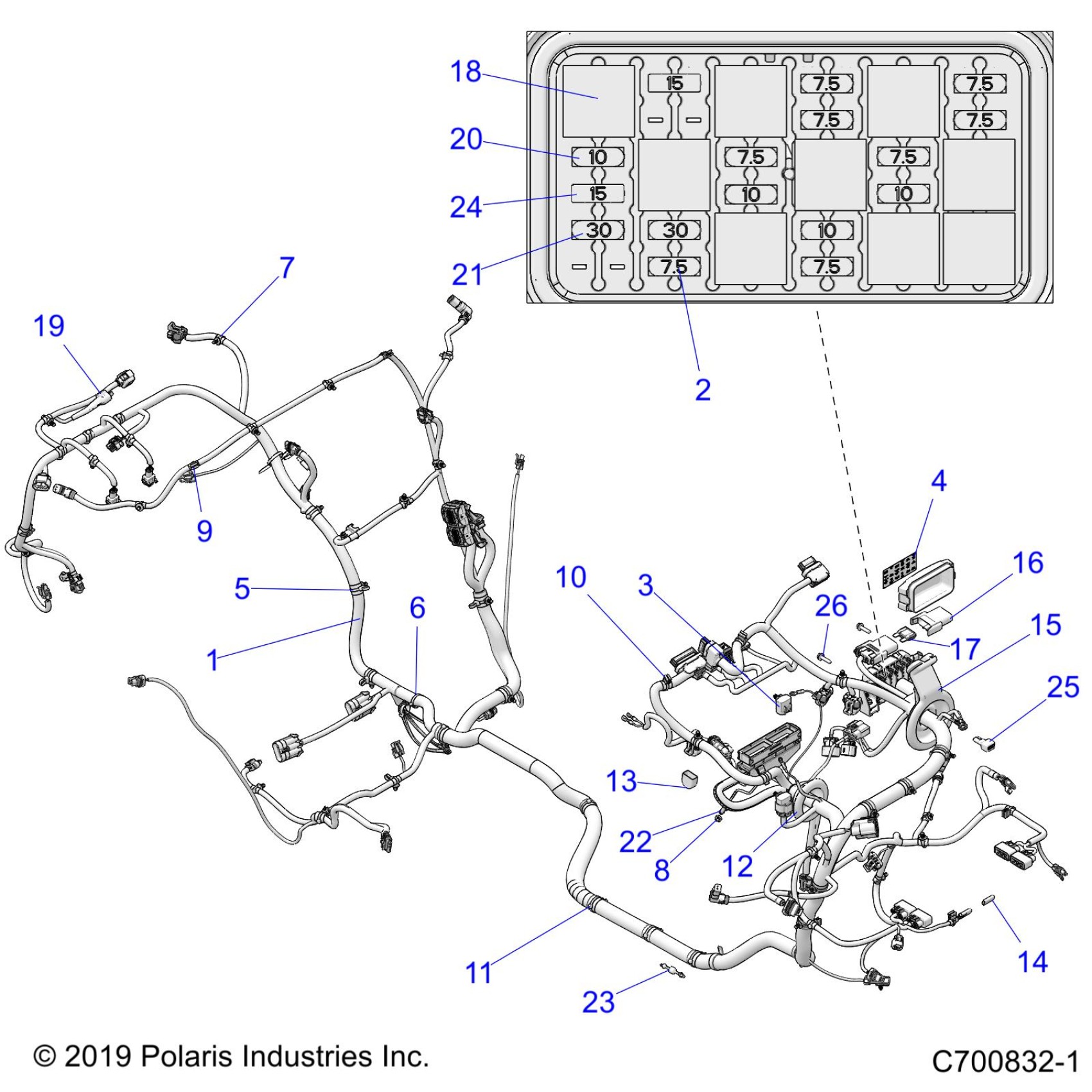

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG ELECTRICAL, WIRE HARNESS - Z20PAL92AG/AP/LG (C700832-1) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,LV,AUD [INCL. 1-25]

2415038

$1,324.39

2

FUSE-7.5 MINI BLADE (BROWN)

4011068

Unavailable

3

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

4

LABEL-FUSE BOX

7189101

Unavailable

5

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

6

CLIP-OMEGA,CABLE/15-18MM DIA

7082481

$6.39

7

CLIP-ROUTING

7082068

$7.19

8

CLIP-ROUTING,DIN BOX

7082020

$5.59

9

CLIP-EDGE,HARNESS

7081890

$10.39

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

GROMMET-65MM,BLK

5813954

$7.19

13

CAP-VINYL,500X1000,BLACK

5438233

$6.68

14

CAP-VINYL,125X375,BLACK

5438230

$5.59

15

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

16

HOLDER-FUSE,SEALED

4018207

$67.99

17

FUSE, 30 AMP

4012081

$11.19

18

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

19

BOOT-TMAP

4018263

$7.99

20

FUSE-IGNITION,10 AMP

2434016

$4.79

21

FUSE-MAIN,30 AMP

2434015

$7.19

22

LED-PANEL MNT,12V,BLUE

2413217

$51.99

23

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

24

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

25

DIODE-6 AMP

2410000

$35.99

26

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19
