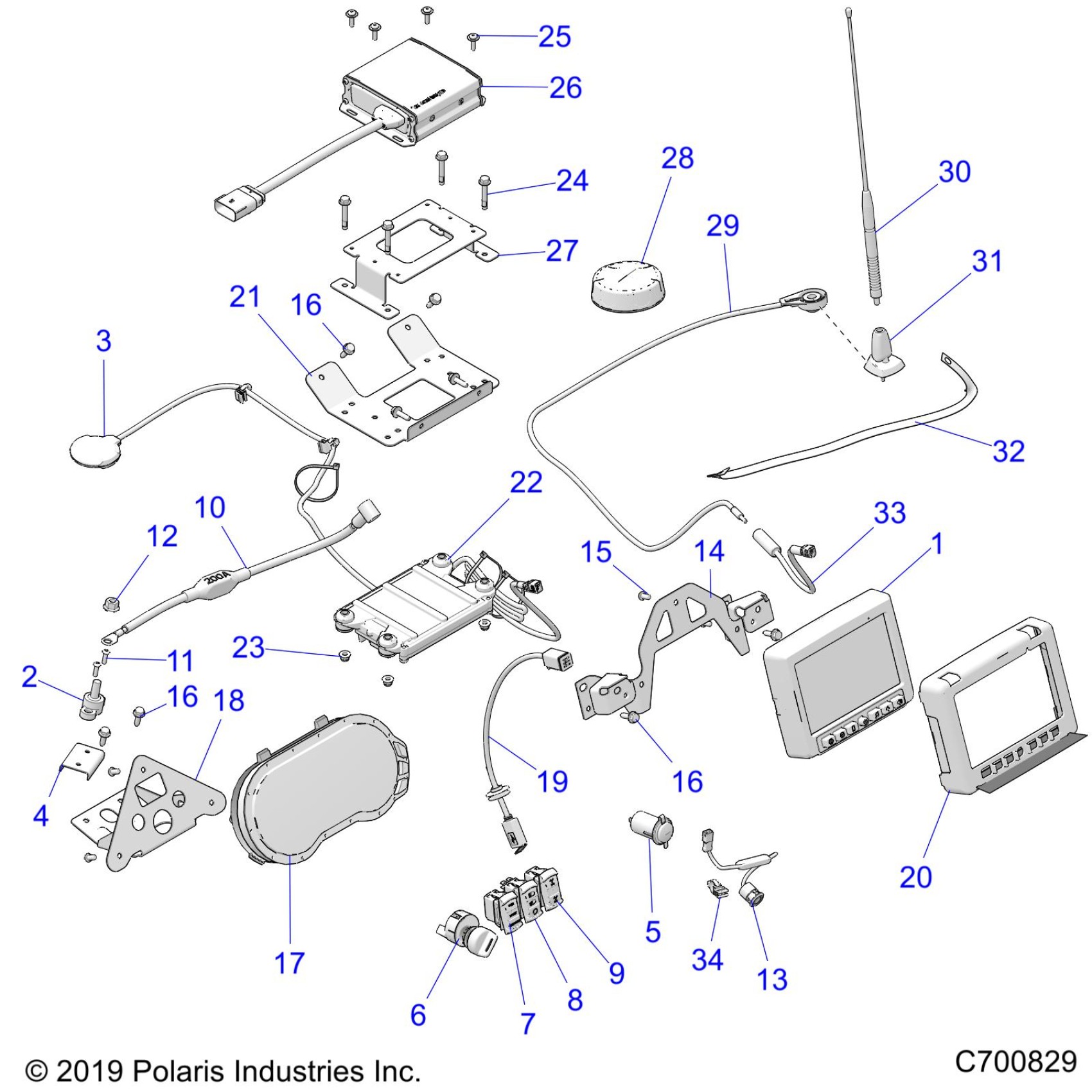

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700829) Diagram

#

Description
Price

1

ASM-DISPLAY,DIG,P7,PRG,250K

3280922

$2,099.99

2

BLOCK-JUNCTION

4011615

$27.78

3

ANTENNA,GPS,EXT

4017533

$90.24

4

BRKT-MTG,B+ POST,BLK

5264769-329

$12.13

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

6

SWITCH-KEY,4 POSITION,MT SLV

4016058

$56.99

7

SWITCH-MODE,LV

4018546

$101.65

8

SWITCH-HEADLIGHT,LASER

4017133

$76.89

9

SWITCH-AWD,LASER

4017134

$67.76

10

CABLE-JUMPER,ACCY,FUSED

4017147

$67.76

11

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.19

12

NUT-FLANGED,3/8-16 NYLON

7547180

$2.38

13

CAM-MIRROR,CAMERA,APX

4015873

$251.74

14

BRKT-RZR 7" DISPLAY,BLK

5266577-329

$52.60

15

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

17

ASM-C4,RZR,RGR,GNRL,256K

3280863

$479.74

18

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$69.99

19

HARNESS,USB,RC

2414710

$56.99

20

BEZEL-GAUGE,7",ORV,7 BTN,BLK

5455574-070

$15.37

21

BRKT-SCM,AMP,BLK

5266963-458

$36.41

22

SCM-PROGRAMMED,LV,72

4017138

$949.99

23

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.38

24

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$0.63

25

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

26

AMP,AUDIO,DASH MOUNT,2 CH

4017614

$399.99

27

BRKT-SCM,AMP,ECOAT

5268220-329

$36.41

28

ANTENNA,V2V

4018713

$139.99

29

ASM-HARNESS,AM/FM ANTENNA,1050

2414727

$64.99

30

ANTENNA-MAST,AM/FM,SHORT

4014849

$139.99

31

MOUNT-ANTENNA,90-DEG ADJ,NUT

4016695

$59.99

32

STRAP-GROUND,ANTENNA,BRAIDED

4016696

$32.37

33

HARNESS-AM/FM ADAPTER

2414431

$94.99

34

CLIP-EDGE,1-3MM THICKNESS

7082427

$5.56
