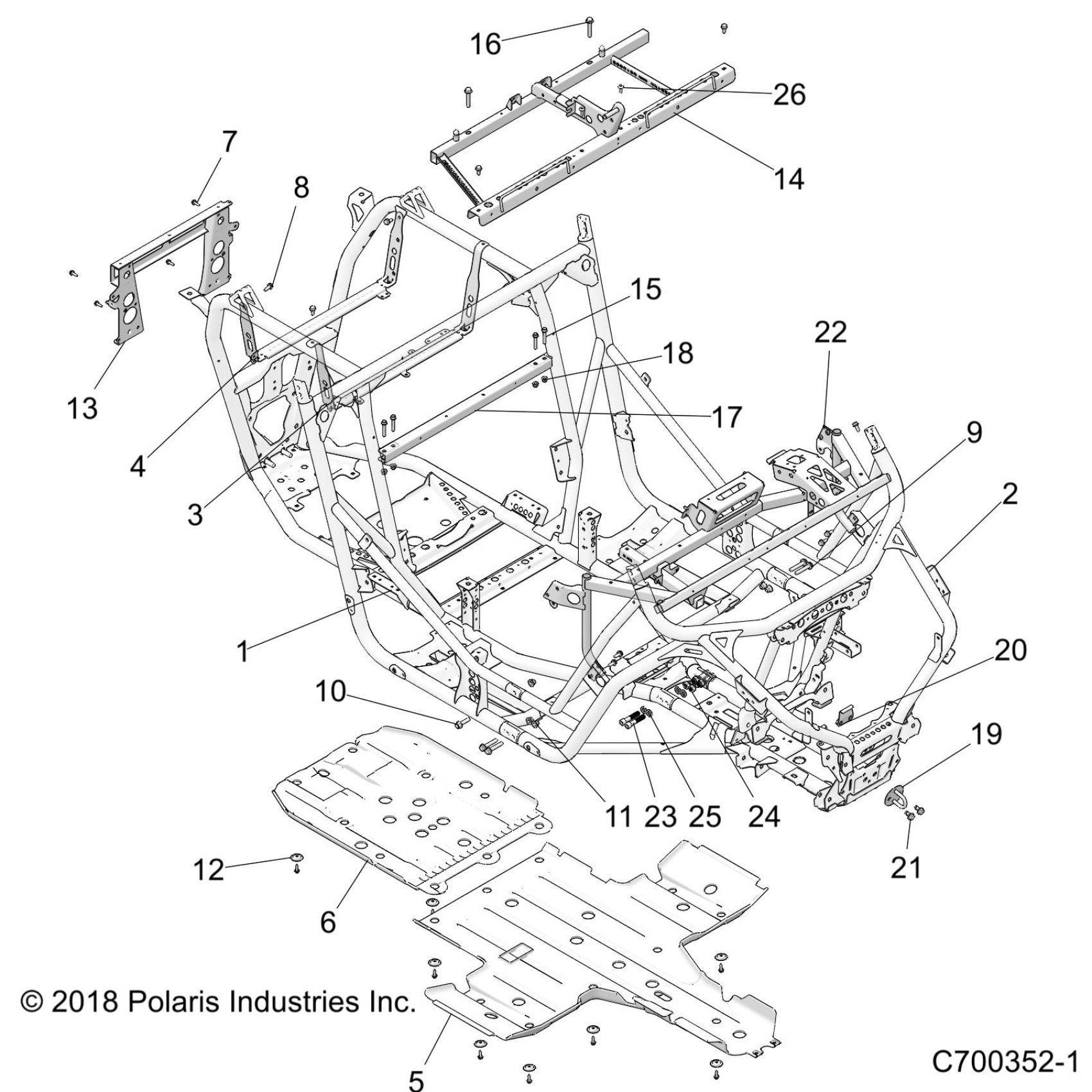

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG CHASSIS, MAIN FRAME AND SKID PLATES - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700352-1) Diagram

WELD-MAIN FRAME,72,BLK

1024496-458

$3,000.79

WELD-MAINFRAME,FRT,ISO,72,BLK

1024713-458

$1,632.39

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

PLATE-SKID,BLK [TO 5/20/2020]

5456432-070

$239.99

PLATE-SKID,BLK [FROM 5/20/2020]

5457486-070

Unavailable

PLATE-SKID,REAR,BLK [TO 5/20/2020]

5456435-070

Unavailable

PLATE-SKID,REAR,BLK [FROM 5/20/2020]

5457488-070

$239.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BOLT

7518555

$2.39

SCREW

7519285

$2.39

SCREW

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

SUPPORT, REAR, BLACK

1019529-458

$115.99

BASE, SEAT, BLACK

1020571-329

$195.99

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

BOLT

7518474

$4.79

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

Unavailable

WELD-TOW HOOK,BLK

1020619-458

$107.99

BRKT-TOW HOOK BACKER,BLK

5264362-458

$55.99

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

SCR-SH-M12X1.5X60 12.9 ZFB

7521020

$7.19

NUT-HEX-M12X1.5 10 SPL

7547958

$6.39

WSHR-22X13X3 ZFB HRD

7557160

$3.19

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99
