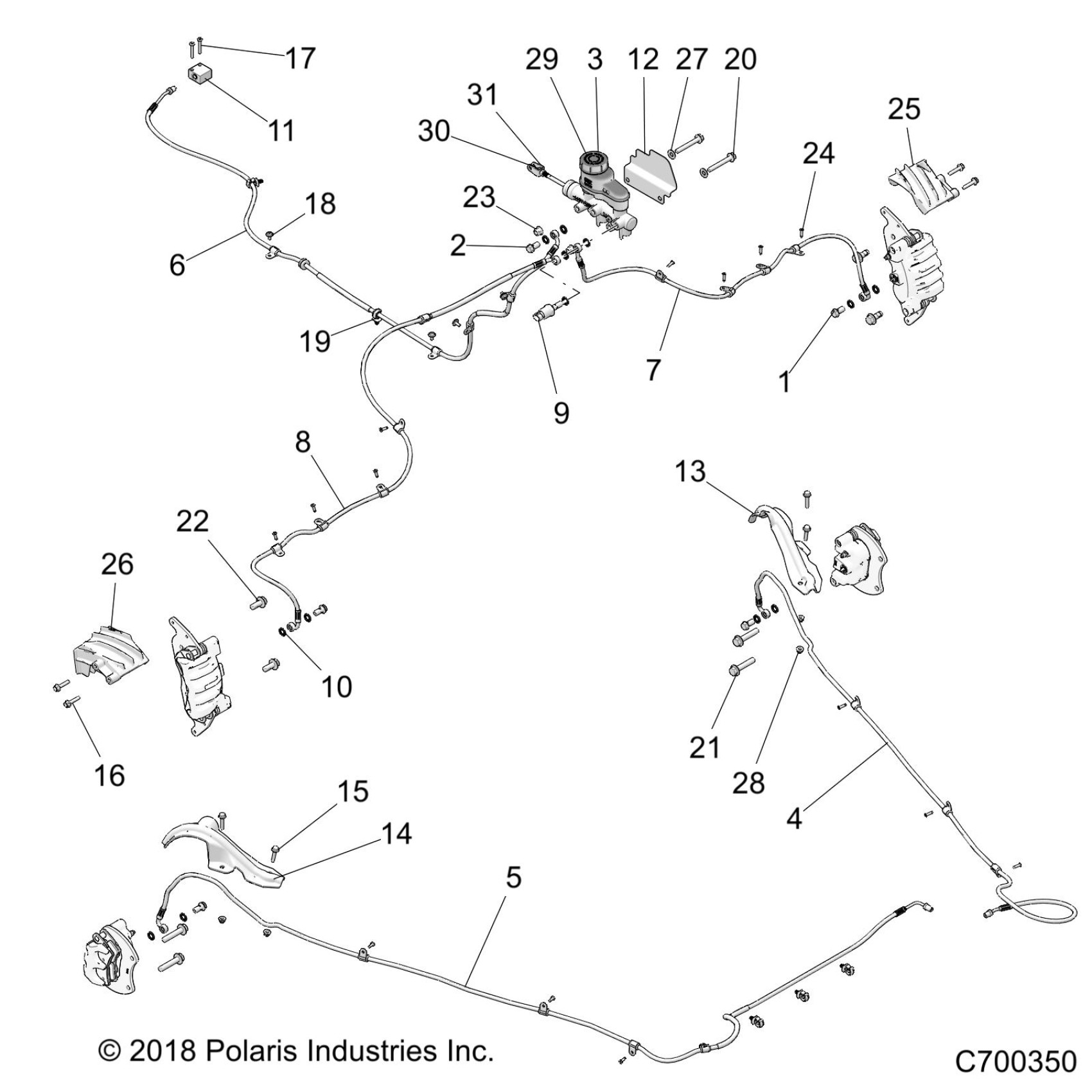

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG BRAKES, BRAKE LINES AND MASTER CYLINDER - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700350) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.56

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

ASM., TANDEM MASTER CYLINDER [INCL. 29-31]

1911982

$133.56

4

LINE-BRK,RL,67,20F,90SB75G,316

1913310

$109.24

5

LINE-BRK,RR,80,90F,90SB-75,30�

1913311

$128.24

6

LINE-BRK,MCT,66.4,70B,20F,250�

1912999

$105.22

7

LINE-BRK,FL,40,20B,90SB165,235

1913312

$128.24

8

LINE-BRK,FR,53,70B,90SB15,234�

1913313

$109.24

9

SWITCH, BRAKE, DOUBLE, SEALED

4014262

$99.74

10

SEAL, STAT

5413212

$4.84

11

FITTING-TEE,BRAKE

7052293

$59.52

12

SHIELD, MASTER CYLINDER

5259049

$58.08

13

GUIDE,RZR,72,RL

5455263

$32.37

14

GUIDE,RZR,72,RR

5455264

$32.37

15

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

16

SCR-M6X1.0X30,HXFL

7519036

$11.11

17

SCREW

7512025

$4.76

18

SCREW

7518176

$4.76

19

CLIP-NYLON,C,FIR-TREE

7662310

$4.76

20

SCREW

7519298

$3.97

21

BOLT, HEX FLANGE

7518559

$5.56

22

BOLT, HEX FLANGE W/PATCH

7518760

$9.52

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

24

Rivet

7621323

Unavailable

25

SCRAPER,RZR,T,FRONT,LH

5633829

$32.37

26

SCRAPER,RZR,T,FRONT,RH

5633830

$32.37

27

WASHER

7555954

$4.76

28

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

29

KIT-SERVICE,CAP ASM,TNDM MC,HB

2204993

$47.60

30

KIT-NUTS,CLEVIS,M/C TANDEM [INCL. 2 NUTS]

2203457

$32.37

31

KIT-CLEVIS,M/C TANDEM,HB 3/4"

2203456

$32.37
