- RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG
BODY, DOORS, FRONT - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700806)

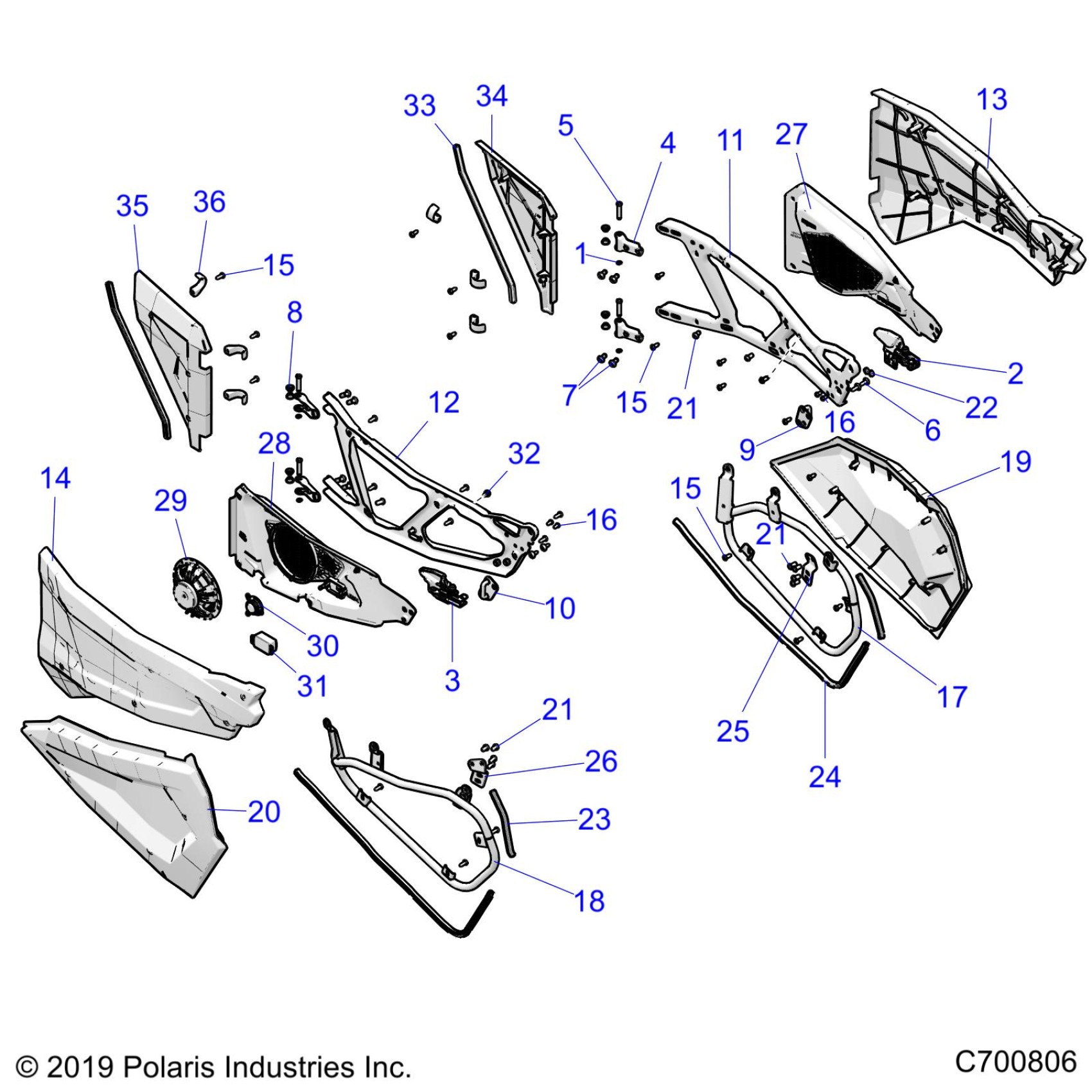

Polaris RZR TURBO S (R04) - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG BODY, DOORS, FRONT - Z20PAL92AG/AP/BG/BP/LG/G92AG/AP/LG (C700806) Diagram
#
Description
Price
1
E-CLIP,M6, DIN 6799
7710466
$3.19
2
ASM-LATCH,DOOR,LH
2637286
$71.99
3
ASM-LATCH,DOOR,RH
2637287
$71.99
4
BRACKET, DOOR HINGE
5258008
Unavailable
5
PIN, DOOR HINGE [TO 7/1/2020]
7662138
$4.79
5
PIN-DOOR HINGE [FROM 7/1/2020]
7663016
$4.79
6
SCREW
7519112
$3.19
7
SCREW
7519997
$3.99
8
BUSHING, DOOR PIVOT
5450592
$2.39
9
STRIKER, LH
1021237
$39.99
10
STRIKER, RH
1021238
$39.99
11
FRAME, DOOR, LH, BLACK
5257929-458
$147.99
12
FRAME, DOOR, RH, BLACK
5257930-458
$147.99
13
DOOR SKIN, LH
5450636
$119.99
14
DOOR SKIN, RH
5450638
$119.99
15
SCREW
7519045
Unavailable
15
SCREW
7519045
Unavailable
15
SCREW
7519045
Unavailable
16
SCREW
7519063
$3.99
16
SCREW
7519063
$3.99
17
WELD-MOUNT,DOOR,LOWER,LH,RZN
1019994
$107.99
18
WELD-MOUNT,DOOR,LOWER,RH,RZN
1019999
$107.99
19
PANEL-DOOR,PLASTIC,LWR,LH,RZN
5450616
$107.99
20
PANEL-DOOR,PLASTIC,LWR,RH,RZN
5450617
$107.99
21
SCR-HXBH-M8X1.25X16 10.9 ZPB
7517484
Unavailable
21
SCR-HXBH-M8X1.25X16 10.9 ZPB
7517484
Unavailable
21
SCR-HXBH-M8X1.25X16 10.9 ZPB
7517484
Unavailable
22
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
23
SEAL-WTHRSTRP,LWR,DR,RZN
5522024-180
$23.99
24
SEAL-WTHRSTRP,LWR,DR,RZN
5522024-837
$43.99
25
MOUNT-LWR DOOR,LH,RZN
5258254
$27.99
26
MOUNT-LWR DOOR,RH,RZN
5258255
$27.99
27
ASM-SPEAKER,DOOR,PANEL,LH,RZT [INCL. 29-32]
2636268
$309.99
28
ASM-SPEAKER,DOOR,PANEL,RH,RZT [INCL. 29-32]
2636269
$309.99
29
SPKR-DOOR,PANEL,WOOFER,RZT
4016257
$100.31
30
SPKR-DOOR,PANEL,TWTR,RZT
4016381
$79.41
31
CROSSOVER-DOOR,PANEL,RZT
4016382
$83.59
32
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
33
SEAL-WTHRSTRP,BOLSTER,RZN
5522024-450
$43.99
34
ASM., BOLSTER, LH [INCL. 34]
2635693
$79.99
35
ASM., BOLSTER, RH [INCL. 34]
2635694
$79.99
36
BRKT-J MOUNT,INJ,RZN
5451472
$15.99
