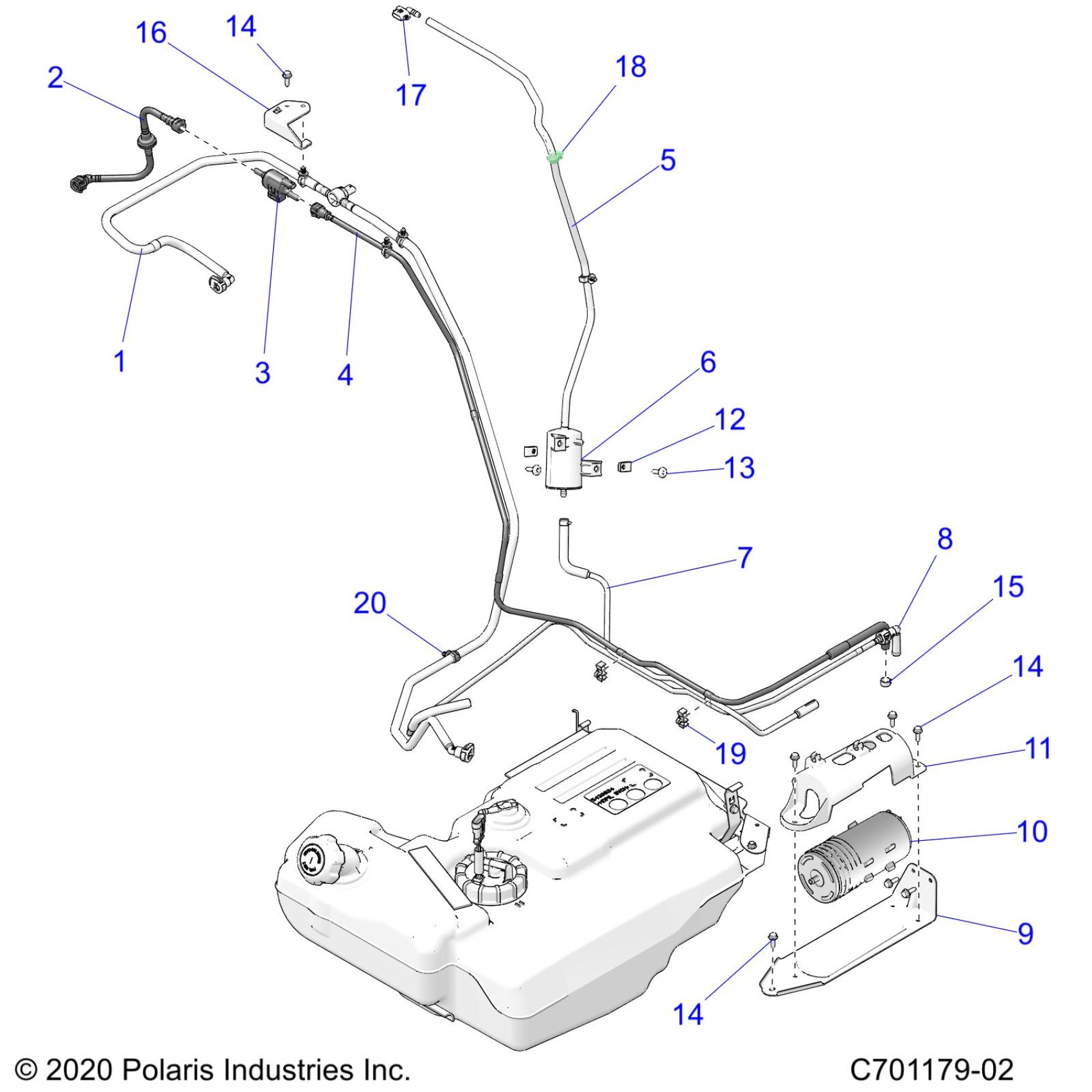

Polaris RZR TURBO S (R02) - Z21PAE92AE/AN/BE/BN/L92AL/AT/BL/BT BODY, FUEL LINES, EVAP - Z21PAE92BE/BN/L92BL/BT (C700317-1) Diagram

ASM-FUEL LINE,SUPPLY

2522366

$118.74

HOSE,PURGE TO CHAMBER

2521966

$59.99

VALVE-PURGE

2521964

$77.44

ASM-LINE,CANISTER TO PURGE

2521965

$79.99

FUEL LINE-90 CENTIMETERS

8450040-90

$12.94

FILTER-CANISTER VENT

2521750

$61.10

ASM-LINE,VENT TO CANISTER

2521716

$99.99

ASM-LINE,TANK TO CANISTER

2522032

$69.99

BRKT-MNT CANISTER,E-COAT

5263210-329

$36.41

CANISTER-ACTIVATED CARBON,BFL

2521893

$114.99

BRKT-MNT CANISTER,BLK

5453458-070

$14.56

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.19

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

HOSE CLAMP, RED

7080003

Unavailable

BRKT-MNT PURGE.ECOAT

5266158-329

$44.99

FITTING-VENT LINE,90

5453464

$5.56

CLIP, ROUTING, .472 B.D., HINGED

7670116

$5.56

CLIP-TRIPLE

7082246

$6.35

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76
