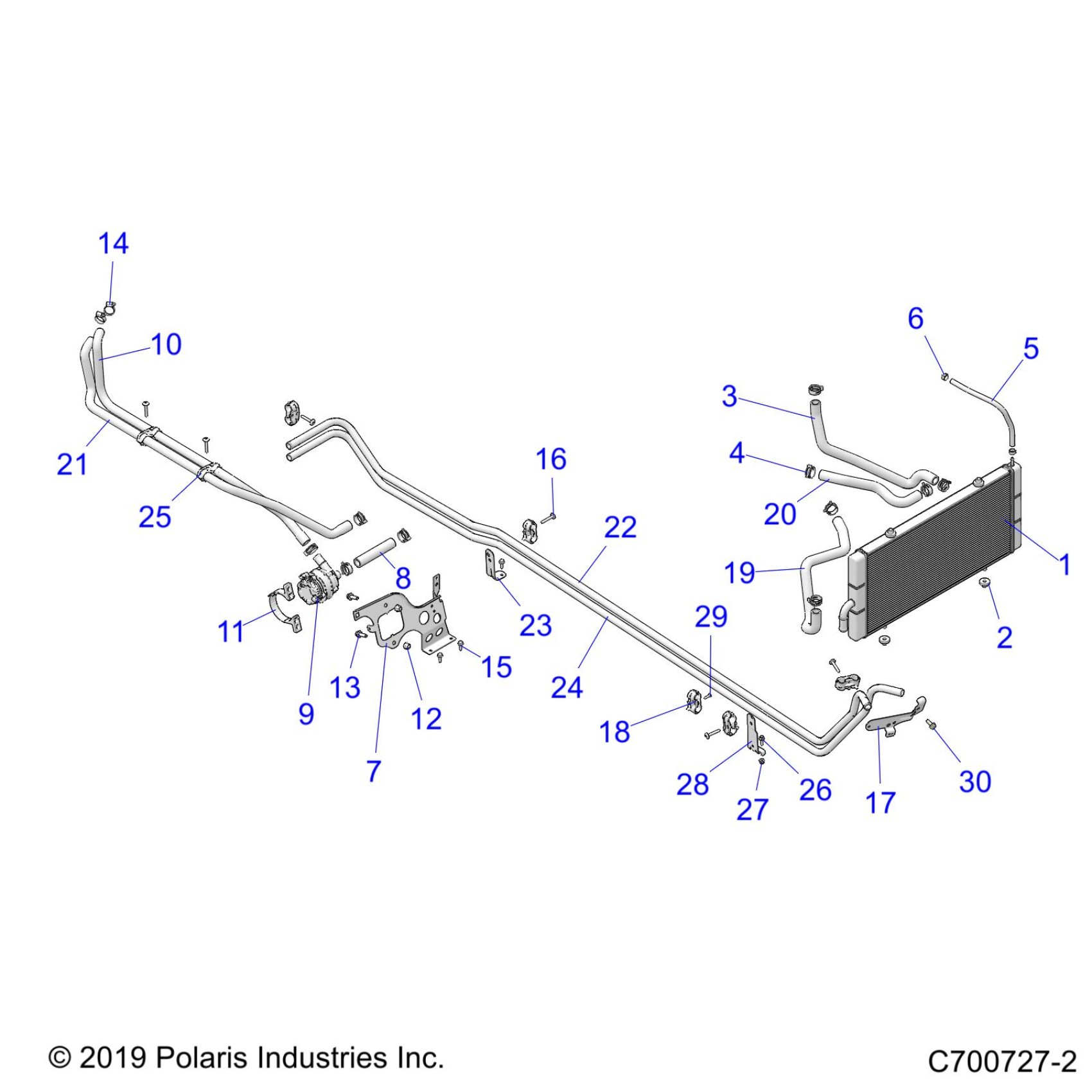

Polaris RZR TURBO S 4 VELOCITY (R02) - Z20P4E92AC/BC/F92AC ENGINE, COOLING, AUX. SYSTEM - Z20P4E92AC/BC/F92AC (C700727-2) Diagram

ASM-RADIATOR,CORE [TO 06/01/20]

1241115

Unavailable

ASM-RADIATOR,CORE [FROM 06/01/20]

1241387

$475.79

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

HOSE-OUT,SURGE TANK TO LTR

5416031

$14.39

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

1/4"SAEJ2002,EPDM HOSE,31 CM

8450120-31

Unavailable

HOSE CLAMP, RED

7080003

$1.49

BRKT-MOUNT,WATER PUMP,BLK

5265138-329

$51.99

HOSE-PUMP INLET, 3/4",REAR

5415326

$11.19

ASM-PUMP,WATER,ELECTRIC

2413045

$404.79

HOSE-INTERCOOL,INLET,3/4",RR

5415324

$43.99

BRKT-MNT,WATER PUMP

5452166

$7.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

BRKT-COOLING TUBE

5264975

Unavailable

BRACKET-COOLANT TUBE,3/4"

5451785

$4.79

HOSE-RADIATOR,3/4",UPPER

5416026

$27.99

HOSE-RADIATOR,3/4",LOWER

5416027

$14.39

HOSE-INTERCOOL,OUTLET,3/4",RR

5415325

$47.99

TUBE-COOLANT,3/4",UPPER,MP

5140833

$83.99

BRKT-COOLANT TUBE,ECOAT

5265051-329

$51.99

TUBE-COOLANT,3/4",LOWER,MP

5140834

$92.39

CLIP-ROUTING,0.75

5454911

$6.39

SCR-HXFL-M6X1.0X20 8.8 RIE

7519121

$3.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49

BRKT-COOLANT TUBE,ECOAT

5268164-329

$31.99

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39
