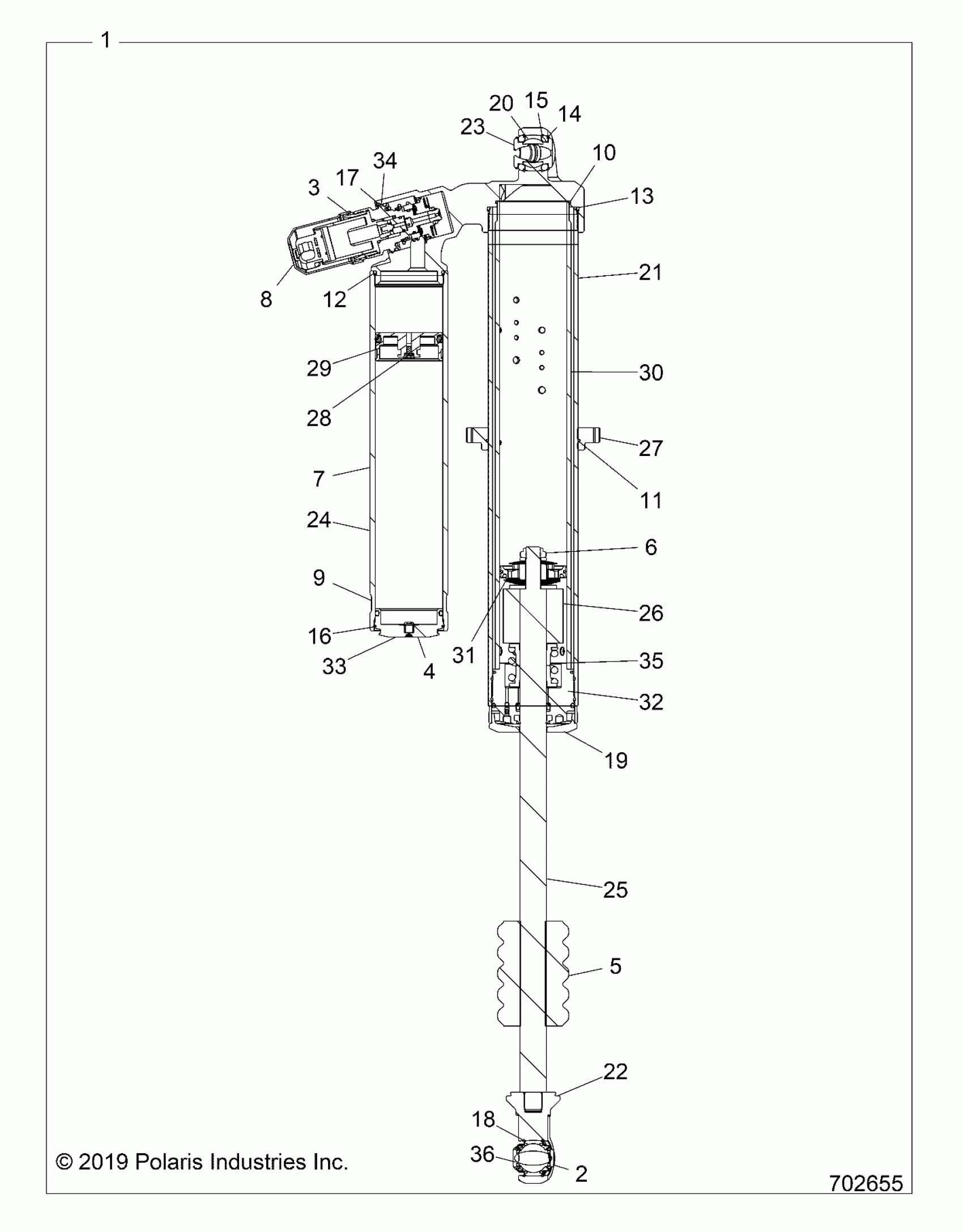

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG SUSPENSION, REAR SHOCK INTERNALS - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (702655) Diagram

#

Description
Price

1

SHOCK-REAR,72,IBPLV,LTD,LH [INCL ALL]

7045408

$1,632.39

1

SHOCK-REAR,72,IBPLV,LTD,RH [INCL ALL]

7045409

$1,632.39

2

-------

-------

Unavailable

3

COVER - LIVE VALVE

1501290

$27.99

4

-------

-------

Unavailable

5

-------

-------

Unavailable

6

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

7

-------

-------

Unavailable

8

DECAL - IRD CVR, LIVE

1501272

$10.39

9

DECAL - BAND

1501273

$11.99

10

SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC

1501069

$8.87

11

-------

-------

Unavailable

12

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

13

SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC

1501070

$8.87

14

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

15

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

16

WIRE, RETAINING RING

1500960

$3.73

17

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

18

RING, RET., WIRE SS

1501292

$3.99

19

BEARING CAP

1501320

$17.59

20

-------

-------

Unavailable

20

-------

-------

Unavailable

21

-------

-------

Unavailable

22

-------

-------

Unavailable

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

24

RESERVOIR: (T) [� 2.250 BORE, 12.000 TLG] AL 6061, THREADED ID, SHORT OD STEP

1501077

$235.54

25

-------

-------

Unavailable

26

-------

-------

Unavailable

27

-------

-------

Unavailable

28

SCREW - BLACK, RES.

1501303

$26.39

29

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

30

-------

-------

Unavailable

31

-------

-------

Unavailable

32

ASM-BEARING

1501324

$118.79

33

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

34

ADJUSTER - DSC HIFLO

1501288

$470.79

35

Spring Hardware Assembly: Negative Spring Guide, � 0.875 Shaft [300 lbs/in]

1501083

$59.99

36

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46
