- RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG
SUSPENSION, FRONT SHOCK INTERNALS - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (702654)

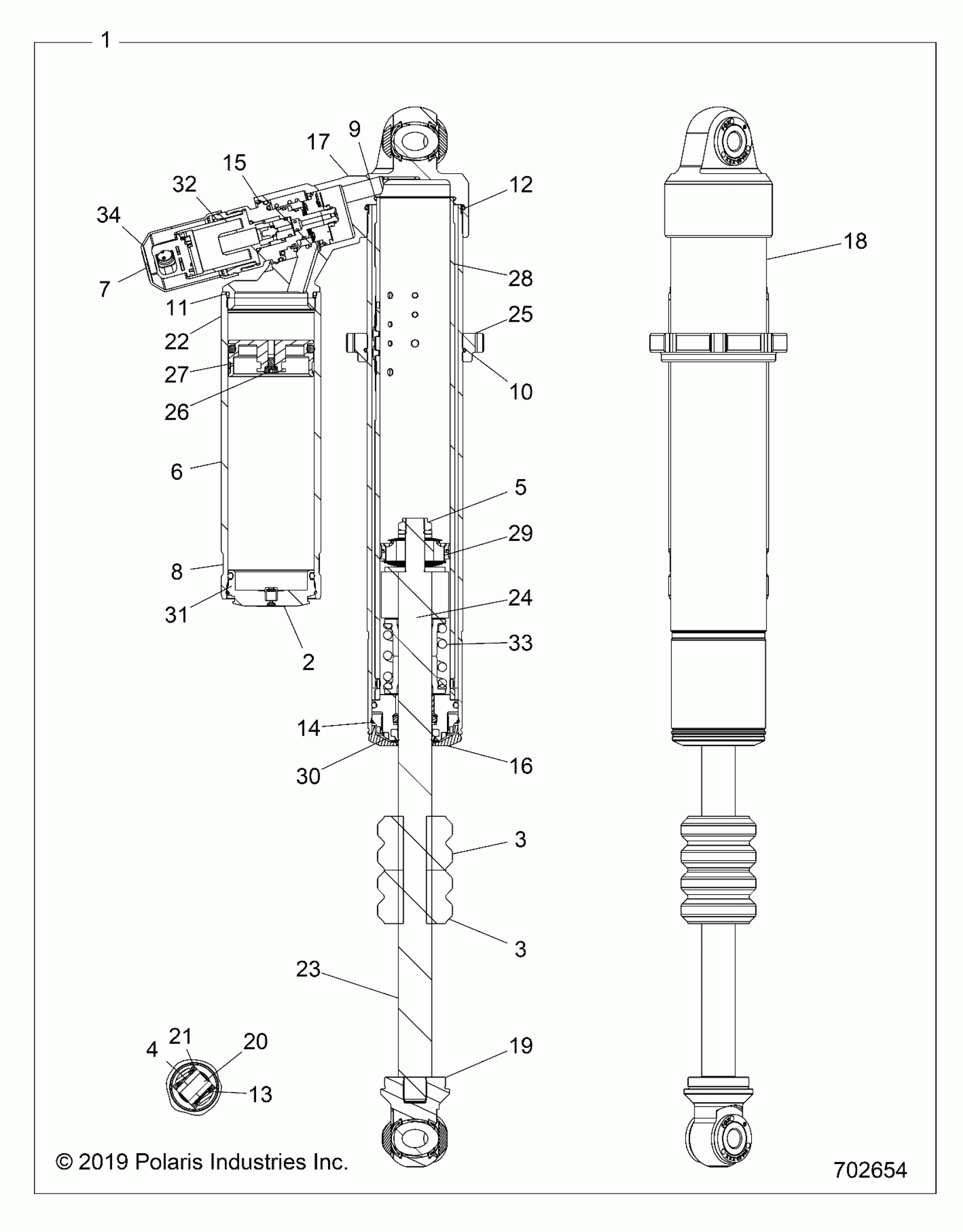

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG SUSPENSION, FRONT SHOCK INTERNALS - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (702654) Diagram
#
Description
Price
1
SHOCK-FRONT,72,IBPLV,LTD,LH [INCL ALL]
7045406
$1,373.39
1
SHOCK-FRONT,72,IBPLV,LTD,RH [INCL ALL]
7045407
$1,373.39
2
-------
-------
Unavailable
3
BUMPER, B/O SHAFT
1501028
$26.39
3
BUMPER, B/O SHAFT
1501028
$26.39
4
BUSHING, EYELET
1501010
$19.99
5
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
1500842
Unavailable
6
VALVE ASM
-------
Unavailable
7
DECAL - IRD CVR, LIVE
1501272
$10.39
8
DECAL - BAND
1501273
$11.99
9
SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC
1501047
$8.87
10
-------
-------
Unavailable
11
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC
1501048
$8.87
12
SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC
1501049
$8.87
13
SEAL - CANNED WEATHER
1501274
$12.79
14
WIRE, RETAINING RING
1500960
$3.73
15
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
$14.21
16
Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II
1501053
$31.10
17
-------
-------
Unavailable
17
-------
-------
Unavailable
18
-------
-------
Unavailable
19
RETAINER SPECIAL
1501327
$43.99
20
-------
-------
Unavailable
21
SPACER - NYLON
1501283
$8.79
22
RESERVOIR
1501093
$95.99
23
-------
-------
Unavailable
24
-------
-------
Unavailable
25
-------
-------
Unavailable
26
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
1500161
Unavailable
27
PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND
1501060
$79.99
28
-------
-------
Unavailable
29
-------
-------
Unavailable
30
-------
-------
Unavailable
31
RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC
1501063
$124.99
32
-------
-------
Unavailable
33
GUIDE, NEGATIVE SPRING
1501179
$101.65
34
COVER - LIVE VALVE
1501290
$27.99
