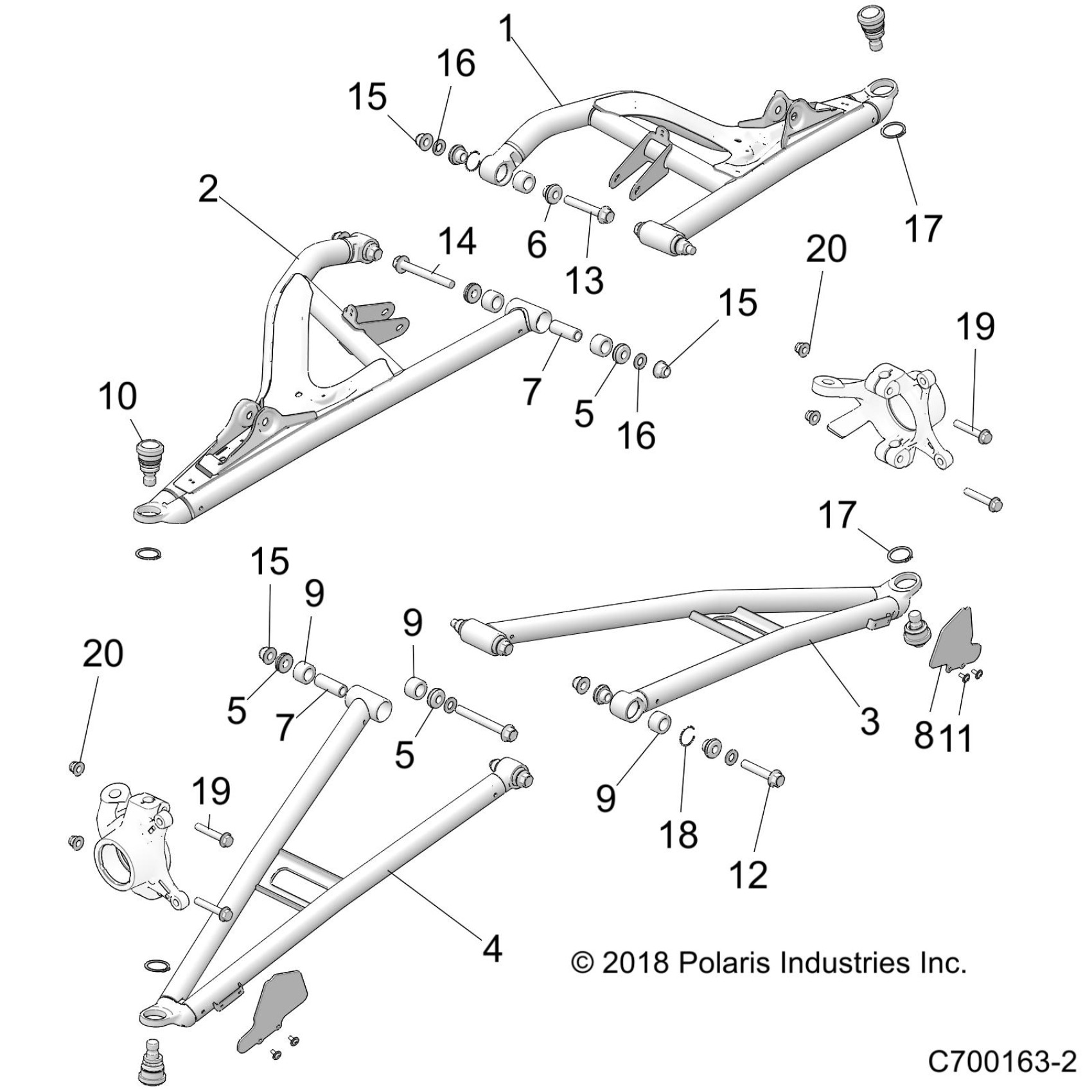

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG SUSPENSION, FRONT CONTROL ARMS - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (C700163-2) Diagram

WELD-CTRL ARM,UPR,FR,LH,72,RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024460-293

Unavailable

WELD-CTRL ARM,UPR,FR,LH,72,BLK [L92AP][L92BP][G92AP]

1024460-458

$406.65

WELD-CTRL ARM,UPR,FR,RH,72,RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024461-293

$406.65

WELD-CTRL ARM,UPR,FR,RH,72,BLK [L92AP][L92BP][G92AP]

1024461-458

$406.65

WELD-CTRL ARM,LWR,FR,LH,72,RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024383-293

Unavailable

WELD-CTRL ARM,LWR,FR,LH,72,BLK [L92AP][L92BP][G92AP]

1024383-458

$275.94

WELD-CTRL ARM,LWR,FR,RH,72,RED [L92AG][L92BG][L92LG][G92AG][G92LG]

1024384-293

$275.94

WELD-CTRL ARM,LWR,FR,RH,72,BLK [L92AP][L92BP][G92AP]

1024384-458

$275.94

ASM-PIVOT CAP,SEALED,M12

1543612

$5.65

ASM-PIVOT CAP,SEALED,M12

1543612

$5.65

ASM-PIVOT CAP,SEALED,M12

1543612

$5.65

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.70

SHAFT-PIVOT,SHORT,M12

5140555

$8.89

SHAFT-PIVOT,SHORT,M12

5140555

$8.89

SHIELD-CV,FRONT,BLK

5438641-070

$3.22

BUSHING-STANDARD,SUSP,M12

5452271

$3.17

BUSHING-STANDARD,SUSP,M12

5452271

$3.17

BUSHING-STANDARD,SUSP,M12

5452271

$3.17

BALL-JOINT,HARDENED,HI-MISALGN [TO 7/3/2023]

7082422

$48.56

BALL-JOINT,HARDENED,HI-MISALGN [FROM 7/3/2023]

7082892

$48.56

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.19

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.17

SCR-HXFL-M12X1.5X80 10.9 ZOD

7520478

$7.14

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.14

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

RING-RTG,DSH-33ST

7710716

$8.08

RING-RTG,DSH-33ST

7710716

$8.08

30MM SPIRAL RING,STEEL

7710869

$3.97

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
