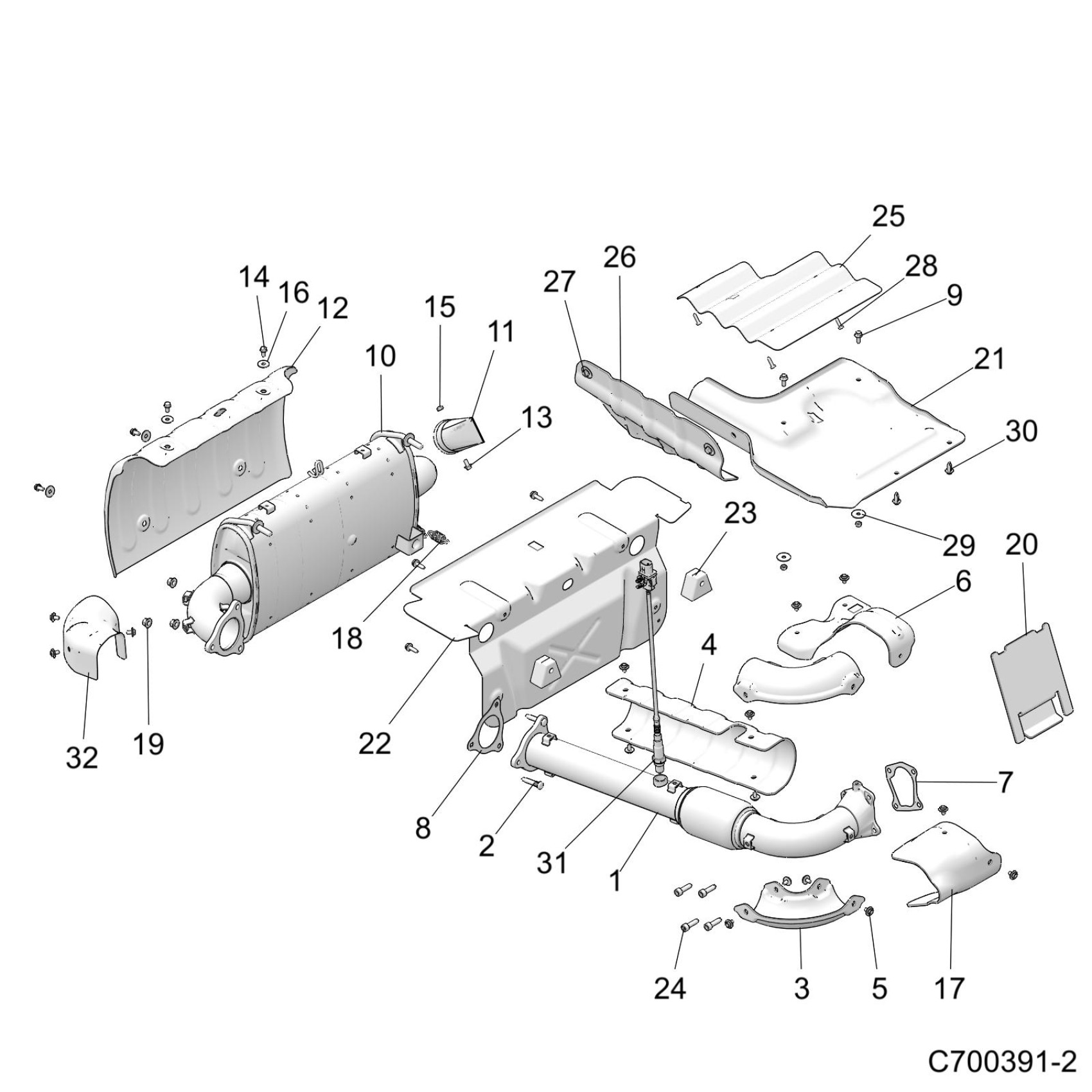

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG ENGINE, EXHAUST SYSTEM - Z20P4L92BG/BP/G92AG/AP/LG (C700391-2) Diagram

ASM-HEADPIPE,TURBO,EVAP [INCL 2-4, QTY 8 OF 5]

1263230

$655.59

STUD-M8X1.25X40 660A SS,LOCK

7520290

$7.19

SHIELD-HEAT,HEADPIPE,FRONT

5264104

$43.99

SHIELD-HEAT,HEADPIPE,RR,INNER

5266196

$43.99

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

SHIELD-HEAT,TURBO,UPPER

5266197

$39.99

GASKET-EXHAUST

5812640

Unavailable

GASKET-EXHAUST,3 BOLT

5814340

Unavailable

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

ASM-SILENCER [INCL QTY 3 OF 5, 11-14,QTY 1 OF 15,16,32]

1263164

$827.19

WELD-SPARK ARRESTOR

1262390

$47.99

SHIELD-SILENCER

5262943

Unavailable

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

SHIELD-HEAT,TURBO,OUTLET

5266199

$39.99

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.99

SHIELD-ACCESS PANEL

5814648

Unavailable

SHIELD-BOX,FRONT

5814245

$43.99

SHIELD-REAR,STAINLESS

5268152

$43.99

MNT-ISOLATOR

5450115

$14.39

SCR-SH-M8X1.25X25 A286,LOCK

7520277

$6.39

SHIELD-FOIL,ACCESS PANEL

5262942

$36.41

SHIELD-ENGINE

5266195

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-10X 5/8 TX PN PLST-243

7518577

$2.39

WASHER-.281X1.00X.051

7556329

$1.49

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

SENSOR-WIDE BAND LAMBDA

2413317

$251.99

SHIELD-SILENCER INLET

5264915

$27.99
