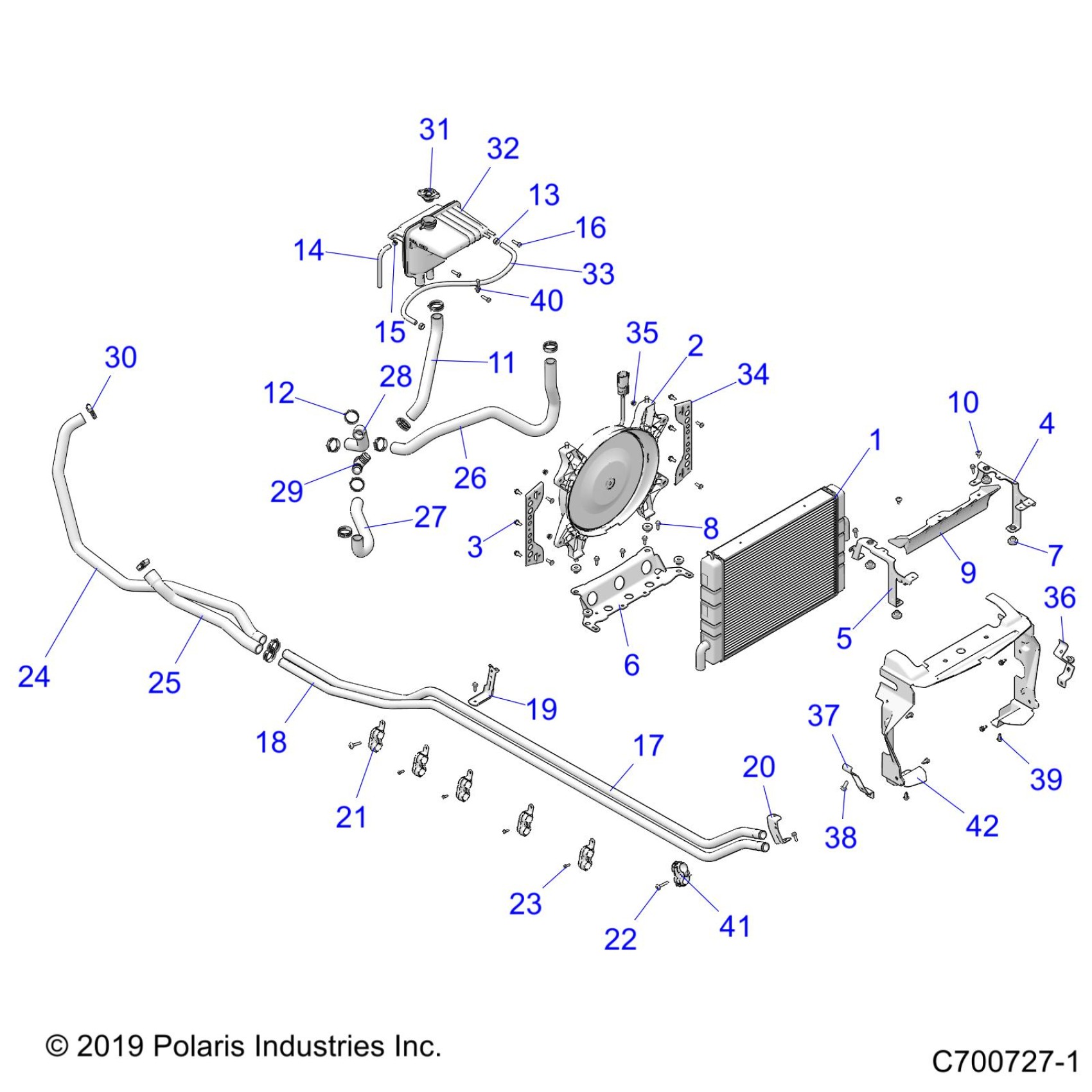

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG ENGINE, COOLING SYSTEM - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (C700727-1) Diagram

#

Description
Price

1

ASM-CORE,RADIATOR

1241117

$660.24

2

ASM-FAN,BRUSHLESS,500W

2414286

$539.99

3

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

4

BRKT-MOUNT,RADIATOR,LH,ECOAT

5263170-329

$36.41

5

BRKT-MOUNT,RADIATOR,RH,ECOAT

5263171-329

$36.41

6

BRKT-MOUNT,RADIATOR,ECOAT

5268338-329

$114.99

7

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

SHROUD-RADIATOR,UPPER

5452630

$20.22

10

SCR-M6X1X16 TR/TX-M

7518936

$3.97

11

HOSE-OUT,SURGE TANK TO TEE

5415443

$36.41

12

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

13

HOSE CLAMP, RED

7080003

$1.19

14

HOSE-IAC,SHORT

5813672

$6.46

15

CLAMP-HOSE,(7/16)

7080236

$1.59

16

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.76

17

TUBE-COOLANT,1",MP

5141784

$54.99

18

TUBE-COOLANT,1",MP

5141785

$54.99

19

BRKT-COOLANT TUBE,BLK

5259433-329

$34.99

20

BRKT-COOLANT TUBE,ECOAT

5265342-329

$59.99

21

BRACKET-COOLANT TUBE

5451221

$8.89

22

SCR-M6X1X40,TR/TX-BLK

7519001

$3.97

23

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

24

HOSE-ENG OUTLET,REAR

5414530

$76.89

25

HOSE-ENG INLET,REAR

5414976

$44.51

26

HOSE-RADIATOR,UPPER

5416028

$56.65

27

HOSE-RADIATOR,LWR,FRONT

5416030

$32.37

28

HOSE-RADIATOR,LWR,REAR

5415446

$32.37

29

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

30

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

31

CAP-PRESSURE

1240300

$40.46

32

WELD-SURGE TANK,DUAL

1240943

$147.24

33

1/4"SAEJ2002,EPDM HOSE,61 CM

8450120-61

$72.84

34

WELD-BRKT-MNT,FAN,ECOAT

1241122-329

$10.51

35

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

36

BRKT-BUMPER MNT,FR,UP,LH,BLK

5264780-329

$54.99

37

BRKT-BUMPER MNT,FR,UP,RH,BLK

5264781-329

$54.99

38

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.38

39

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

40

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

41

CLIP-COOLANT ROUTING

5453767

$5.56

42

SHROUD-RADIATOR

5454422

$85.49
