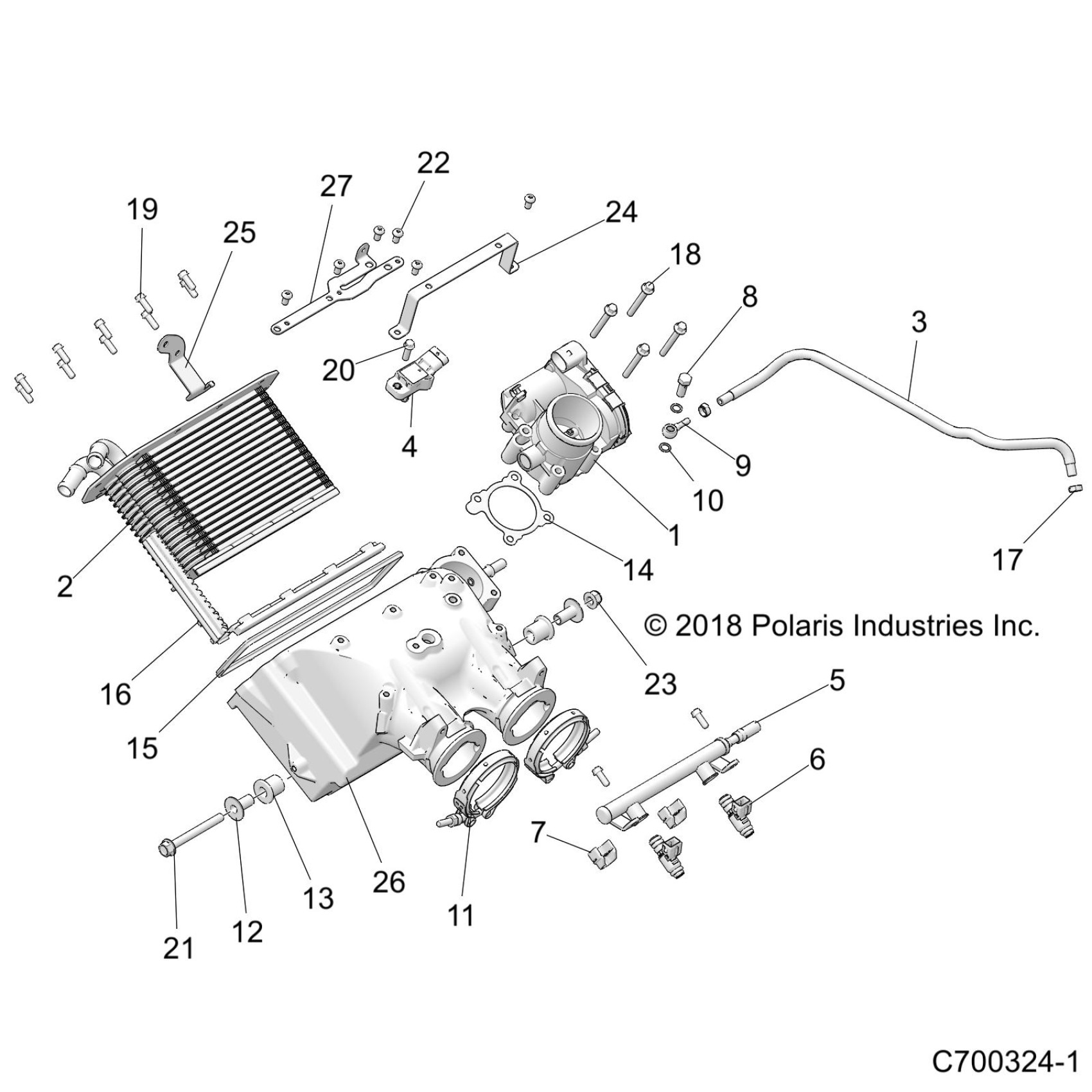

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG ENGINE, AIR INTAKE MANIFOLD - Z20P4L92BG/BP/G92AG/AP/LG (C700324-1) Diagram

#

Description
Price

1

THROTTLE-ETC,46MM

1204455

$495.29

2

CORE-LCAC

1240930

$417.29

3

ASM-HOSE REFERENCE,48CM

1241347

$11.19

4

SENSOR-TMAP,3BAR

2413095

$83.99

5

ASM-RAIL,FUEL,4BAR,NR

2522004

$195.99

6

INJECTOR-FUEL,570G,3.8BAR [INCL. O-RINGS]

2521914

$71.99

6

O-RING,INJECTOR

5417103

$6.15

7

CLIP-INJECTOR,MM

2521515

$9.59

8

BOLT-BANJO,M8X1

2521519

$10.39

9

FITTING-BANJO,M8

2521520

$31.99

10

WASHER-M8,AL

2521527

$4.79

11

CLAMP-VBAND,INTAKE

3022888

$47.99

12

SPACER-BUSHING

3022994

$7.99

13

ISOLATOR

5415637

$2.39

14

GASKET-ETC

5813735

$11.19

15

SEAL-LCAC,TOP

5814277

$11.99

16

SEAL-LCAC,SIDE-BTM

5814370

Unavailable

17

CLAMP-OETIKER,16700005-10.0

7082109

$3.99

18

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

19

SCR-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

20

SCR-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

21

SCR-M8X1.25X75 8.8 HX/FL ZOD

7518955

$3.19

22

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

BRKT-MNT,INJECTOR HARNESS,BLK

5260975-329

$13.59

25

BRKT-MOUNT,FUEL LINE,BLK

5261651-329

$10.39

26

MANIFOLD-MACH,VBAND,EVAP [L92BG][L92BP]

5141984

Unavailable

26

MANIFOLD-MACH,VBAND [G92AG][G92AP][G92LG]

5140096

$243.99

27

BRACKET, HARNESS

5262111

$27.99
