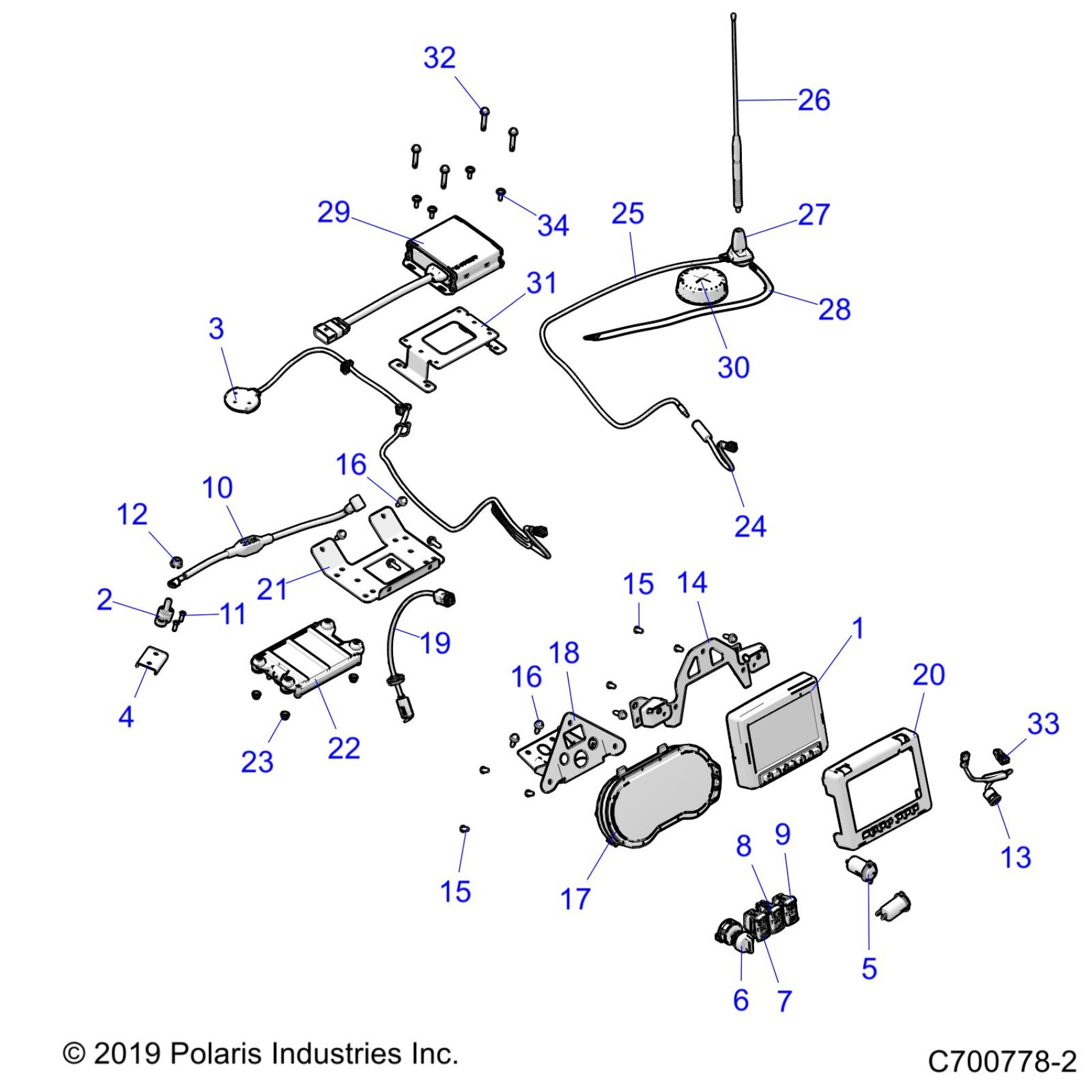

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (C700778-2) Diagram

ASM-DISPLAY,DIG,P7,PRG

3280899

Unavailable

BLOCK-JUNCTION

4011615

$27.99

ANTENNA,GPS,EXT

4017533

$83.59

BRKT-MTG,B+ POST,BLK

5264769-329

$11.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

SWITCH-KEY,4 POSITION,MT SLV

4016058

Unavailable

SWITCH-MODE,LV

4018546

$83.99

SWITCH-HEADLIGHT,LASER

4017133

$75.99

SWITCH-AWD,LASER

4017134

$55.99

CABLE-JUMPER,ACCY,FUSED

4017147

Unavailable

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.49

NUT-FLANGED,3/8-16 NYLON

7547180

$2.39

CAM-MIRROR,CAMERA,APX

4015873

Unavailable

BRKT-RZR 7" DISPLAY,BLK

5266577-329

$51.99

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

ASM-C4,RZR,RGR,GNRL,256K

3280863

Unavailable

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$61.59

HARNESS,USB,RC

2414710

Unavailable

BEZEL-GAUGE,7",ORV,7 BTN,BLK

5455574-070

$14.39

BRKT-SCM,AMP,ECOAT [TO 02/24/20]

5266963-329

$35.99

BRKT-SCM,AMP,BLK [FROM 02/24/20]

5266963-458

$35.99

SCM-PROGRAMMED,LV,72,MP

4017140

$827.63

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.39

HARNESS-AM/FM ADAPTER

2414431

$71.99

ASM-HARNESS,AM/FM ANTENNA,1050

2414727

$47.99

ANTENNA-MAST,AM/FM,SHORT

4014849

$111.99

MOUNT-ANTENNA,90-DEG ADJ,NUT

4016695

Unavailable

STRAP-GROUND,ANTENNA,BRAIDED

4016696

$31.99

AMP,AUDIO,DASH MOUNT,2 CH

4017614

$330.21

ANTENNA,V2V

4018713

$111.99

BRKT-SCM,AMP,ECOAT

5268220-329

$35.99

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$1.49

CLIP-EDGE,1-3MM THICKNESS

7082427

$5.59

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49
