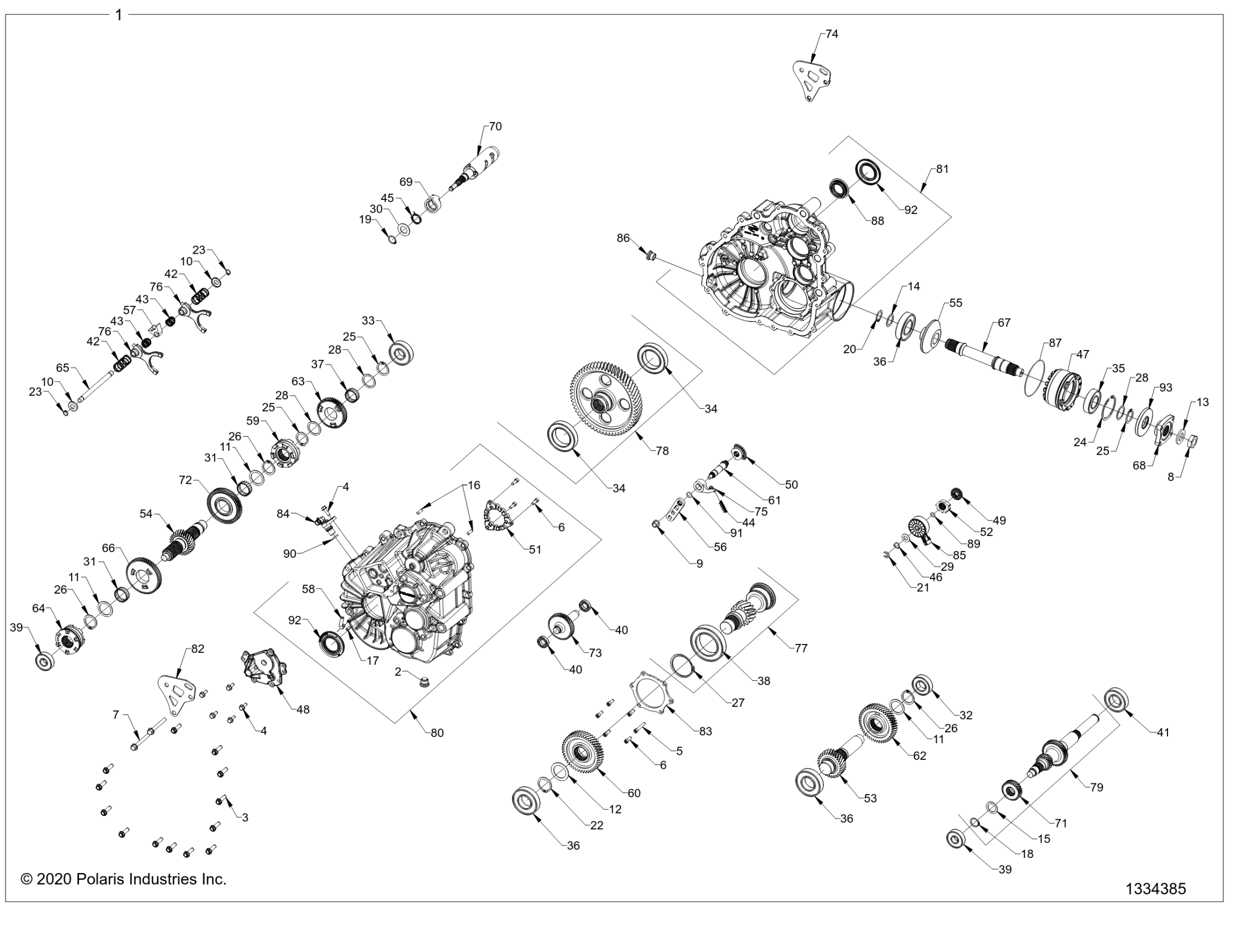

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG DRIVE TRAIN, MAIN GEARCASE INTERNALS (FROM 3/2/2020) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE [INCL ALL]

1334386

$3,799.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

5

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.64

8

NUT, JAM M20 X 1.5

3235803

$7.94

9

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

10

WASHER-CUP

3234091

$9.52

10

WASHER-CUP

3234091

$9.52

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

12

WASHER-35.6X57X1.5(115289)

3235212

$13.49

13

WASHER, LOCKING 21.4 X 39 x 3.40

3235804

$12.34

14

WASHER 25.26 X 34 X 2

3235805

$7.59

15

WASHER 22.70 X 32.0 X 1.5

3235991

$12.34

16

PIN, DOWEL 6 X 20

3234330

$7.14

17

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

18

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

19

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

20

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

21

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

22

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

24

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.52

25

RING, RETAINING,

3234205

$11.11

25

RING, RETAINING,

3234205

$11.11

25

RING, RETAINING,

3234205

$11.11

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

27

RING-RETAIN,VSH-237(130298)

3235216

$10.32

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

30

SPACER, 19.4 X 34.0 X 2.0

3235883

$28.56

31

BEARING, NEEDLE

3233014

$43.65

31

BEARING, NEEDLE

3233014

$43.65

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

33

BEARING

3233020

$47.62

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

35

BEARING-BALL 6206 C3 30X62X16

3233790

$27.78

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

37

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.75

38

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.52

39

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

39

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

41

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

3235496

$37.99

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

43

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

43

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

44

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

45

SPRING, TORSION

3235885

$20.22

46

WASHER-SPRING,210393

3235327

$9.52

47

TUBE, SNORKEL MACH

3235947

$105.22

48

COVER, SECTOR GEARS MACH

3235809

$47.49

49

GEAR, SECTOR, 16T

3233839

$36.41

50

GEAR-SECTOR,31T

3233832

$36.41

51

PLATE, PARK, 12 FACE

3235456

$40.46

52

STAR, DETENT,

3235982

$36.41

53

SHAFT-IDLER,29T(285803)

3235223

$128.24

54

SHAFT-REVERSE,27T(285878)

3235380

$246.89

55

GEAR, 19T SNORKEL

3235812

$133.56

56

BELLCRANK, 92 DEGREE

3235227

$28.32

57

COLLAR-SHIFT

3234073

$31.75

58

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

59

ENGAGEMENT DOG,6-FACE(352857)

3235233

$129.51

60

GEAR-46T,STAGE 3(352872)

3235236

$128.24

61

SHAFT-SHIFT(352973)

3235238

$42.74

62

GEAR, 46T, STAGE 2

3235381

$156.74

63

GEAR, 52T

3235411

$149.75

64

SHIFT DOG, PARK/LOW (353357)

3235457

$145.70

65

RAIL-SHIFT SHAFT(353622)

3235542

$28.32

66

GEAR, LOW, 61T

3235561

$99.74

67

SHAFT, FRONT OUTPUT

3235815

$161.89

68

COUPLER

3235816

$44.51

69

CAM, PARK

3235983

$183.95

70

DRUM, SHIFT MACH,

3235984

$279.27

71

GEAR, LOW 31T

3235990

$114.99

72

GEAR, REVERSE 56T

3235985

$101.17

73

GEAR, IDLER 39T

3235986

$113.32

74

WELDMENT, REAR MOUNT BRACKET

3236144

$40.46

75

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

76

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

76

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

77

SUBASSEMBLY, PINION

3235820

$432.24

78

SUBASSEMBLY, OUTPUT

3235847

$322.99

79

SUBASSEMBLY, INPUT 43T/22T/31T

3235988

$246.99

80

SUBASSEMBLY, RH CASE

3235992

$432.24

81

SUBASSEMBLY, LH CASE

3236639

$559.99

82

BRACKET, REAR MOUNT

3236145

$40.46

83

COVER, BEARING CENTER DRIVE

3235823

$48.56

84

SENSOR-SPEED,TRANS

4013908

$109.27

85

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$113.32

86

PLUG, M18 X 1.5

3234755

$27.78

87

O-RING 3.609 I.D. X 0.139

3235948

$7.59

88

SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE, 30 X 47 X9

3236551

$68.79

89

O-RING, -012 VITON

3233836

$6.87

90

O-RING, -113 VITON

3233840

$11.32

91

O-RING, -014 VITON

3233828

$6.87

92

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

92

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

93

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$66.49
