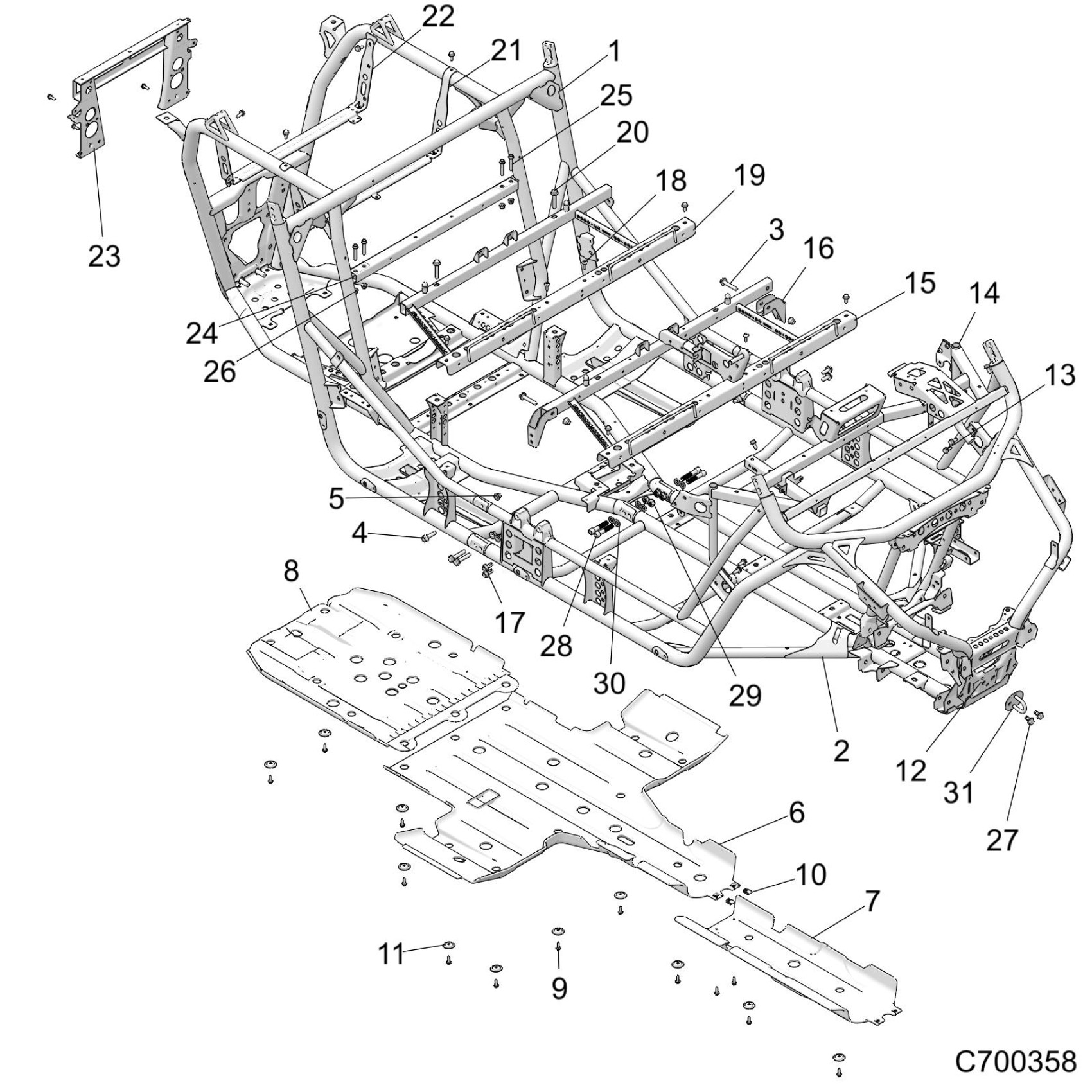

Polaris RZR TURBO S 4 (R04) - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG CHASSIS, MAIN FRAME AND SKID PLATES - Z20P4L92AG/AP/BG/BP/LG/G92AG/AP/LG (C700358) Diagram

#

Description
Price

1

WELD-MAIN FRAME,72,BLK

1024496-458

$3,000.79

1

WELD-MAIN FRAME,72,BLK

1024496-458

$3,000.79

2

WELD-MAINFRAME,FRT,ISO,MP,72,B

1023641-458

$2,503.59

3

SCREW

7519285

Unavailable

4

SCREW

7519332

$5.59

5

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

6

PLATE-SKID,BLK

5456432-070

$239.99

7

PLATE, SKID, BLACK

5450556-070

$147.99

8

PLATE-SKID,REAR,BLK

5456435-070

Unavailable

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

10

NUT, U-TYPE

7547674

$1.49

11

WASHER-SKID PLATE

7556065

$4.79

12

BRKT-TOW HOOK BACKER,BLK

5264362-458

$55.99

13

BOLT

7518555

Unavailable

14

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

15

BASE, SEAT, MP, BLACK

1020572-329

$183.99

16

BRACKET, SEAT SUPPORT, FRONT, MP, BLACK

5258097-329

$51.99

17

SCREW

7518934

$3.99

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

19

BASE, SEAT, REAR, BLACK

1019777-329

$223.99

20

BOLT

7518474

$4.79

21

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

22

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

23

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

24

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

25

SCREW

7516732

$1.59

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

27

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

28

SCR-SH-M12X1.5X60 12.9 ZFB

7521020

$7.19

29

NUT-HEX-M12X1.5 10 SPL

7547958

$6.39

30

WSHR-22X13X3 ZFB HRD

7557160

$3.19

31

WELD-TOW HOOK,BLK

1020619-458

$107.99
