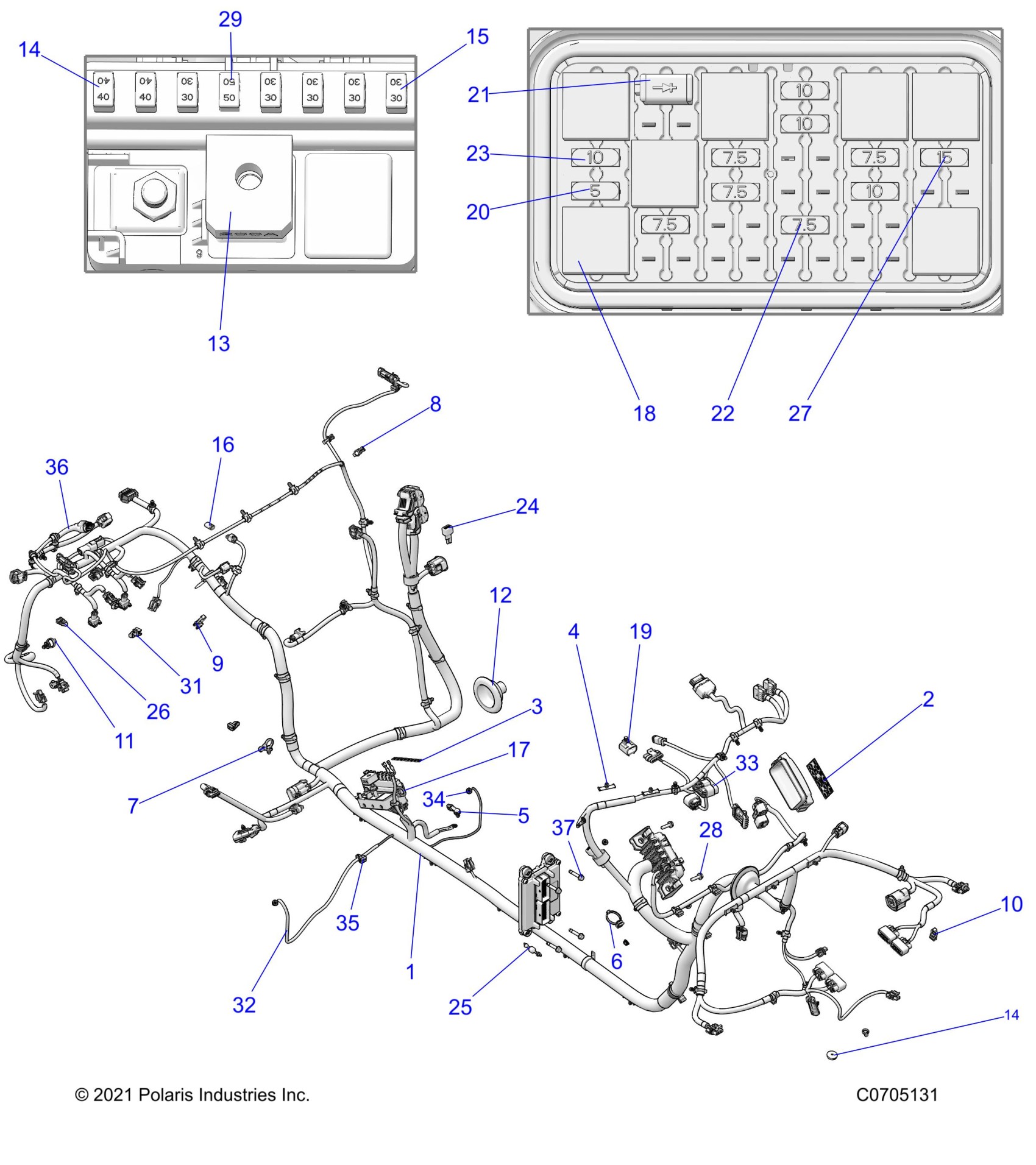

Polaris RZR TURBO R4 PREMIUM RC (R01) - Z23G4V92AL/BL ELECTRICAL, WIRE HARNESS, CHASSIS - Z23G4V92AL/BL (C0705131) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,T,125X74 [INCL. 2-27, 29-35]

2415676

$1,849.99

2

LABEL-FUSE BOX

7194198

Unavailable

3

LABEL-PDM,RZR

7194199

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

6

CLIP-EDGE,3-6MM THICKNESS

7082399

$6.99

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

8

CLIP, EDGE, HARNESS

7081890

$10.32

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

12

GROMMET - 65 MM, BLK

5813954

$8.99

13

FUSE-ZCASE, 200A

4018415-200

Unavailable

14

FUSE-MCASE,40A

4018414-40

$6.46

14

FUSE-MCASE,40A

4018414-40

$6.46

15

FUSE-MCASE,SLOTTED,30A

4018414-30

$8.08

16

CAP EVAP CONNECTOR

4018066

$4.03

17

FUSE-PDM

4017598

$69.99

18

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

19

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

20

FUSE-5A,MINI BLADE

4011652

$11.32

21

DIODE-6AMP

4011474

$44.51

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

23

FUSE-IGNITION,10 AMP

2434016

$5.65

24

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

25

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

26

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

27

FUSE-15AMP,MINI BLADE

4010859

$8.08

28

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.19

29

FUSE-MCASE,50A

4018414-50

$11.54

31

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

32

LED - PANEL MNT, 12V, BLUE

2413217

$52.60

33

CAP-EVAP CONNECTOR

4018655

$4.03

34

CLIP - ROUTING, DIN BOX

7082020

$5.56

35

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

36

HARN-TMAP,505MM

2416468

$53.24

37

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.35
