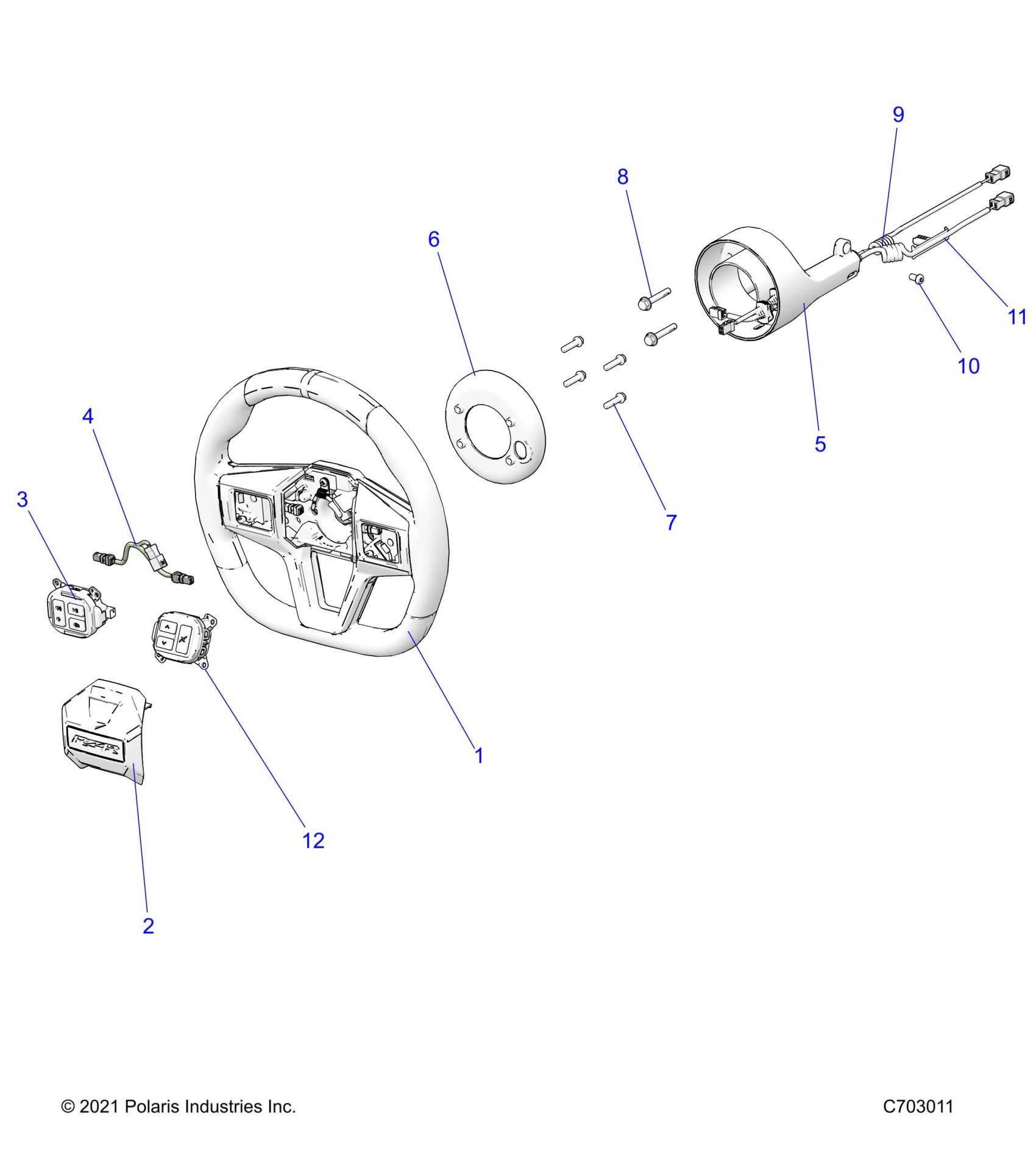

Polaris RZR TURBO R ULTIMATE (R01) - Z23GAD92AL/92BL/AE/BE STEERING, WHEEL, PREMIUM - Z23GAD92A/92B (C703011) Diagram

#

Description

Price

1

WHEEL-STEERING,13"

1824823

$426.79

2

CAP-STEERING WHEEL,BASE,BLK

5456146-070

$23.99

3

SWITCH-MODULE,STEER WHEEL,LH [TO 01/09/2023]

4019322

Unavailable

3

SWITCH-ASSY,SWC,250K,LH [FROM 01/09/2023]

4081086

$224.39

4

HARNESS-STEERING WHEEL

2414689

$83.99

5

GUIDE-COLUMN HARNESS

5455733

$35.99

6

COVER-COLUMN HARNESS

5455734

$8.79

7

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

8

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$1.49

9

ASM-COIL,CORD,DRUM

2414807

$179.73

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

CLIP-WELD STUD,5MM,TAPE-ON

7082493

$3.19

12

SWITCH-ASSY,SWC,250K,RH

4081087

$241.99
