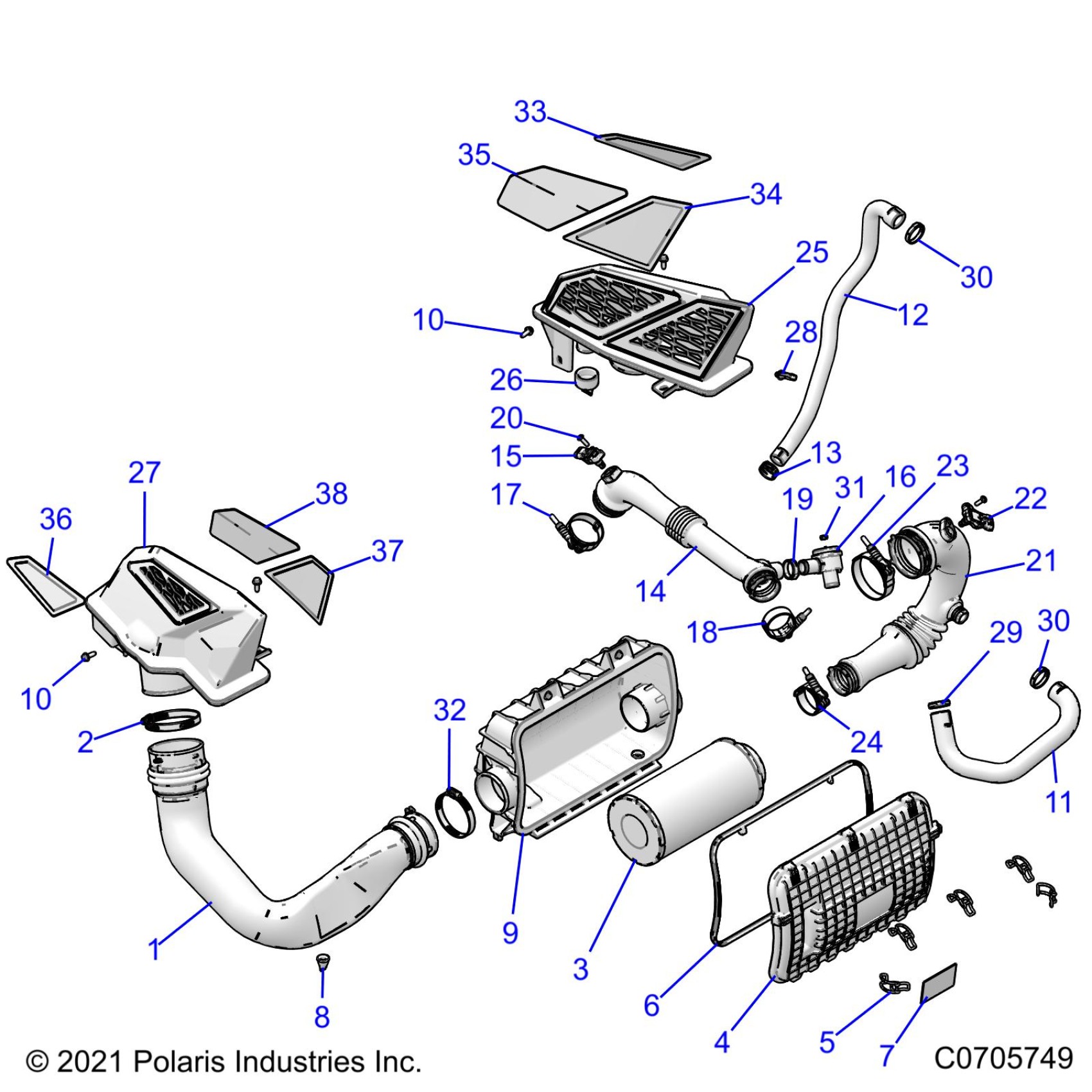

Polaris RZR TURBO R ULTIMATE (R01) - Z23GAD92AL/92BL/AE/BE ENGINE, AIR INTAKE SYSTEM - Z23GAD92A/92B (C0705749) Diagram

#

Description
Price

1

ASM-DUCT,AIRBOX,IN

1241537

$83.99

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

3

ASM-FILTER

1241084

$35.99

3

K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit

2882234

$59.99

4

ASM-AIRBOX COVER [INCL. 5-7]

1241468

$87.99

5

ASM-AIRBOX CLIP

7082596

Unavailable

6

SEAL-AIRBOX

5814549

$35.99

7

DECAL-CAUT.AIR BOX

7182652

Unavailable

8

PLUG-DRAIN

5414472

$5.59

9

AIRBOX

5457123

$99.99

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

11

HOSE-VENT,BOV

5415474

$91.99

12

HOSE-VENT,ENG

5416756

$51.99

13

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

14

ASM-DUCT,CHARGE AIR

1244623

$187.99

15

SENSOR-TMAP,3BAR

2413095

$83.99

16

VALVE-DUMP,TURBO

3024035

$39.99

17

CLAMP-HOSE T-BOLT,66.3 DIA

7082091

$35.99

18

CLAMP-HOSE T-BOLT,56 DIA

7082896

$13.59

19

CLAMP-OETIKER,16704932-32

7082095

$5.59

20

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.99

21

ASM-DUCT,INTAKE AIR

1241308

$199.99

22

SENSOR-TMAP DSS3-TF

2411528

$93.08

23

CLAMP-HOSE T-BOLT,87.3 DIA

7082093

$31.99

24

CLAMP-HOSE T-BOLT,56 DIA

7082485

$13.59

25

ASM-BEZEL,INTAKE,LH

2637232

$111.99

26

BOOT-PURGE VALVE,AIR BOX

5417149

$4.84

27

ASM-BEZEL,INTAKE,RH

2637233

$111.99

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

29

CLAMP-OETIKER, 16704965-36.1

7082107

$4.79

30

CLAMP-OETIKER,16702031-38.5

7082108

$5.59

30

CLAMP-OETIKER,16702031-38.5

7082108

$5.59

31

CLAMP-OETIKER,16700005-10.0

7082109

$3.99

32

CLAMP-HOSE SLOTTED,84-96 DIA

7082805

$5.59

33

SCREEN-INTAKE,OUTER,LH

5456087

$23.99

34

SCREEN-INTAKE,INNER,FRONT,LH

5456089

$43.99

35

SCREEN-INTAKE,INNER,REAR,LH

5456091

$43.99

36

SCREEN-INTAKE,OUTER,RH

5456088

$23.99

37

SCREEN-INTAKE,INNER,FRONT,RH

5456090

$43.99

38

SCREEN-INTAKE,INNER,REAR,RH

5456092

$43.99
