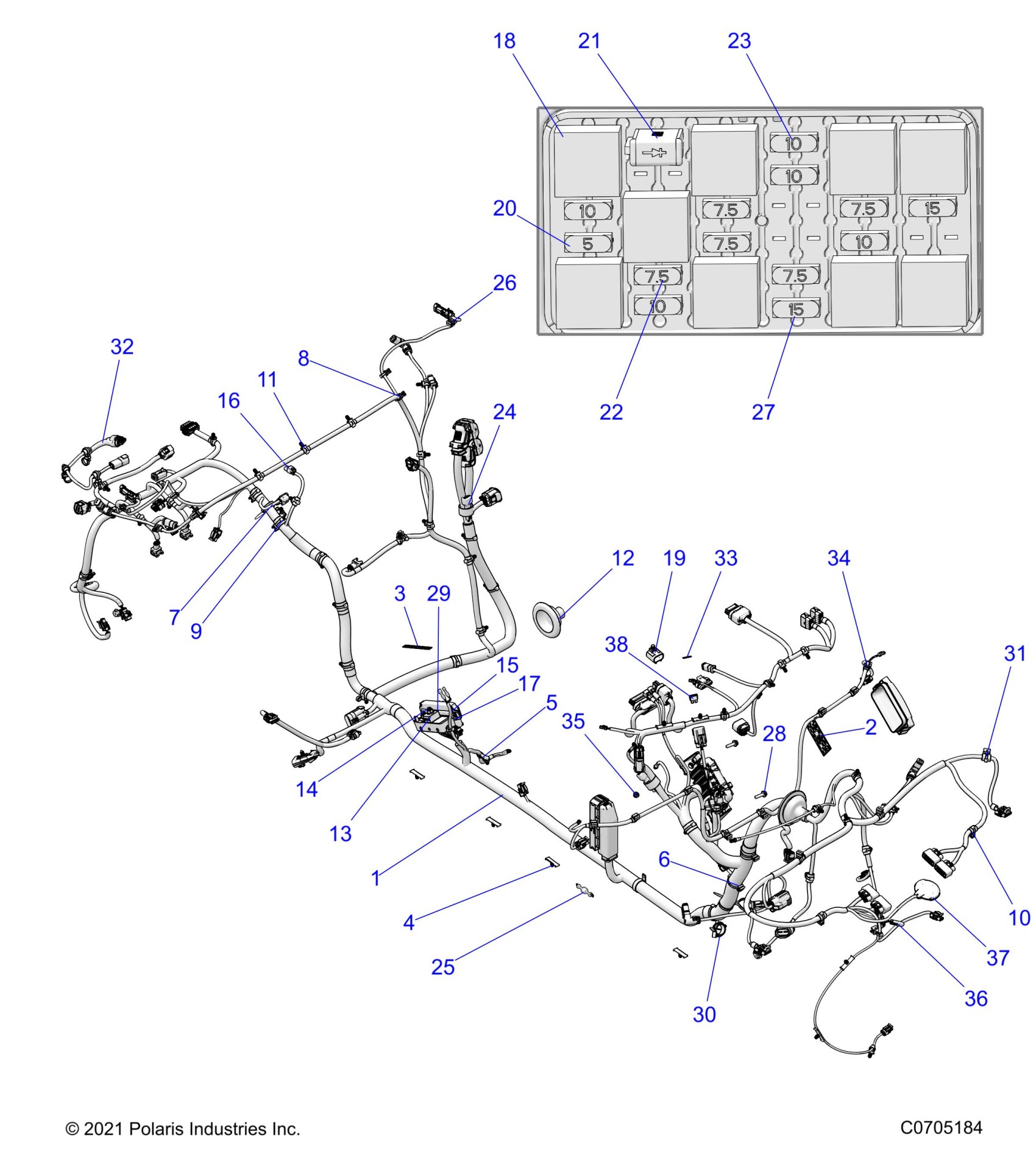

Polaris RZR TURBO R ULTIMATE (R01) - Z23GAD92AL/92BL/AE/BE ELECTRICAL, WIRE HARNESS, CHASSIS - Z23GAD92A/92B (C0705184) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,96X74,DX [INCL. 2-27, 29-31,33-39] [TO 01/09/2023]

2415800

Unavailable

1

HARN-CHASSIS,RZR,T,96X74,DX [INCL. 2-27, 29-31,33-39] [FROM 01/09/2023]

2416638

$1,456.39

2

LABEL-FUSE BOX

7194198

Unavailable

3

LABEL-PDM,RZR

7194199

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

8

CLIP, EDGE, HARNESS

7081890

$10.39

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

GROMMET - 65 MM, BLK

5813954

$7.19

13

FUSE-ZCASE, 200A

4018415-200

$37.39

14

FUSE-MCASE,40A

4018414-40

$5.59

15

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

16

CAP EVAP CONNECTOR

4018066

$3.99

17

FUSE-PDM

4017598

$57.19

18

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

19

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

20

FUSE-5A,MINI BLADE

4011652

Unavailable

21

DIODE-6AMP

4011474

$40.46

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

23

FUSE-IGNITION,10 AMP

2434016

$4.79

24

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

25

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

26

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

27

FUSE-15AMP,MINI BLADE

4010859

$7.19

28

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

29

FUSE-MCASE,50A

4018414-50

$9.59

30

CLIP, OMEGA, CABLE

7082343

$3.73

31

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

32

HARN-TMAP,505MM

2416468

$39.99

33

LABEL-AMP

7193569

Unavailable

34

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

35

CLIP - ROUTING, DIN BOX

7082020

$5.59

36

CAP - VINYL, 125X375, BLACK

5438230

$5.59

37

ANTENNA,GPS,EXT

4018662

$111.99

38

FUSE-ATC 30 AMP

4017557

$35.99
