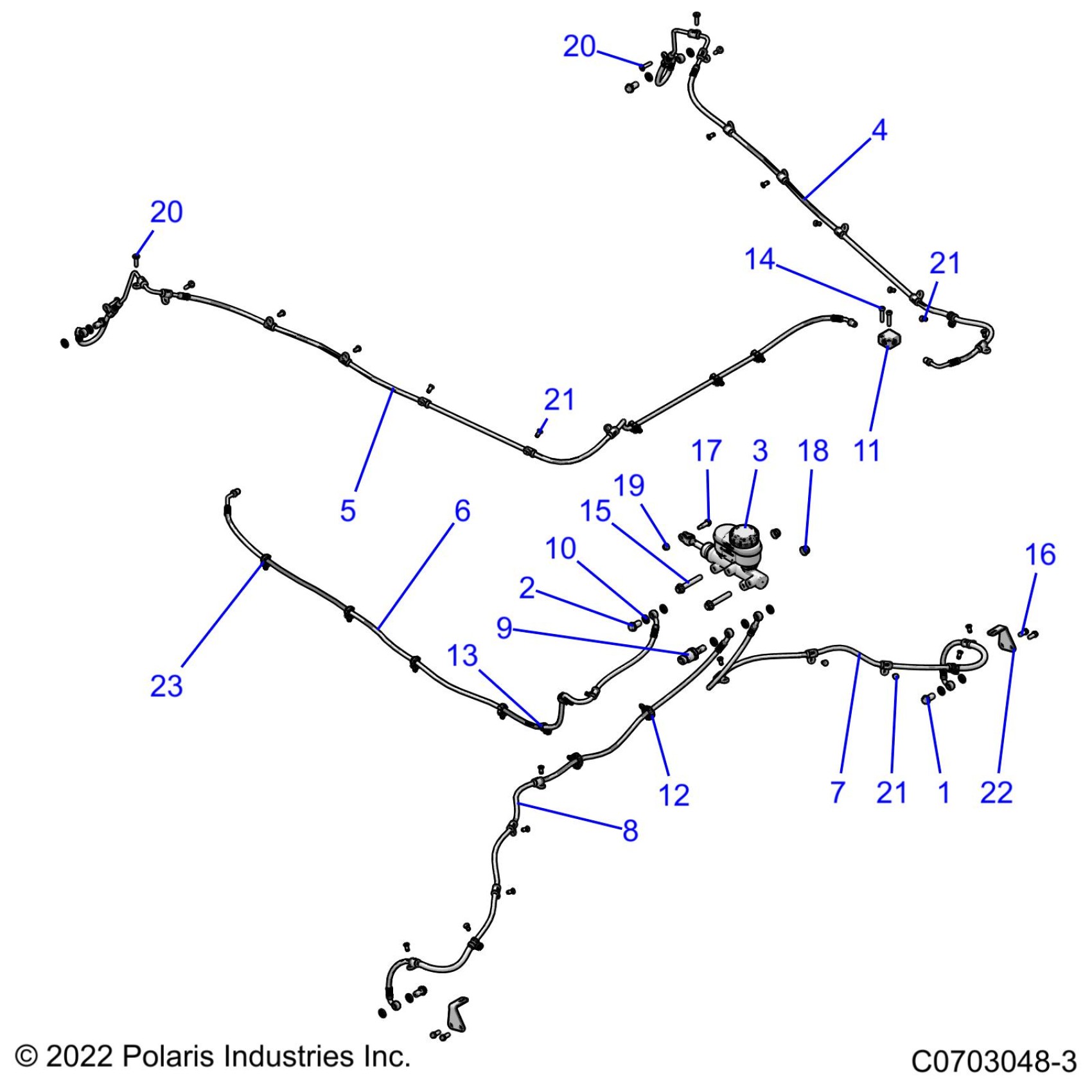

Polaris RZR TURBO R ULTIMATE (R01) - Z23GAD92AL/92BL/AE/BE BRAKES, BRAKE LINES AND MASTER CYLINDER - Z23GAD92A/92B (C0703048-3) Diagram

#

Description
Price

1

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

ASM-TANDEM MASTER CYL,21MM

1913295

$111.11

4

LINE-BRK,RL

1913980

$116.17

5

LINE-BRK,RR

1913981

$116.17

6

LINE-BRK,MCT

1914230

$97.13

7

LINE-BRK,FL

1913937

$99.74

8

LINE-BRK,FR

1913938

$99.74

9

SWITCH-BRK, M10X1.25, DBL, SEALED

4014262

$99.74

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.84

11

FITTING-TEE,BRAKE

7052293

$59.52

12

Clip, Rosebud

4020149

$6.35

13

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.76

14

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.76

15

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.97

16

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.97

17

BOLT,M5X0.8X10,16.5 SHLD

7521227

$3.17

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.17

20

RIVET-POP 3/16(.251-.375)-ST-B

7621433

$1.19

20

RIVET-POP 3/16(.251-.375)-ST-B

7621433

$1.19

21

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

21

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

21

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

22

BRKT-HOSE,BRAKE,KNUCKLE,BLK

5272111-458

$48.56

23

CLIP-FIR TREE,HEAT-STAB

7662429

$5.56
