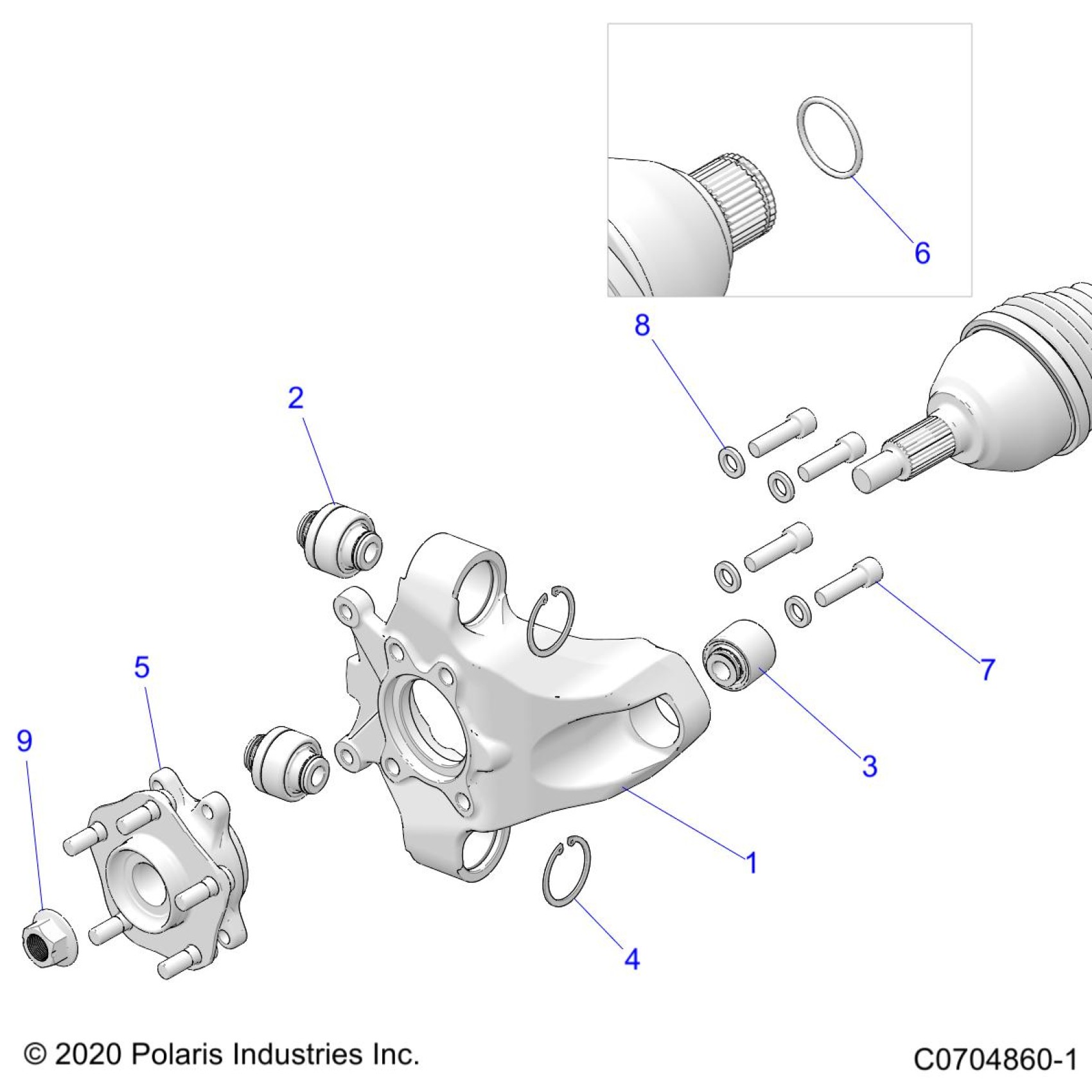

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL SUSPENSION, REAR CARRIER AND HUB - Z23GAE92A/92B (C0704860-1) Diagram

#

Description

Price

1

ASM REAR KNUCKLE LH [INCL. 2-4]

1544548

$394.39

1

ASM REAR KNUCKLE RACE LH [RACE/HD OPTION]

1545109

$402.20

1

ASM REAR KNUCKLE RH [INCL. 2-4]

1544549

$394.39

1

ASM REAR KNUCKLE RACE RH [RACE/HD OPTION]

1545110

$402.20

2

BEARING-SPHERICAL, M14,47X55

7082583

$23.99

3

BEARING-SPHERICAL, M14,40X44

7082584

$35.99

4

RING-SNAP,DIN472,47X1.75MM

7710947

$3.99

5

ASM-UNITIZED HUB 5X4.5

1525346

$159.99

6

SEAL-O-RING,2-122

3610342

$3.19

7

SCR-SH-M12X1.25X40 12.9 PTCH

7521356

$9.59

8

NUT-M20X1.5,FLG-LCK,ZINC,8.8

7548051

$11.21

9

WSHR-22X13X3 ZFB HRD

7557160

$3.19
