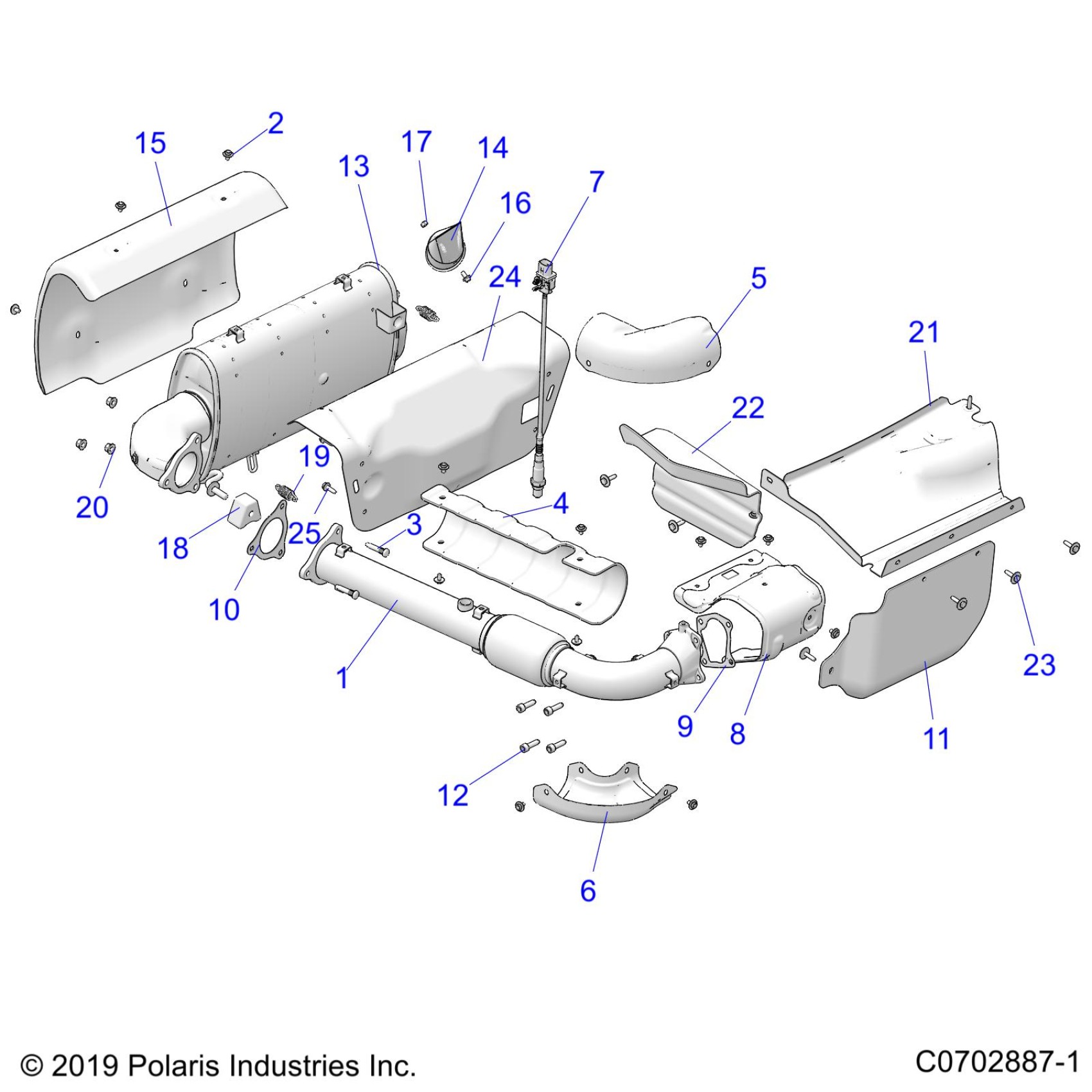

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL ENGINE, EXHAUST SYSTEM - Z23GAE92A/92B (C0702887-1) Diagram

ASM-HEADPIPE,TURBO [INCL. QTY 8 OF 2,3-6]

1263282

$655.59

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

Unavailable

STUD-M8X1.25X40 660A SS,LOCK

7520290

$7.19

SHIELD-HEAT,HEADPIPE,RR,INNER

5266196

$43.99

SHIELD-HEAT,HEADPIPE,FRONT

5266709

$83.99

SHIELD-HEAT,HEADPIPE,FRT,LOWER

5266760

$63.99

SENSOR-WIDE BAND LAMBDA

2413317

$251.99

SHIELD-HEAT,TURBO,UPPER

5268730

$83.99

GASKET-EXHAUST

5814964

$69.99

GASKET-EXHAUST,3 BOLT

5814963

Unavailable

SHIELD-REAR CLOSEOFF

5814784

$67.99

SCR-SH-M8X1.25X25 A286,LOCK

7520277

$6.39

ASM-SILENCER [INCL. QTY 7 of 2, 14-17] [TO 01/09/2023]

1263558

$835.99

ASM-SILENCER [INCL. QTY 7 OF 2, 14-17] [FROM 01/09/2023]

1263802

$783.19

WELD-SPARK ARRESTOR

1262390

$47.99

SHIELD-SILENCER

5266648

$39.99

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

MNT-ISOLATOR

5417101

$11.19

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.99

SHIELD-BOX,FRONT

5814783

$55.99

SHIELD-ENGINE [TO 01/09/2023]

5814785

$55.99

SHIELD-HEAT,ENGINE [FROM 01/09/2023]

5815350

$55.99

SCR-HH-M6X1.0X25,ZPB SEMS

7520964

$3.19

SHIELD-REAR,AL

5272328

$47.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
