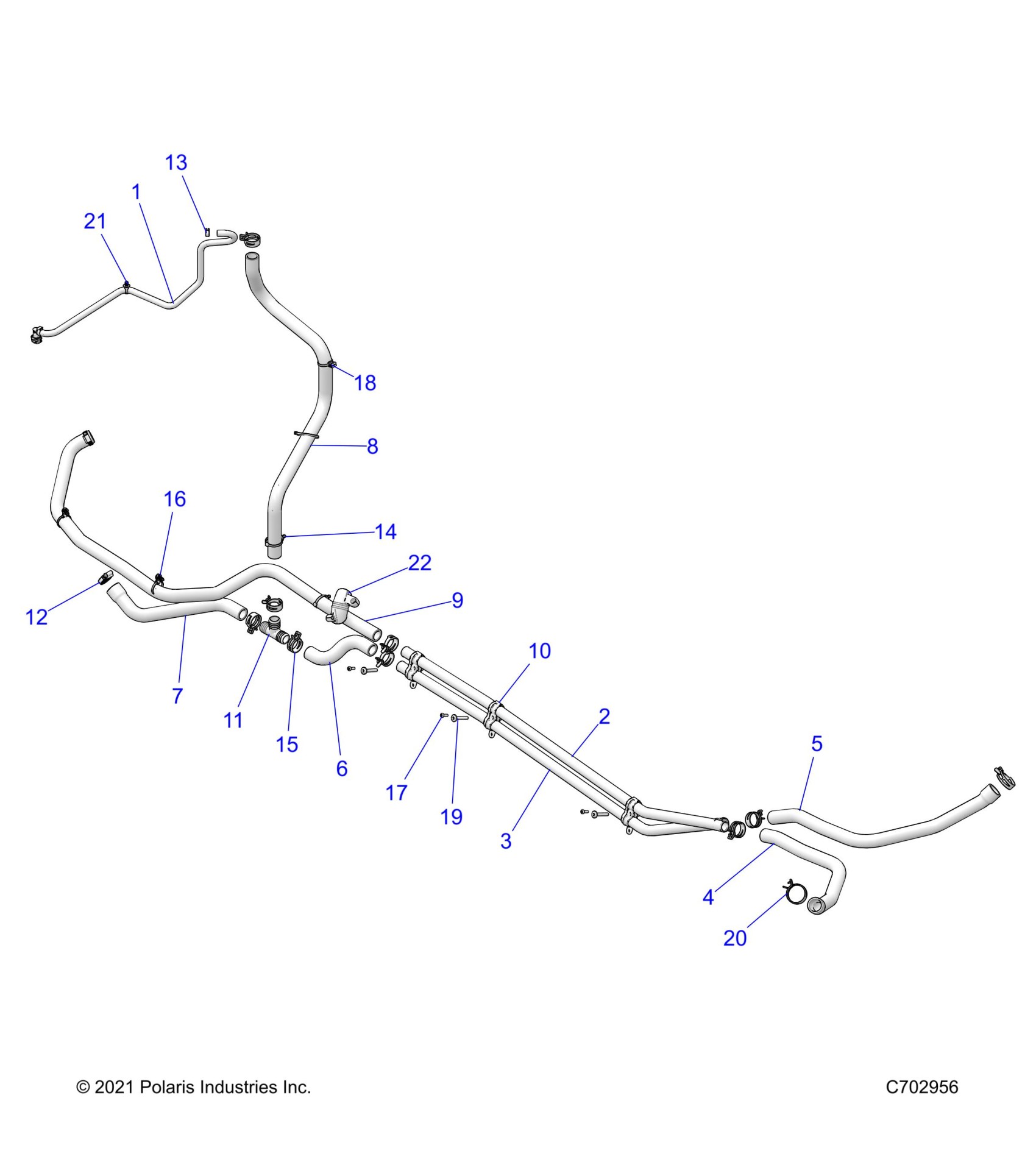

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL ENGINE, COOLING ROUTING ENGINE - Z23GAE92A/92B (C702956) Diagram

#

Description
Price

1

ASM-VENT,HEAD

1241324

$47.99

2

TUBE-COOLANT,HT UPPER

5143811

$63.99

3

TUBE-COOLANT,HT LOWER

5143812

$63.99

4

HOSE-RADIATOR,HT,IN

5417552

$35.99

5

HOSE-RADIATOR,HT,OUT

5417553

$43.99

6

HOSE-ENG IN,TUBE/T

5416570

$27.99

7

HOSE-ENG IN,T/ENG

5416571

$31.99

8

HOSE-OUT,ENGINE,SURGE/T

5416572

$63.99

9

HOSE-ENGINE OUT

5416573

$71.99

10

BRACKET-COOLANT TUBE

5451221

$8.79

11

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

13

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

SPRINGBAND-CLAMP,BLK

7082308

$5.59

16

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

17

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

18

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

19

SCR-14X1.75 T40 TX HI/LO

7519840

$2.39

20

CLAMP-CTB42

7082625

$7.19

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

SUPPORT-SHIFT CABLE

5417525

$30.79
