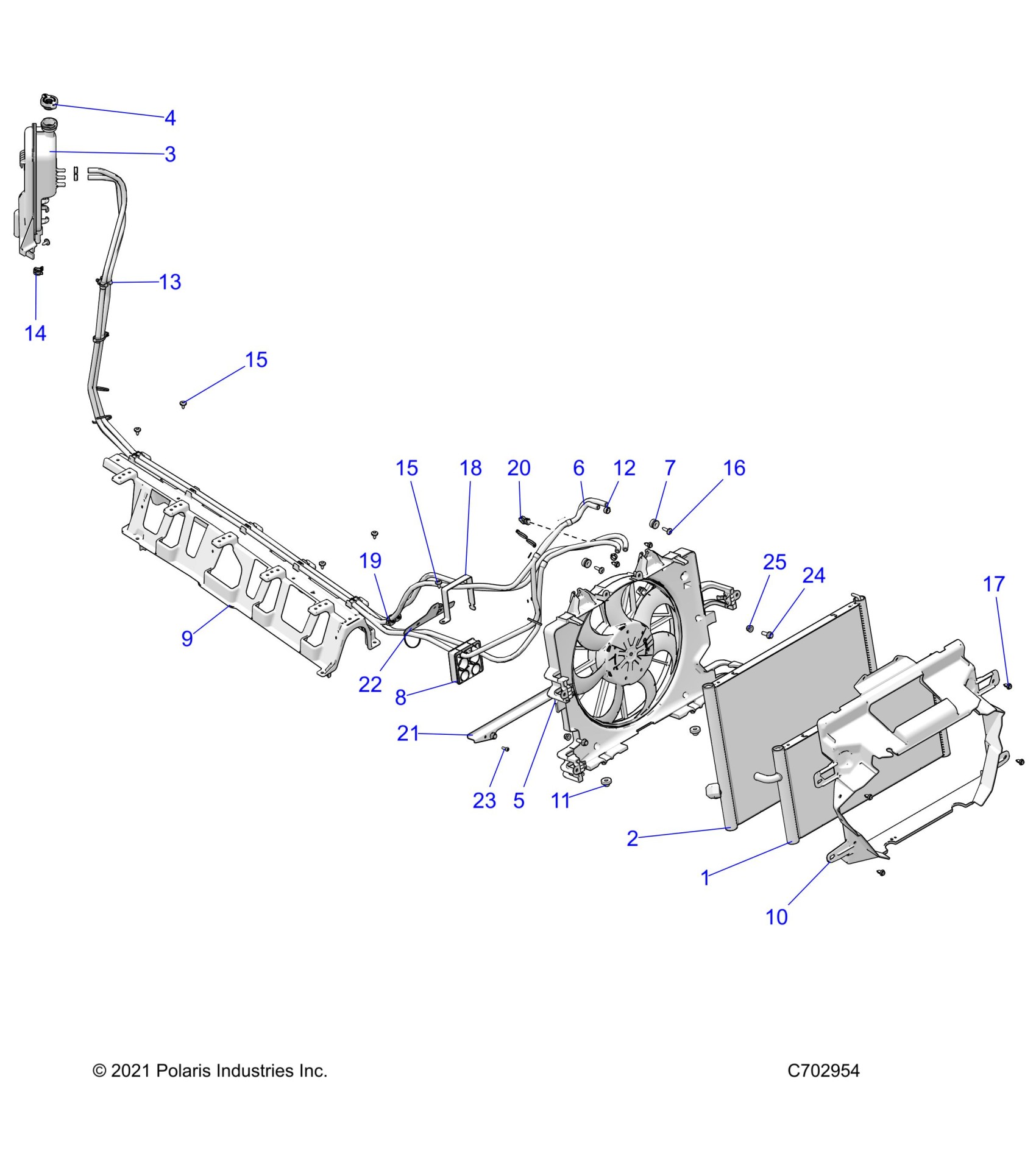

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL ENGINE, COOLING, RADIATOR - Z23GAE92A/92B (C702954) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE,LT

1241528

$308.54

2

ASM-RADIATOR,CORE

1241322

$283.99

3

WELD-SURGE TANK,DUAL

1244715

$79.99

4

CAP-PRESSURE

1241379

$35.99

5

FAN-ASSEMBLY

2415640

Unavailable

6

ASM-VENT LINE

2522398

$31.99

7

ASM-GROMMET & INSERT

5416503

$3.99

8

GROMMET-ROUTING

5417636

$31.99

9

TRAY-ROUTING,MID,SUB CONSOLE

5454910

$91.99

10

SHROUD-RADIATOR

5459139

$42.06

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

HOSE CLAMP, RED

7080003

$1.49

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

CLAMP, HOSE SPRING, 20MM

7081719

$5.59

15

SCR-M6X1X16 TR/TX-M

7518936

$3.99

15

SCR-M6X1X16 TR/TX-M

7518936

$3.99

16

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

17

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

18

STRAP-GROMMET,ROUTING,ECOAT

5270704-329

$11.43

19

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.99

20

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

21

BRKT-SUPPORT,RADIATOR

5270074

$37.39

22

BRKT-GROMMET,ROUTING.ECOAT

5270675-329

$14.39

23

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

24

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

25

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
