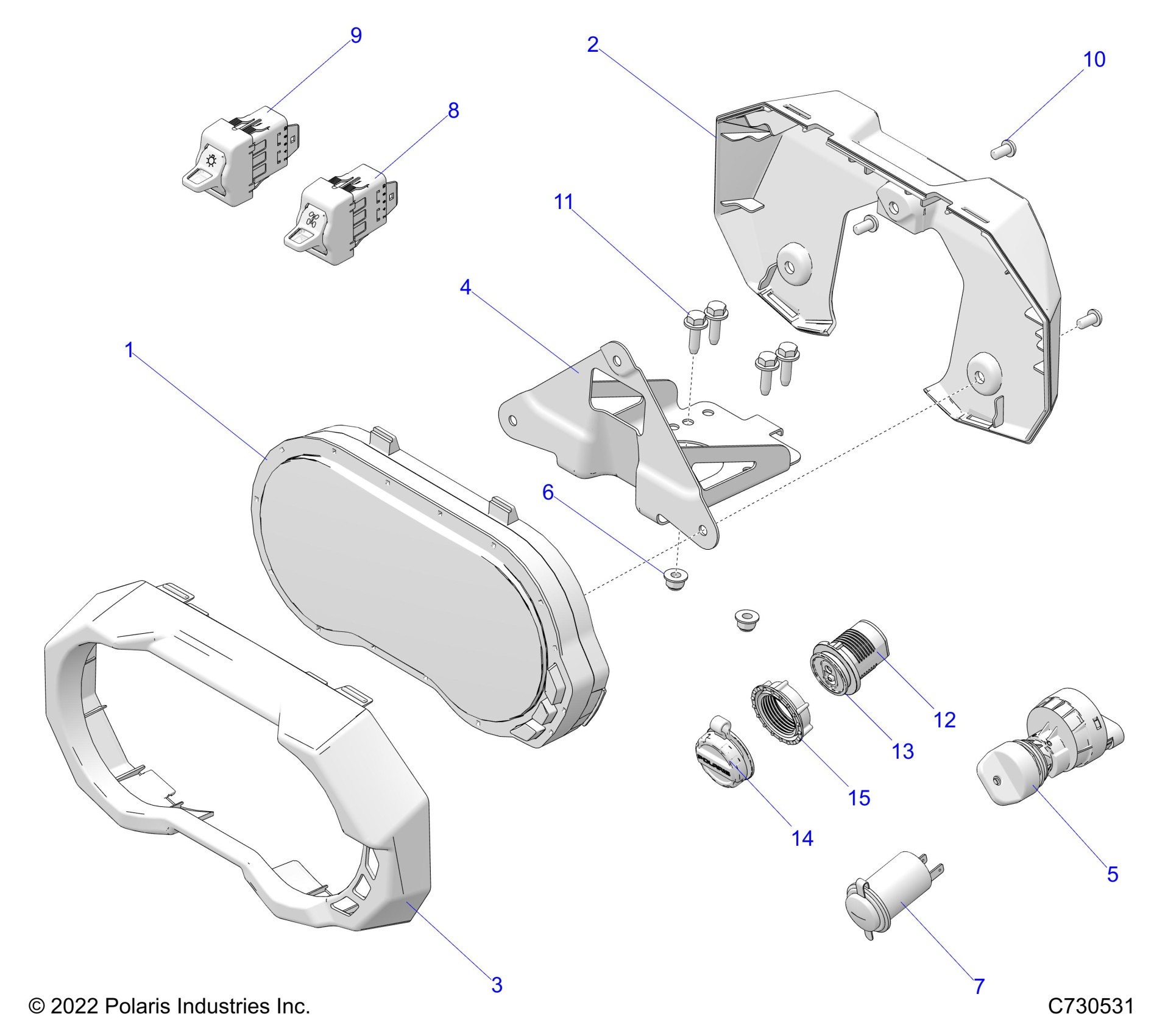

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23GAE92A/92B (C730531) Diagram

#

Description

Price

1

ASM-C4,RZR,250K,NAS

3286956

$394.39

2

BEZEL-GAUGE,REAR

5455957

$9.59

3

BEZEL-GAUGE,FRONT

5455956

$9.59

4

BRKT-MOUNT,C4 GAUGE

5266496

$43.99

5

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

8

SWITCH-AWD

4017993

$59.99

9

SWITCH-HEADLIGHT

4017992

$59.99

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

ASM-CHARGE PORT,BASE [INCL. 13-15]

2415295

$40.46

13

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

14

CAP-CHARGE PORT

5417215

$12.79

15

NUT-CHARGE PORT

5456622

Unavailable
