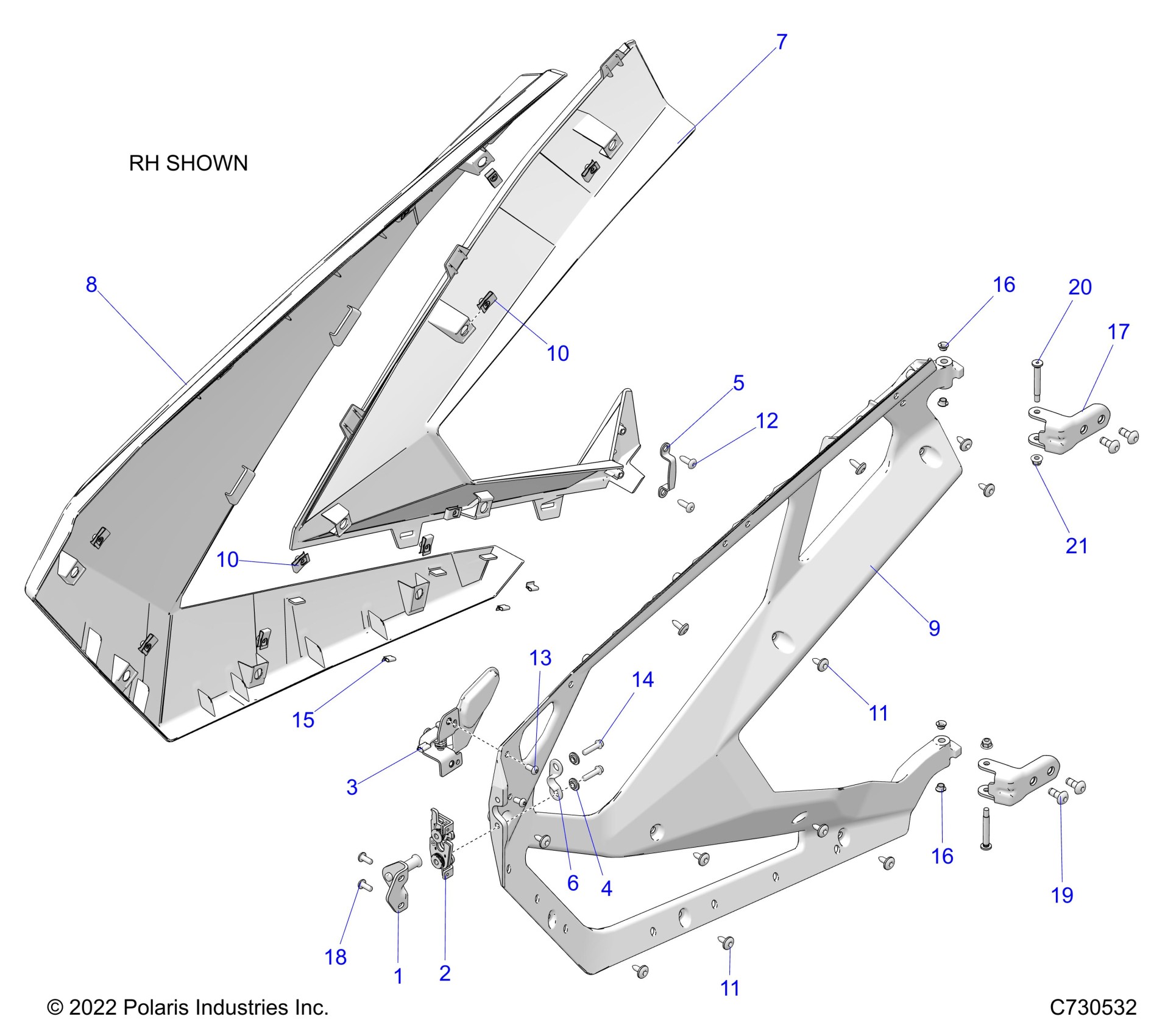

Polaris RZR TURBO R SPORT (R02) - Z23GAE92AL/92BL BODY, DOORS - Z23GAE92A/92B (C730532) Diagram

#

Description
Price

1

WELD-STRIKER

1026523

$18.04

2

ASM-LATCH,DOOR,LH [TO 10/05/2023]

2637039

$37.99

2

ASM-LATCH,DOOR,LH [FROM 10/05/2023]

2639731

$33.32

2

ASM-LATCH,DOOR,RH [TO 10/05/2023]

2637040

$37.99

2

ASM-LATCH,DOOR,RH [FROM 10/05/2023]

2639732

$33.32

3

ASM-ACTUATOR,LATCH,LH

2637402

$39.68

3

ASM-ACTUATOR,LATCH,RH

2637403

$39.68

4

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.97

5

BRKT-TRIM,DOOR

5267829

$8.89

6

BUMPER-DOOR

5417528

$14.24

7

PANEL-DOOR,REAR,LH,BLK

5455214-070

$96.81

7

PANEL-DOOR,REAR,RH,BLK

5455215-070

$96.81

8

PANEL-DOOR,FRT,PAINT,LH,O.BLK

5455960-800

$639.99

8

PANEL-DOOR,FRT,PAINT,RH,O.BLK

5455961-800

$639.99

9

CASTING-DOOR FRAME,LH,BLK

5634424-458

$416.33

9

CASTING-DOOR FRAME,RH,BLK

5634425-458

$353.40

10

CLIP-U SPEED NUT

7081305

$1.98

10

CLIP-U SPEED NUT

7081305

$1.98

11

SCR-M6X1X16 TR/TX-M

7518936

$3.97

11

SCR-M6X1X16 TR/TX-M

7518936

$3.97

12

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

13

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

14

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97

15

FASTENER-U TYPE CLIP

7670040

$3.97

16

BUSHING-DOOR PIVOT

5266311

$3.17

16

BUSHING-DOOR PIVOT

5266311

$3.17

17

BRKT-DOOR HINGE

5267526

$32.37

18

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.97

19

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.97

20

SCR-TXWH-M6X1.0X54 10.9 ZTB SP

7527850

$3.17

21

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97
