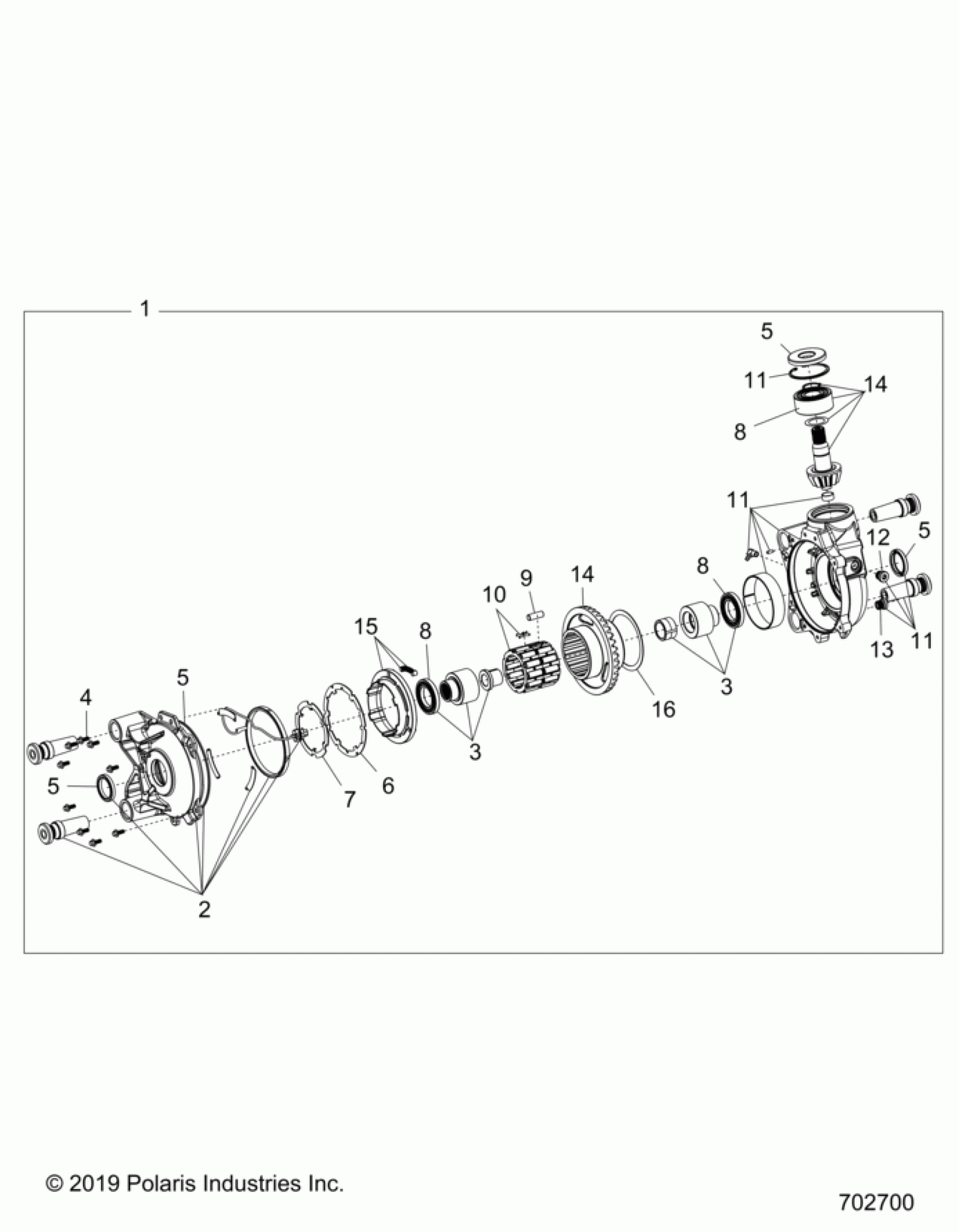

Polaris RZR TURBO R PREMIUM (R02) - Z24GAC92AN/BN DRIVE TRAIN, FRONT GEARCASE - Z24GAC92AN/BN (702700) Diagram

#

Description
Price

-

KIT, ISOLATION NS

5417371

$13.59

1

ASM-GEARCASE,FRONT,ISOL [INCL. ALL]

1337227

$1,680.79

1

ASM-GEARCASE,FRONT,ISOL HD [RACE/HD OPTION]

1337202

$1,812.79

2

ASM. COVER OUTPUT

3239499

$577.19

3

ASM. OUTPUT HUB

3239500

$421.19

3

ASM. OUTPUT HUB

3239500

$421.19

4

COVER, FASTENERS

3236202

$27.99

5

KIT, SEAL REPAIR

3239501

$123.99

5

KIT, SEAL REPAIR

3239501

$123.99

5

KIT, SEAL REPAIR

3239501

$123.99

5

KIT, SEAL REPAIR

3239501

$123.99

6

PLATE, 4WD ARMATURE

3236488

$63.99

7

PLATE, CAGE

3236205

$87.99

8

BEARINGS

3236206

$159.99

8

BEARINGS

3236206

$159.99

8

BEARINGS

3236206

$159.99

9

CAGE ROLLERS

3236207

$4.39

10

ASM, ROLL CAGE

3236208

$339.99

11

ASM-GEARCASE

3236687

$1,415.39

11

ASM-GEARCASE

3236687

$1,415.39

11

ASM-GEARCASE

3236687

$1,415.39

12

KIT-PLUG,FILL

2203739

$39.99

13

KIT-PLUG,DRAIN

2203738

$35.99

14

ASM. GEAR HOUSING & PINION GEAR

3236626

Unavailable

14

ASM. GEAR HOUSING & PINION GEAR

3236626

Unavailable

15

TORSION RETAINER ASSEMBLY

3239527

$167.99

16

SPACER, GEAR

3236212

$39.99
