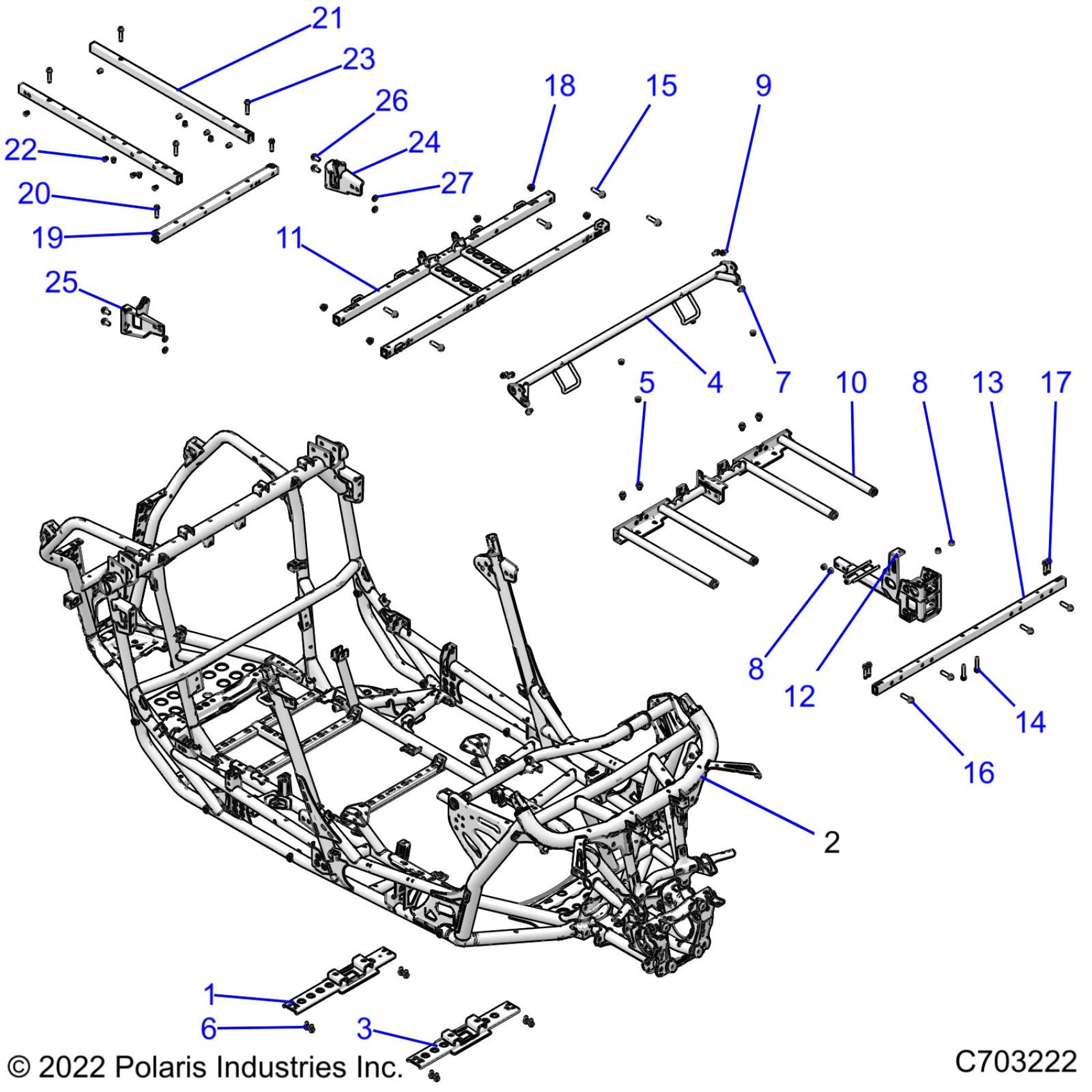

Polaris RZR TURBO R 4 ULTIMATE (R07) - Z23G4D92AL/BL/AE/BE CHASSIS, MAIN FRAME - Z23G4D92AL/BL/AE/BE (C0705763) Diagram

WELD-MOUNT,PROPSHAFT,ECOAT

1023970-329

$47.99

WELD-MAIN FRAME,RZR,MP,BLK

1026177-458

$6,173.19

WELD-MOUNT,PROPSHAFT,MP,ECOAT

1026324-329

$48.39

WELD-FRAME,CROSS BAR,MP,BLK

1024813-458

$227.99

SCR-HXFL-M10X1.5X16 8.8 ZPB

7517951

$5.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

BOLT-M8X1.25X16,HXHDFLG,W/PTCH

7518695

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

WELD-SEAT BASE,FRT,MP,ECOAT

1024041-329

$283.99

WELD-SEAT BASE,REAR,MP,ECOAT

1024042-329

$283.99

WELD-MOUNT,SHIFT/SCM,ECOAT,MP

1026074-329

$275.99

TUBE-SEAT BASE,FRONT,ECOAT

5340949-329

$67.99

SCR-M8X1.25X60-HX/FL-Y

7516733

$6.39

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-M10X1.50X50 HX/FL-Y

7518687

$5.22

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

BRKT-CLOSE OFF SUPPORT,ECOAT

5269415-329

$63.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

WELD-MOUNT,BOX [INCL. 22][FROM 5/29/2024]

1029389

$43.99

WELD-MOUNT,BOX [INCL. 22][TO 5/29/2024]

1027997

Unavailable

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.19

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

BRKT-MOUNT,HINGE,UPR,LH,BLK

5271054-458

$67.99

BRKT-MOUNT,HINGE,UPR,RH,BLK

5271055-458

$67.99

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
