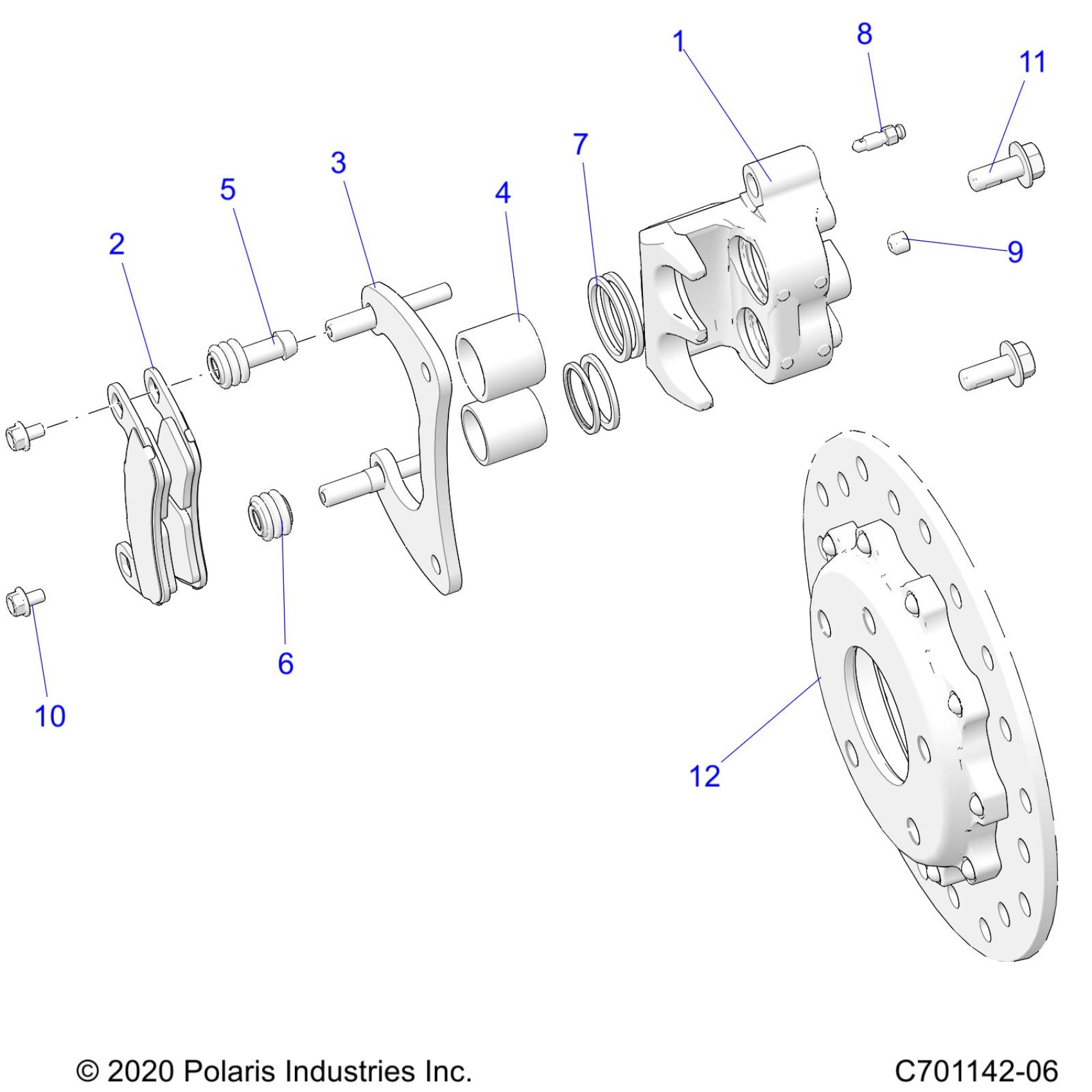

Polaris RZR TURBO R 4 ULTIMATE (R05) - Z22G4L92AG/AL/BG/BL BRAKES, CALIPER, REAR - Z22G4L92AG/AL/BG/BL (C701142-06) Diagram

#

Description

Price

1

ASM-BRK-CAL-RL-DB,WT [INCL. 2-12]

1913630

$195.99

1

ASM-BRK-CAL-RR-DB,WT [INCL. 2-12]

1913631

$195.99

2

KIT, BRAKE PAD ASM. [INCL. QTY 2 BRAKE PADS]

2208161

$35.99

3

ASM-CAL/MNT,REAR,RZR,74

1913862

$43.99

4

PISTON-CLPR,1.375",SS 303

5139187

$39.99

5

BOOT-PIN BUSHING

5412505

$3.19

6

BOOT-PIN SEAL

5412506

$3.19

7

SEAL-CALIPER,INNER,1.375"

5412907

$3.19

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

SCR-HXFL-M6X1.0X10 8.8 ZF

7521328

$4.79

11

SCR-HXFL-M10X1.25X25 8.8 Z NY

7518760

$9.59

12

ASM-DISK,BRAKE,UNIT HUB [TO 2/21/2022][NOT COMPATIBLE WITH 1525346 HUB ASM]

1913829

Unavailable

12

ASM-DISK,BRAKE,UNIT HUB [FROM 2/21/2022]

1914139

$210.36
