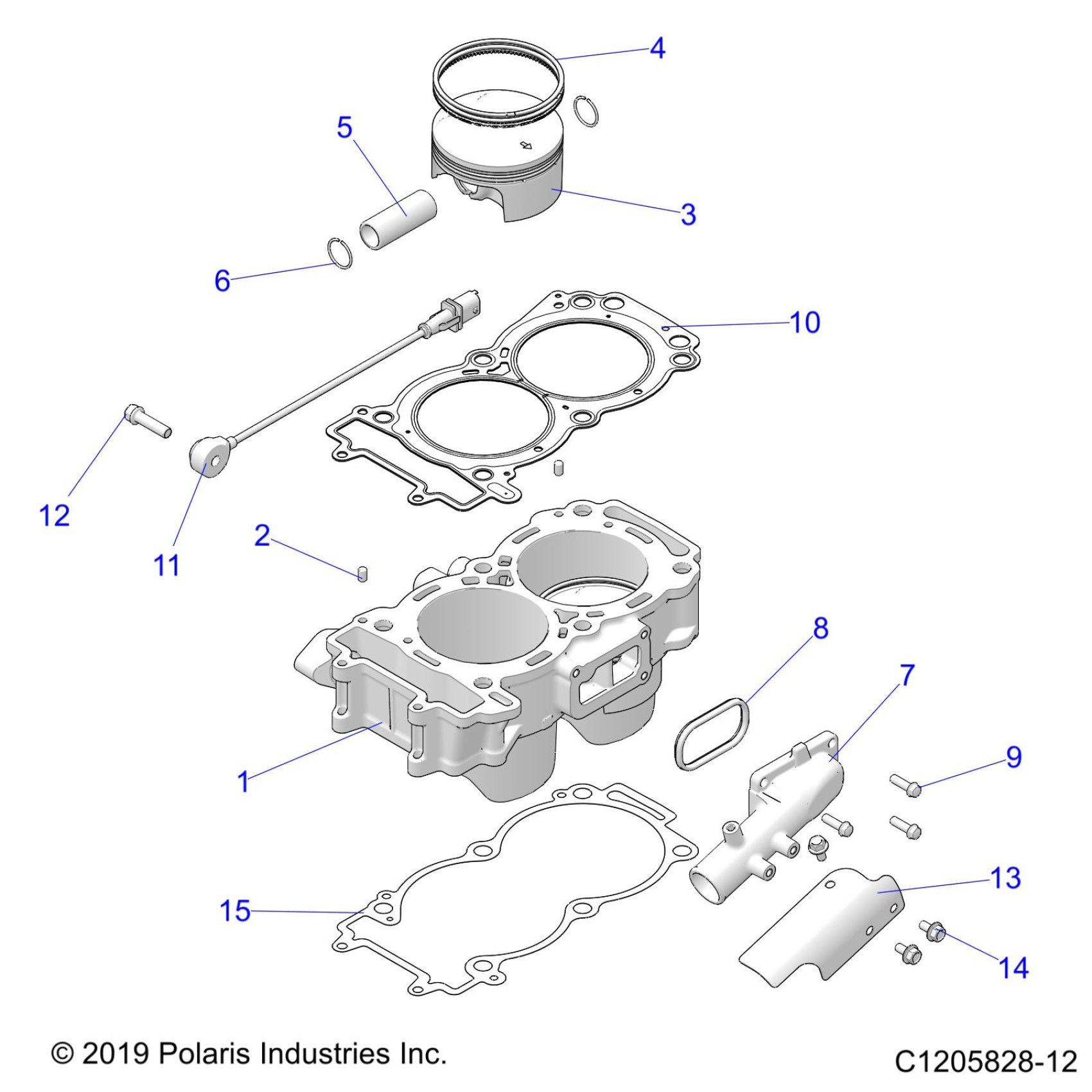

Polaris RZR TURBO R 4 SPORT (R04) - Z23G4E92AL/BL ENGINE, CYLINDER AND PISTON - Z23G4E92AL/BL (C1205828-12) Diagram

ASM., CYLINDER [INCL. 2][TO 9/18/2025]

3023035

$395.99

ASM-CYLINDER [INCL. 2][FROM 9/18/2025]

3024513

$395.99

PIN-DOWEL,M6X10

5132835

$2.39

ASM-PISTON [INCL. 4-6]

3023950

Unavailable

KIT, PISTON RINGS [INCL. SET FOR 1 PISTON]

2206217

$76.17

PIN-PISTON,22X12.8X56.6MM

3022291

$43.99

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.19

COVER-WATER INLET,MACH

5141311

$31.99

GASKET-WATER,INLET

5813736

$24.27

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

GASKET-CYL HEAD 4-LAYER

5814693

$59.99

SENSOR-DETONATION BOSCH

2410369

$76.89

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.59

SHIELD-HEAT BOLTED,COOLANT

5265306

$10.39

SCR-HXFL-M6X1.0X12 8.8

7520710

$3.99

GASKET, BASE, 2 CYL

5253037

$32.37
