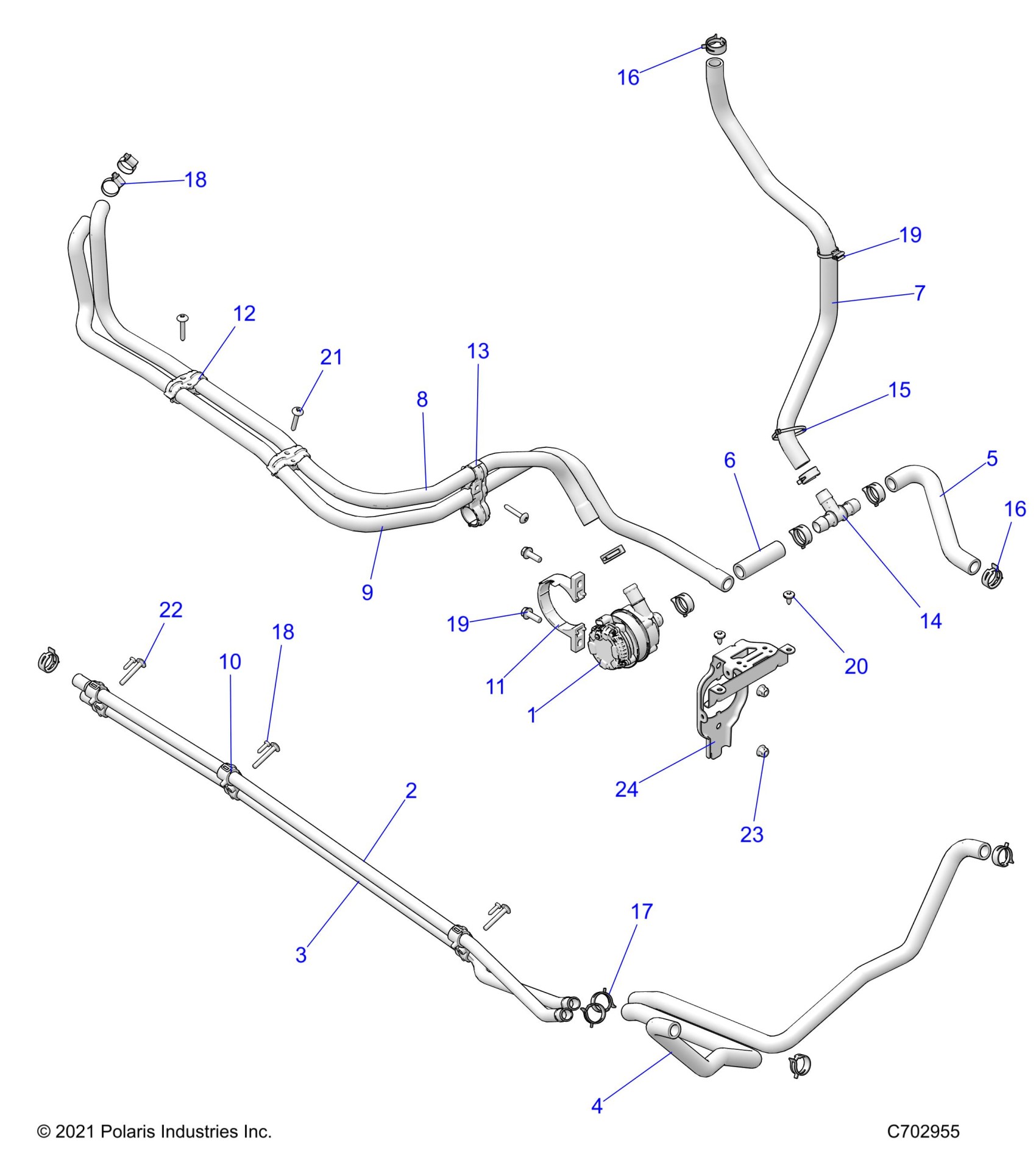

Polaris RZR TURBO R 4 SPORT (R04) - Z23G4E92AL/BL ENGINE, COOLING ROUTING MANIFOLD - Z23G4E92AL/BL (C702955) Diagram

#

Description
Price

1

ASM-PUMP,WATER,ELECTRIC

2413045

$459.99

2

TUBE-COOLANT,LT UPPER,MP

5143750

$72.60

3

TUBE-COOLANT,LT LOWER,MP

5143751

$72.60

4

HOSE-RADIATOR,LT

5417555

$40.46

5

HOSE-PUMP,IN,TUBE/T

5416576

$15.37

6

HOSE-PUMP,IN,T/PUMP

5416577

$9.70

7

HOSE-PUMP,SURGE/T

5416578

$48.56

8

HOSE-PUMP TO LCAC

5417197

$72.60

9

HOSE-LCAC,OUT

5417198

$82.29

10

BRACKET-COOLANT TUBE,3/4"

5451785

$4.84

11

BRKT-MNT,WATER PUMP

5452166

$8.08

12

CLIP-ROUTING,0.75

5454911

$6.35

13

CLIP-ROUTING

5454912

$4.76

14

FITTING-.75 IN,T

7052727

$6.35

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

16

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

17

CLAMP-CONSTANT TENSION,16-27

7081415

$7.14

18

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

18

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

20

SCR-M6X1X16 TR/TX-M

7518936

$3.97

21

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.97

22

SCR-14X1.75 T40 TX HI/LO

7519840

$2.38

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

24

BRKT-WATER PUMP,MP,ECOAT

5267114-329

$48.40
