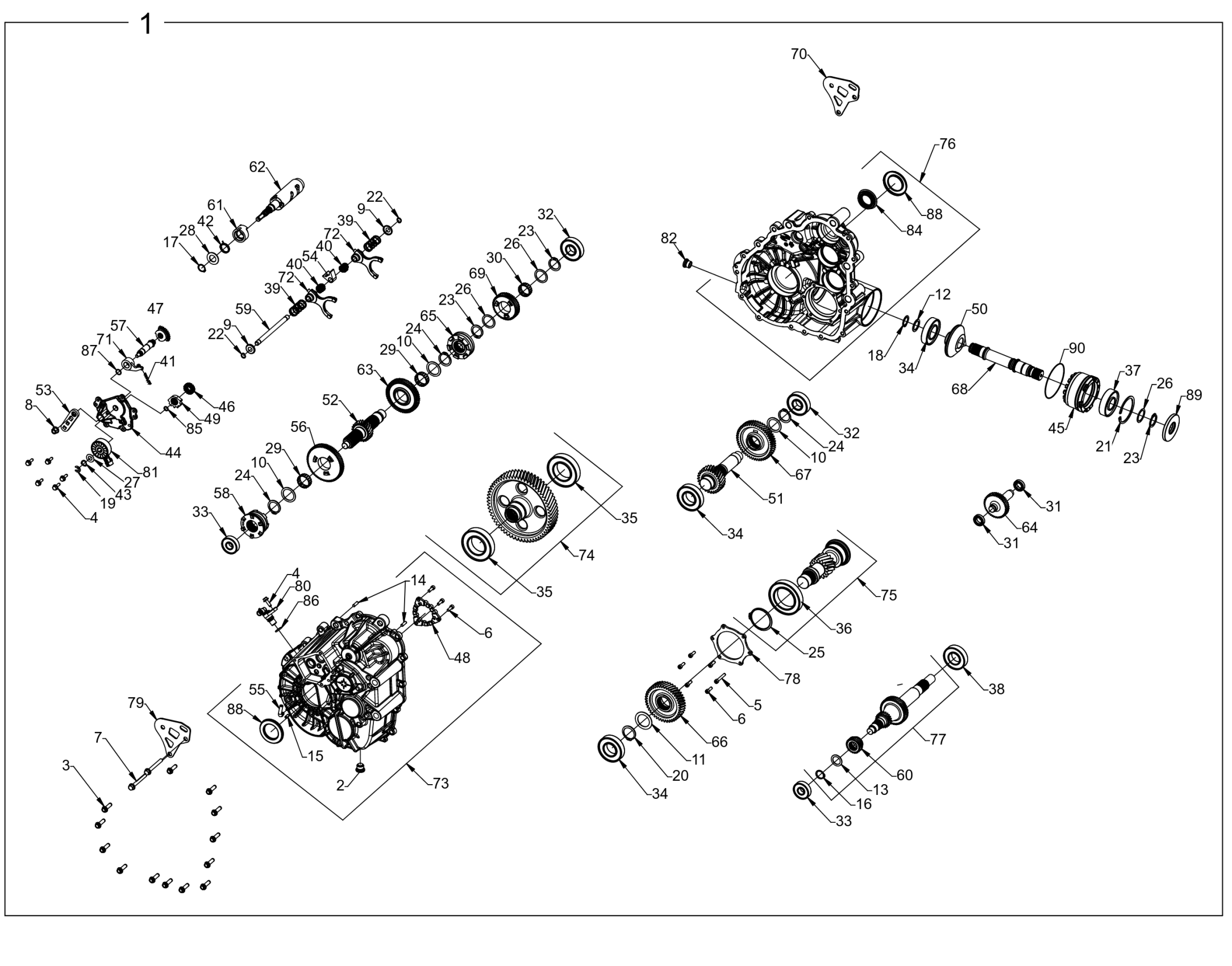

Polaris RZR TURBO R 4 SPORT (R03) - Z24G4E92AL/BL DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z24G4E92AL/BL (1334610) Diagram

#

Description
Price

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

5

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.64

8

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER-32.3X42X1.5(115288)

3235211

$10.32

10

WASHER-32.3X42X1.5(115288)

3235211

$10.32

10

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-35.6X57X1.5(115289)

3235212

$13.49

11

WASHER-35.6X57X1.5(115289)

3235212

$13.49

12

WASHER 25.26 X 34 X 2

3235805

$7.59

13

WASHER 22.70 X 32.0 X 1.5

3235991

$12.34

14

PIN, DOWEL 6 X 20

3234330

$7.14

15

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

16

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

17

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

19

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

20

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

21

RING, RETAINING BASIC INTERNAL 72

3236619

$10.51

22

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

23

RING, RETAINING,

3234205

$11.11

23

RING, RETAINING,

3234205

$11.11

23

RING, RETAINING,

3234205

$11.11

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

25

RING-RETAIN,VSH-237(130298)

3235216

$10.32

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

28

SPACER, 19.4 X 34.0 X 2.0

3235883

$28.56

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.75

31

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

31

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

32

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$39.99

32

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$39.99

33

BEARING, BALL 6303RSH2 17 X 47 X 14

3235588

$47.60

33

BEARING, BALL 6303RSH2 17 X 47 X 14

3235588

$47.60

34

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

34

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

34

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

35

BEARING, BALL 6210 RSH2 C3 50X90X20

3236420

$51.59

35

BEARING, BALL 6210 RSH2 C3 50X90X20

3236420

$51.59

36

BRG,BALL 6012P PEER 60X95X18

3236768

$59.52

37

BEARING, BALL 6306 RSH2 30X72X19

3236422

$47.62

38

BEARING, BALL 62/32 PERFORMANCE

3236746

$51.59

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

40

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

41

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

42

SPRING, TORSION

3235885

$20.22

43

WASHER-SPRING,210393

3235327

$9.52

44

COVER, SECTOR GEARS MACH

3235809

$47.49

45

TUBE, SNORKEL MACH

3236423

$105.22

46

GEAR, SECTOR, 16T

3233839

$36.41

47

GEAR-SECTOR,31T

3233832

$36.41

48

PLATE, PARK, 12 FACE

3235456

$40.46

49

STAR, DETENT,

3235982

$36.41

50

GEAR, 19T SNORKEL

3236425

$113.32

51

SHAFT IDLER, 27T

3236424

$130.70

52

SHAFT, REVERSE 23T

3236689

$254.98

53

BELLCRANK, 92 DEGREE

3235227

$28.32

54

COLLAR-SHIFT

3234073

$31.75

55

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

56

GEAR-LOW,67T(352856)

3235232

$125.46

57

SHAFT-SHIFT(352973)

3235238

$42.74

58

SHIFT DOG, PARK/LOW (353357)

3235457

$145.70

59

RAIL-SHIFT SHAFT(353622)

3235542

$28.32

60

GEAR, LOW 25T

3236132

$75.99

61

CAM, PARK

3235983

$183.95

62

DRUM, SHIFT MACH,

3235984

$279.27

63

GEAR, REVERSE 56T

3235985

$101.17

64

GEAR, IDLER 39T

3235986

$113.32

65

ENGAGEMENT DOG, 6-FACE

3236027

Unavailable

66

GEAR, 43T STAGE 3

3236427

$130.70

67

GEAR, 50T STAGE 2

3236690

$164.99

68

SHAFT, FRONT OUTPUT

3236703

$164.99

69

GEAR, 46T

3236748

$101.65

70

WELDMENT, REAR MOUNT BRACKET

3236144

$40.46

71

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

72

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

72

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

73

SUBASSEMBLY, RH CASE

3239265

$489.99

74

SUBASSEMBLY, OUTPUT

3236431

$334.99

75

SUBASSEMBLY, PINION

3239259

$427.49

76

SUBASSEMBLY, LH CASE

3236633

$531.99

77

SUBASSEMBLY, INPUT 48T/22T/25T

3236747

$408.49

78

COVER, BEARING CENTER DRIVE

3235823

$48.56

79

BRACKET, REAR MOUNT

3236145

$40.46

80

SENSOR-SPEED,TRANS

4013908

$109.27

81

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$113.32

82

PLUG, M18 X 1.5

3234755

$27.78

84

SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE,32X49X9

3239310

$60.70

85

O-RING, -012 VITON

3233836

$6.87

86

O-RING, -113 VITON

3233840

$11.32

87

O-RING, -014 VITON

3233828

$6.87

88

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

88

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

89

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$66.49

90

O-RING 3.609 I.D. X 0.139

3235948

$7.59
