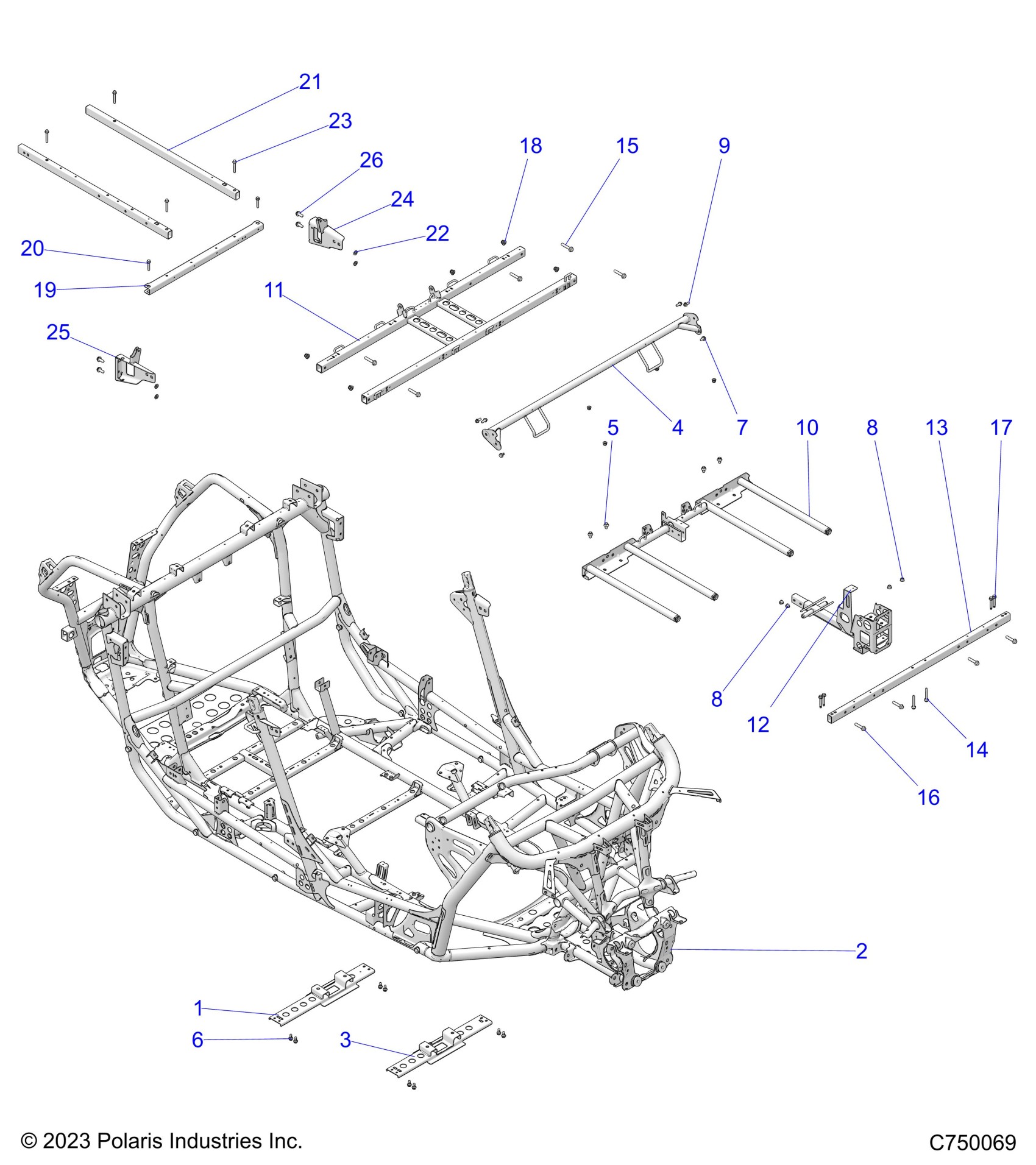

Polaris RZR TURBO R 4 SPORT (R03) - Z24G4E92AL/BL CHASSIS, MAIN FRAME - Z24G4E92AL/BL (C750069) Diagram

#

Description
Price

1

WELD-MOUNT,PROPSHAFT,ECOAT

1023970-329

$47.99

2

WELD-MAIN FRAME,RZR,MP,BLK

1026177-458

$6,173.19

3

WELD-MOUNT,PROPSHAFT,MP,ECOAT

1026324-329

$48.39

4

WELD-FRAME,CROSS BAR,MP,BLK

1024813-458

$227.99

5

SCR-HXFL-M10X1.5X16 8.8 ZPB

7517951

$5.59

6

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

7

BOLT-M8X1.25X16,HXHDFLG,W/PTCH

7518695

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

10

WELD-SEAT BASE,FRT,MP,ECOAT

1024041-329

$283.99

11

WELD-SEAT BASE,REAR,MP,ECOAT

1024042-329

$283.99

12

WELD-MOUNT,SHIFT/SCM,ECOAT,MP

1026074-329

$275.99

13

TUBE-SEAT BASE,FRONT,ECOAT

5340949-329

$67.99

14

SCR-M8X1.25X60-HX/FL-Y

7516733

$6.39

15

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

16

SCR-M10X1.50X50 HX/FL-Y

7518687

$5.22

17

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$3.99

18

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

19

BRKT-CLOSE OFF SUPPORT,ECOAT

5269415-329

$63.99

20

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

21

WELD-MOUNT,BOX [FROM 5/29/2024]

1029389

$43.99

21

WELD-MOUNT,BOX [TO 5/29/2024]

1027997

Unavailable

22

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

23

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

24

BRKT-MOUNT,HINGE,UPR,LH,BLK

5271054-458

$67.99

25

BRKT-MOUNT,HINGE,UPR,RH,BLK

5271055-458

$67.99

26

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79
