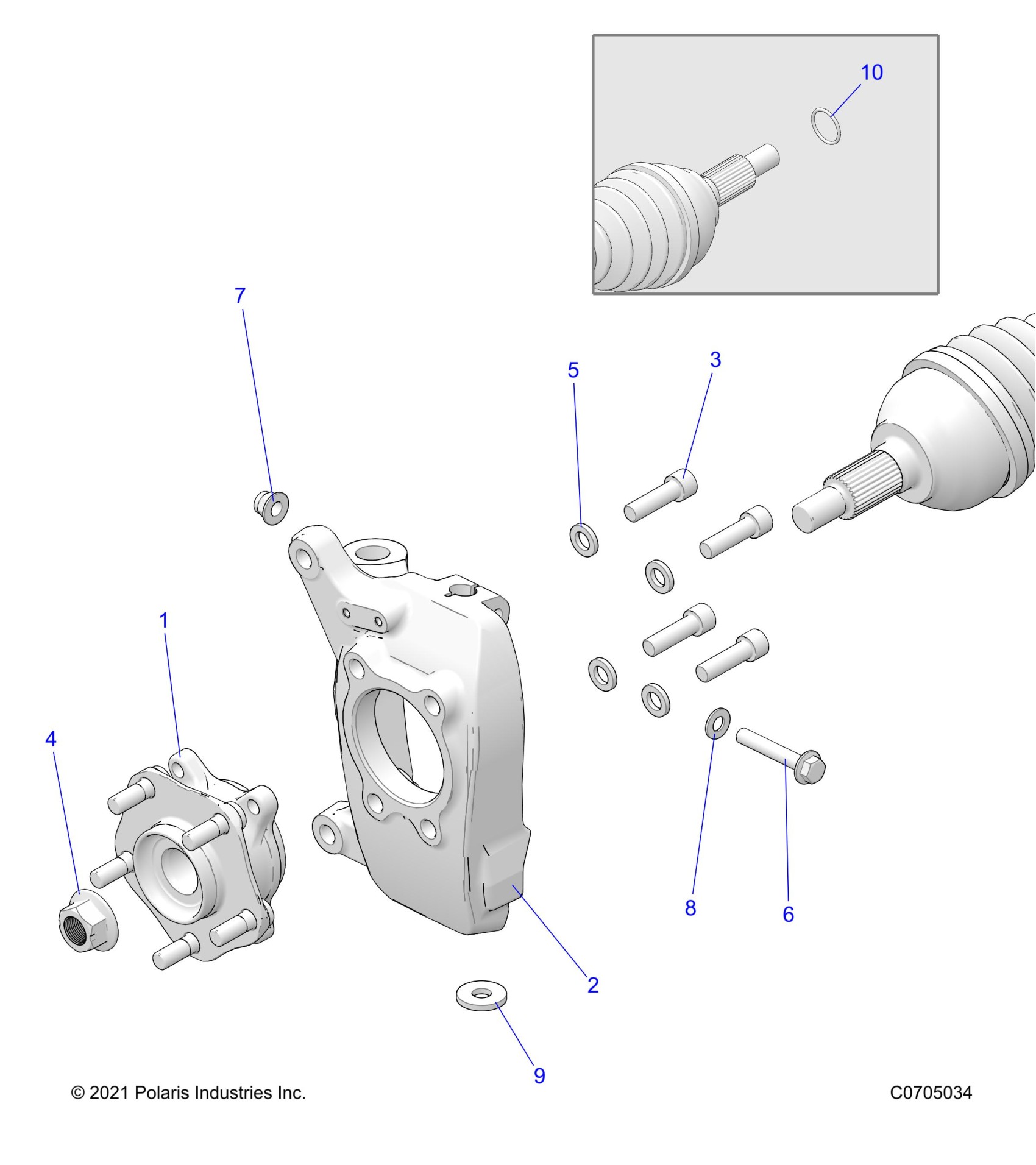

Polaris RZR TURBO R 4 PREMIUM RC (R02) - Z23G4C92AL/BL SUSPENSION, FRONT CARRIER AND HUB - Z23G4C92AL/BL (C0705034) Diagram

#

Description

Price

1

ASM-UNITIZED HUB 5X4.25

1523674

$199.49

2

KNUCKLE-FRONT M18,LH(MACH)

5143702

$294.49

2

KNUCKLE-FRONT M18,RH(MACH)

5143703

$294.49

3

SCR-SH-M12X1.25X40 12.9 PTCH

7521356

$9.52

4

NUT-M20X1.5,FLG-LCK,ZINC,8.8

7548051

$11.39

5

WSHR-22X13X3 ZFB HRD

7557160

$3.17

6

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

9

WSHR-32X12.5X4 ZFB

7557202

$5.69

10

SEAL-O-RING,2-122

3610342

$3.22
