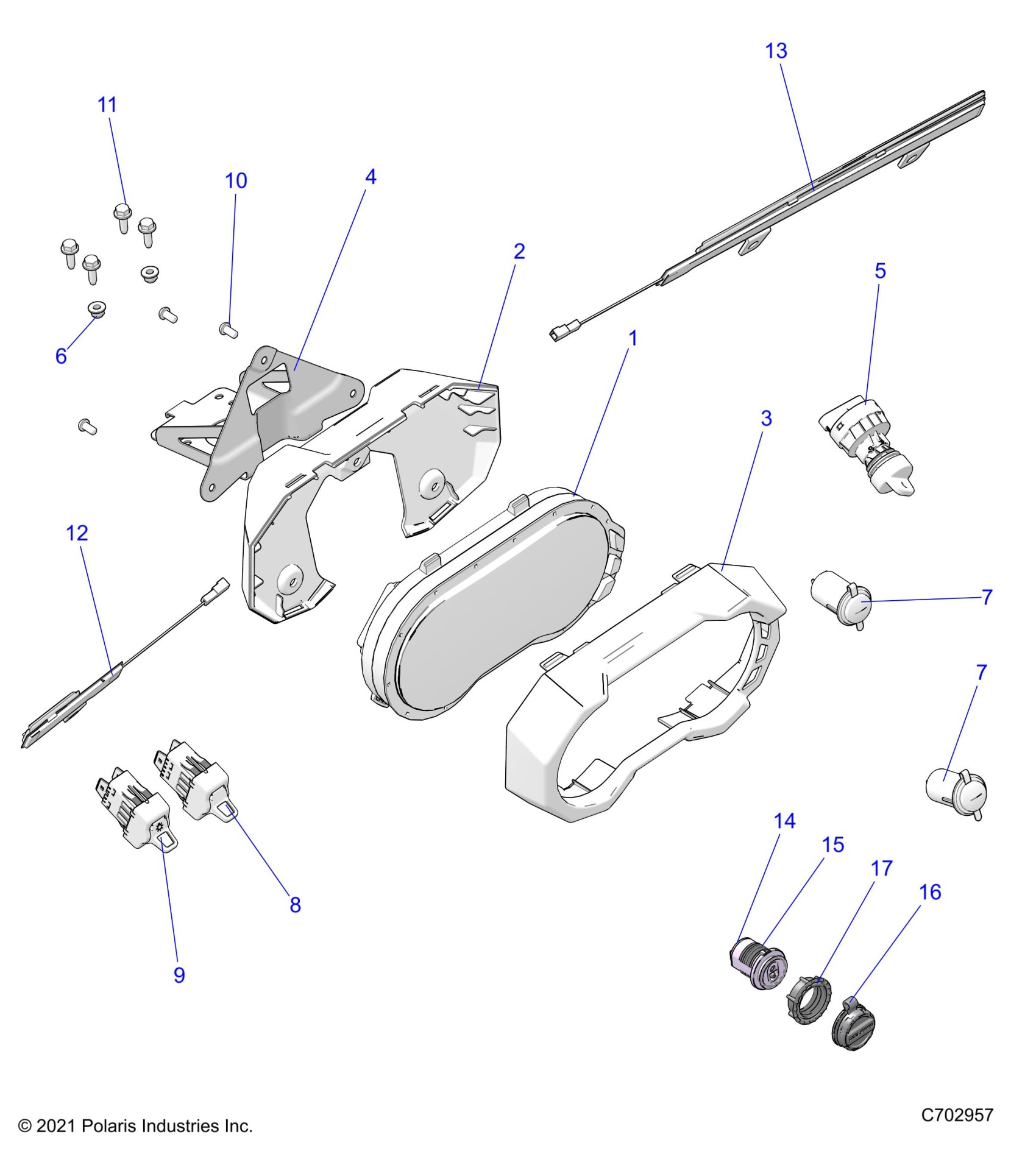

Polaris RZR TURBO R 4 PREMIUM RC (R02) - Z23G4C92AL/BL ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23G4C92AL/BL (C702957) Diagram

#

Description
Price

1

ASM-C4,RZR [TO 9/30/2022]

3286839

$529.99

1

ASM-C4,RZR,250K,NAS [FROM 9/30/2022]

3286956

$529.99

2

BEZEL-GAUGE,REAR

5455957

$9.70

3

BEZEL-GAUGE,FRONT

5455956

$9.70

4

BRKT-MOUNT,C4 GAUGE

5266496

$44.51

5

SWITCH-KEY,4 POSITION,SEALED

4016135

$56.99

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D [AJ][BJ]

7547339

$1.19

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

8

SWITCH-AWD

4017993

$71.24

9

SWITCH-HEADLIGHT

4017992

$71.24

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

12

ASM-LIGHT,DASH,DRIVER [AP][BP]

2414547

$89.99

13

ASM-LIGHT,DASH,PASS [AP][BP]

2414549

$99.74

14

ASM-CHARGE PORT,BASE

2415295

$44.51

15

PLUG-HARNESS CHARGE PORT

2415198

$44.51

16

CAP-CHARGE PORT

5417215

$12.94

17

NUT-CHARGE PORT

5456622

$44.51
