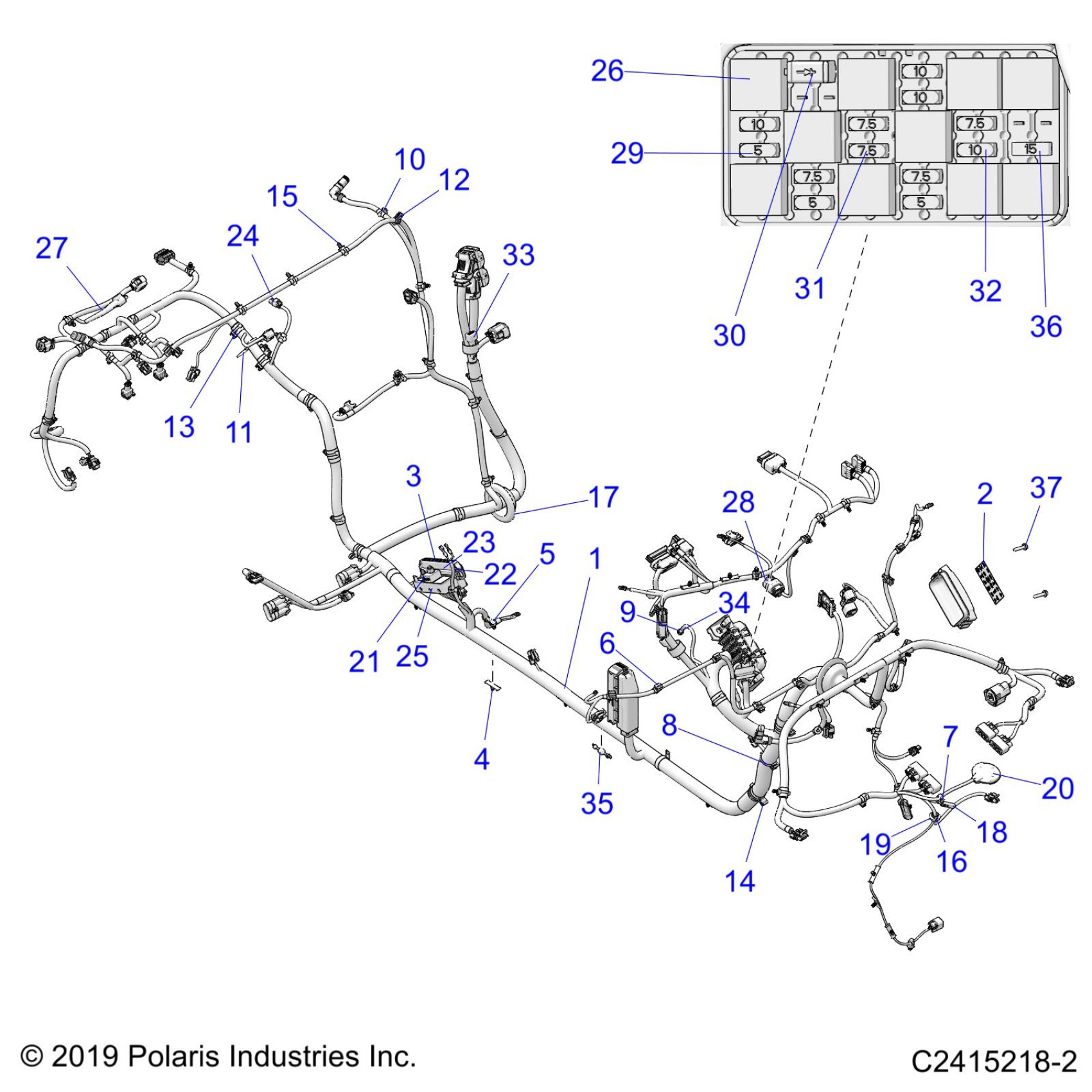

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT ELECTRICAL, WIRE HARNESS, CHASSIS - Z20RAD92LC (C2415218-2) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,T,96X64,DX [INCL 2-36]

2415218

Unavailable

2

LABEL-FUSE BOX

7192416

Unavailable

3

LABEL-PDM,RZR

7189870

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CLIP-EDGE,1-3MM THICKNESS

7082403

$4.79

7

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

8

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

9

CLIP-ROUTING,DIN BOX

7082020

$5.59

10

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CLIP-EDGE,HARNESS

7081890

$10.39

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

GROMMET-65MM,BLK

5813954

$7.19

18

CAP-VINYL,125X375,BLACK

5438230

$5.59

19

GROMMET-SPEAKER,VOLUME

5413027

$2.39

20

ANTENNA,GPS,EXT

4018662

$111.99

21

FUSE-ZCASE, 200A

4018415-200

$37.39

22

FUSE-MCASE,40A

4018414-40

$5.59

23

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

24

CAP-EVAP CONNECTOR

4018066

$3.99

25

FUSE-PDM

4017598

$57.19

26

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

27

BOOT-TMAP

4016101

$23.99

28

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

29

FUSE-5A,MINI BLADE

4011652

Unavailable

30

DIODE-6AMP

4011474

$40.46

31

FUSE-7.5,MINI BLADE (BROWN)

4011068

Unavailable

32

FUSE-IGNITION,10 AMP

2434016

$4.79

33

RESISTOR-EVAP PULLUP-1KOHM

2414716

$8.79

34

LED-PANEL MNT,12V,BLUE

2413217

$51.99

35

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

36

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

37

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19
