- RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT
ELECTRICAL, WIRE HARNESS, CHASSIS - Z20RAB92LR/E92LT (C2415217)

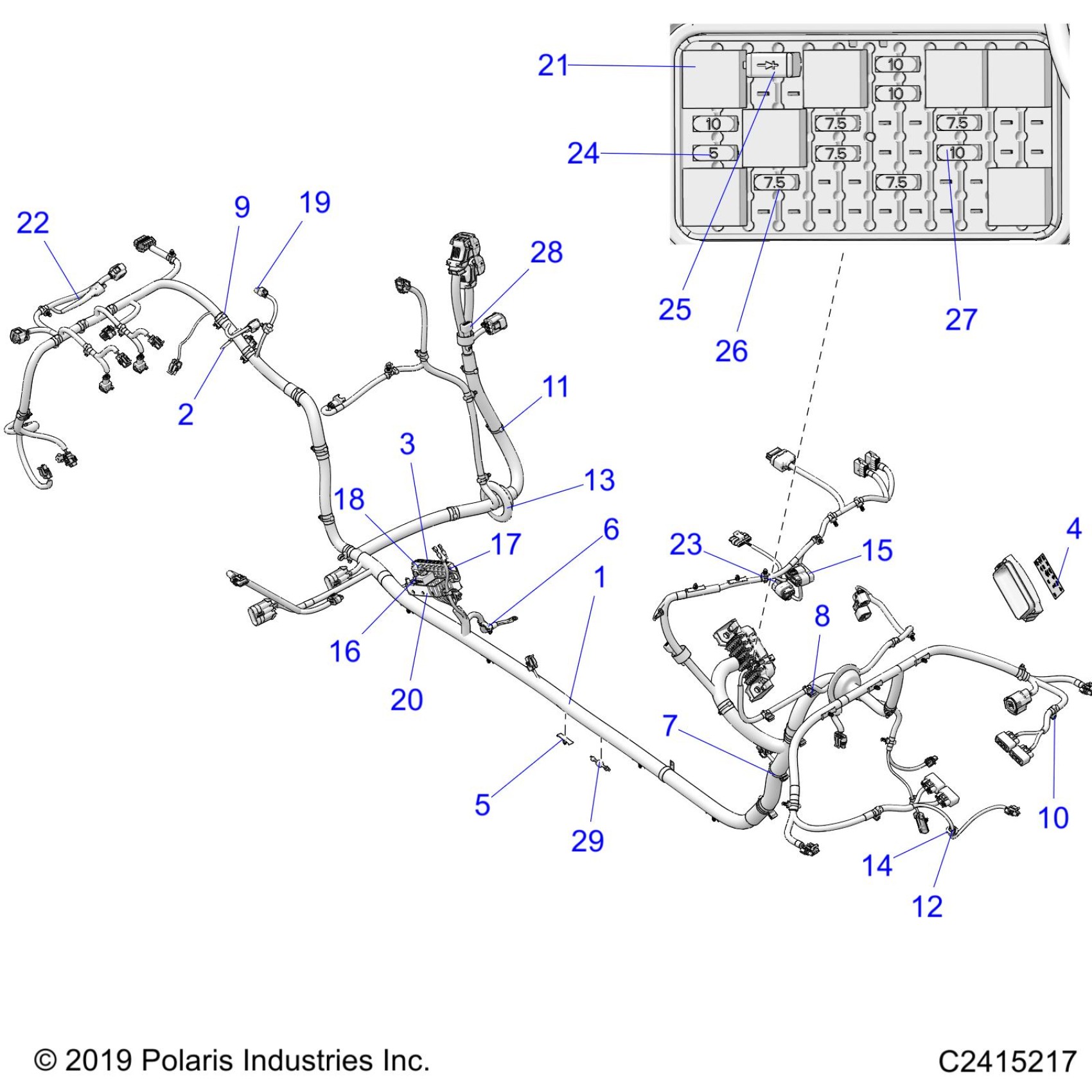

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT ELECTRICAL, WIRE HARNESS, CHASSIS - Z20RAB92LR/E92LT (C2415217) Diagram
#
Description
Price
1
HARNESS-CHASSIS,RZR,T,96X64 [INCL 2-29]
2415217
$1,438.79
2
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
$4.79
3
LABEL-PDM,RZR
7191115
Unavailable
4
LABEL-FUSE BOX
7189486
Unavailable
5
CLIP-XMAS,6.35MM HOLE,TAPE-ON
7082411
$3.19
6
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
$3.19
7
CLIP-EDGE,3-6MM THICKNESS
7082399
$5.27
8
CLIP-EDGE,HARNESS
7081890
$10.39
9
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
$12.79
10
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
$5.59
11
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
13
GROMMET-65MM,BLK
5813954
$7.19
14
GROMMET-SPEAKER,VOLUME
5413027
$2.39
15
CAP-EVAP CONNECTOR
4018655
$3.99
16
FUSE-ZCASE, 200A
-------
Unavailable
17
FUSE-MCASE,SLOTTED,40A
-------
Unavailable
18
FUSE-MCASE,SLOTTED,30A
-------
Unavailable
19
CAP-EVAP CONNECTOR
4018066
$3.99
20
FUSE-PDM
4017598
$57.19
21
RELAY-SPST,12V,20A,EPXY,HFA
4016819
$32.37
22
BOOT-TMAP
4016101
$23.99
23
COVER-DIAGNOSTIC,W/CLIP
4012170
$8.08
24
FUSE-5A,MINI BLADE
4011652
Unavailable
25
DIODE-6AMP
4011474
$40.46
26
FUSE-7.5,MINI BLADE (BROWN)
4011068
Unavailable
27
FUSE-IGNITION,10 AMP
2434016
$4.79
28
RESISTOR-EVAP PULLUP-1KOHM
2414716
$8.79
29
DIODE-6AMP,1/4,3/16 TERM
2411035
$51.99
