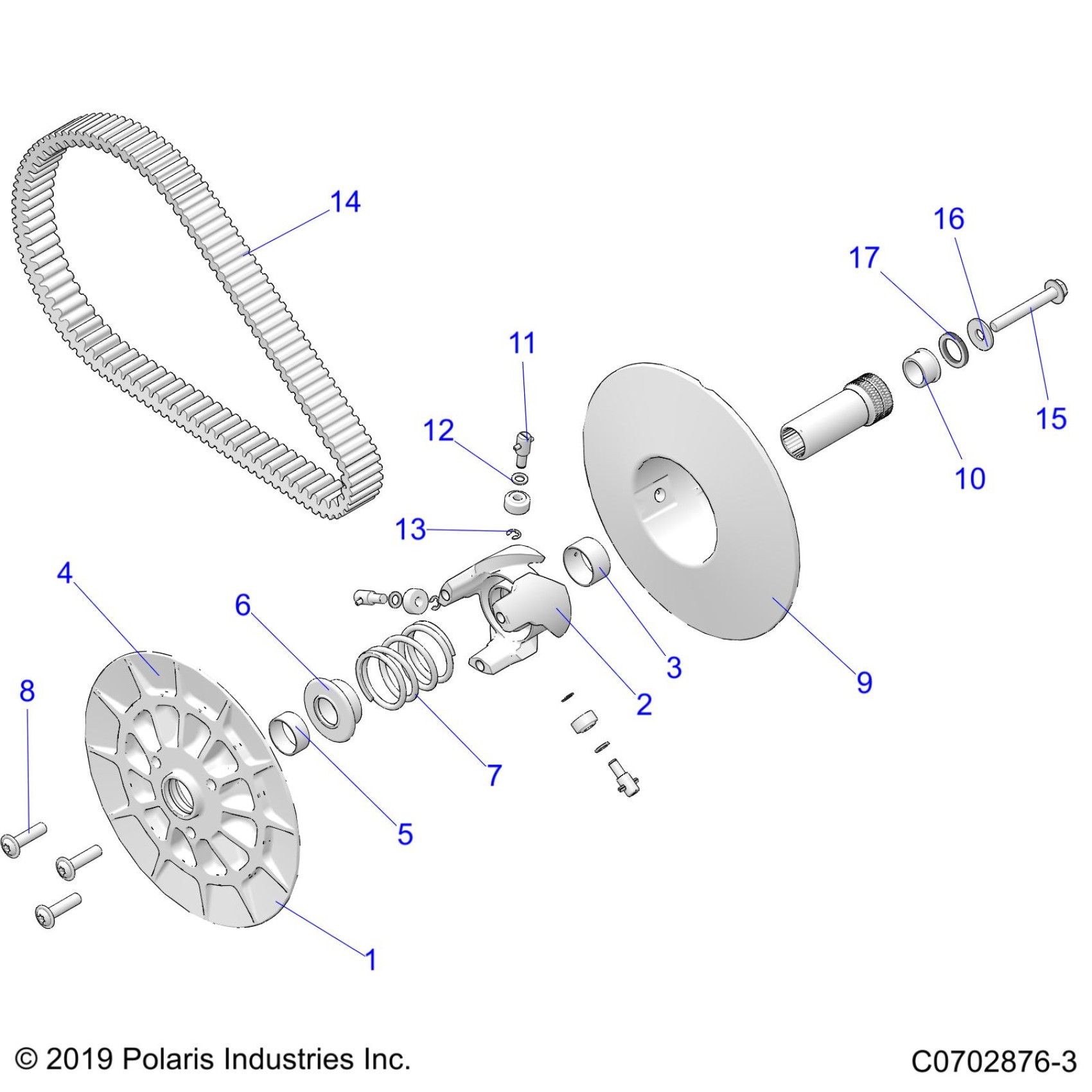

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT DRIVE TRAIN, SECONDARY CLUTCH - Z20RAB92LR/D92LC/E92LT (C0702876-3) Diagram

ASM-DRIVEN,MOVEABLE,P90X,HD [INCL 2-8]

1323789

$327.74

ASM-HELIX,MACH,38-44F-BA90 [INCL 3]

1323606

$237.21

BEARING-DU,35X20

3514903

$31.75

ASM-DRIVEN,MOVEABLE,P90X,HD [INCL 5]

1323788

$327.74

BEARING-MU,32X36X15

3515170

$5.56

CUP-DRIVEN SPRING,P90X

5633759

$13.75

SPRING-DRIVEN,160-260

7045524

$19.84

SCR-TXFLBH-M10X1.25X40 10.9SPC

7520698

$4.76

ASM-DRIVEN,STATIONARY,P90X,HD [INCL 10-13]

1323607

$185.24

BUSHING-P90X,29X22X17

5141303

$6.35

PIN-DRIVEN,ROLLER,12MM

5142358

$5.56

WSHR-8.4X14 .0X1.6

7556211

$4.76

E-CLIP,M6, DIN 6799

7710466

$3.17

BELT-DRIVE

3211202

$189.99

BELT-DRIVE,12.1CD,HDY HD BELT

3212358

$246.99

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.14

WASHER-FLAT M10X30X2.5 HARDEN

7556698

$4.76

SHIM-RING,23.25X32.25X0.5

7557060

$2.38
