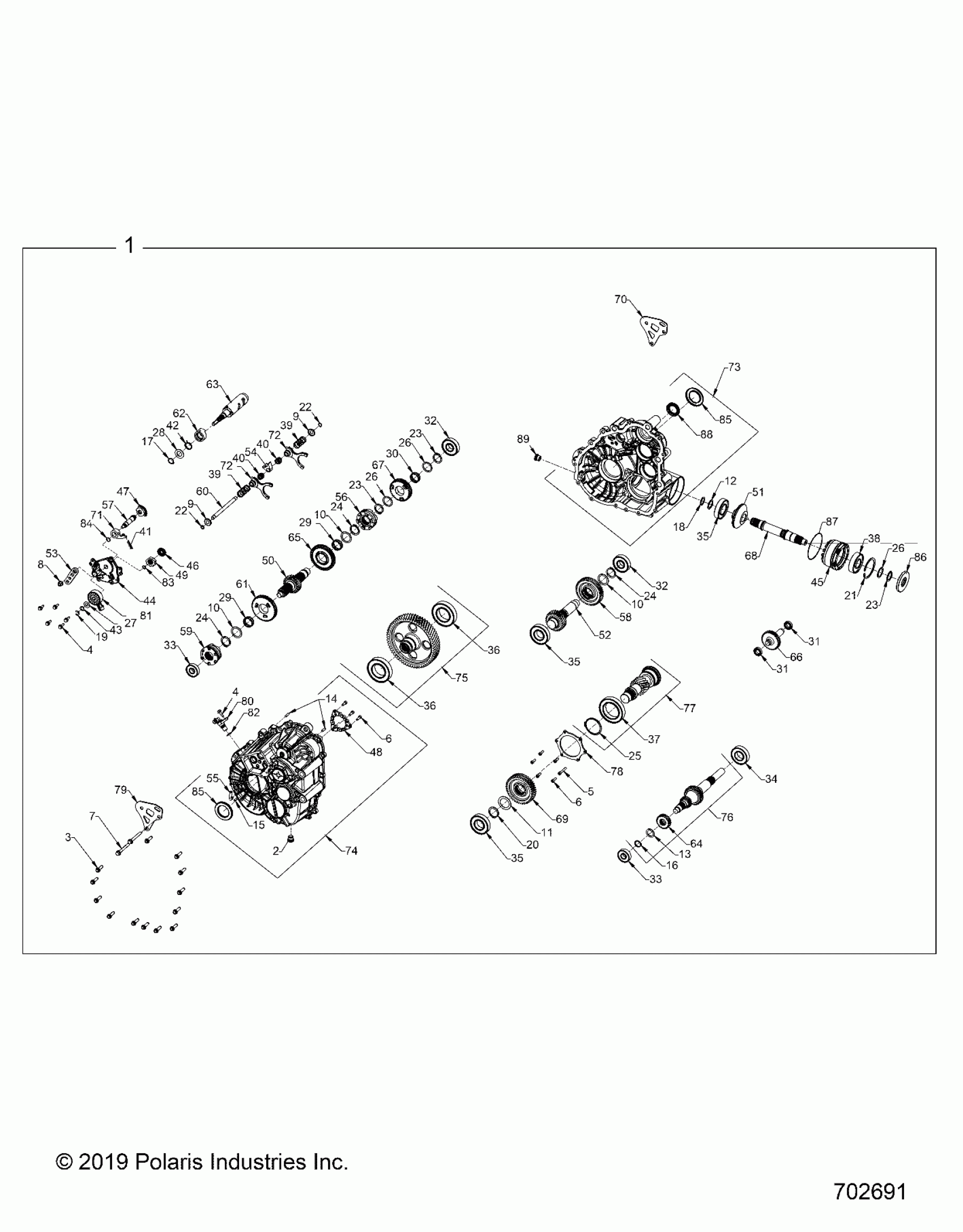

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z20RAB92LR/D92LC/E92LT (702691) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE [INCL. ALL][TO 3/9/2020]

1334340

$3,799.99

1

ASM-GEARCASE,COMPLETE [INCL. ALL][FROM 3/9/2020]

1334399

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

3235208

$11.11

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.64

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 35.6 X 50 X 1.5

3235212

$13.49

12

WASHER 25.26 X 34 X 2

3235805

$7.59

13

WASHER 22.70 X 32.0 X 1.5

3235991

$12.34

14

PIN, DOWEL 6 X 20

3234330

$7.14

15

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

16

RING, RETAINING

7710434

$3.97

17

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

19

RING SNAP

3233834

$10.32

20

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

21

RING, RETAINING BASIC INTERNAL 72 [TO 3/9/2020]

3235535

$10.51

21

RING, RETAINING BASIC INTERNAL 72 [FROM 3/9/2020]

3236619

Unavailable

22

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

23

RING, RETAINING

3234205

$11.11

23

RING, RETAINING

3234205

$11.11

23

RING, RETAINING

3234205

$11.11

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

25

RING, RETAINING VSH-237

3235216

$10.32

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

28

SPACER 19.4 X 34.0 X 2

3235883

$28.56

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

31

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

31

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

32

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$39.99

32

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$39.99

33

BEARING, BALL 6303RSH2 17 X 47 X 14

3235588

$47.60

33

BEARING, BALL 6303RSH2 17 X 47 X 14

3235588

$47.60

34

BEARING, BALL 62/32

3236118

$37.99

35

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

35

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

35

BEARING, BALL 6207RSH2 C3 35X72X17

3236419

$47.62

36

BEARING, BALL 6210 RSH2 C3 50X90X20

3236420

$51.59

36

BEARING, BALL 6210 RSH2 C3 50X90X20

3236420

$51.59

37

BEARING, BALL 6012 SH2 C3 60 X 95 X 18

3236421

$59.52

38

BEARING, BALL 6306 RSH2 30X72X19

3236422

$47.62

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION .46 I.D. X 0.73

3234089

$28.32

40

SPRING, COMPRESSION .46 I.D. X 0.73

3234089

$28.32

41

SPRING, COMPRESSION DETENT

3234578

$13.75

42

SPRING TORSION

3235885

$20.22

43

SPRING, WASHER

3235327

$9.52

44

COVER, SECTOR GEARS MACH

3235809

$47.49

45

TUBE, SNORKEL MACH

3236423

$105.22

46

GEAR, SECTOR 16T

3233839

$36.41

47

GEAR-SECTOR,31T

3233832

$36.41

48

PLATE, PARK 12-FACE

3235456

$40.46

49

STAR, DETENT

3235982

$36.41

50

SHAFT-REVERSE,27T(285878)

3235380

$246.89

51

GEAR, 19T SNORKEL

3236425

$113.32

52

SHAFT IDLER, 27T

3236424

$128.24

53

BELLCRANK 92 DEGREE

3235227

$28.32

54

COLLAR-SHIFT

3234073

$31.75

55

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

56

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

57

SHAFT-SHIFT(352973)

3235238

$42.74

58

GEAR, 46T STAGE 2

3235381

$156.74

59

SHIFT DOG, PARK

3235457

$145.70

60

RAIL, SHIFT SHAFT

3235542

$28.32

61

GEAR, LOW 61T

3235561

$99.74

62

PARK CAM

3235983

$183.95

63

DRUM, SHIFT MACH

3235984

$279.27

64

GEAR, LOW 31T

3235990

$114.99

65

GEAR, REVERSE 56T

3235985

$101.17

66

GEAR, IDLER 39T

3235986

$113.32

67

GEAR, 52T

3236435

$99.74

68

SHAFT, FRONT OUTPUT

3236428

$157.84

69

GEAR, 43T STAGE 3

3236427

$130.70

70

WELDMENT, REAR MOUNT BRACKET

3236144

$40.46

71

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

72

SUBASSEMBLY SHIFT FORK

3235920

$72.84

72

SUBASSEMBLY SHIFT FORK

3235920

$72.84

73

SUBASSEMBLY, LH CASE [TO 3/9/2020]

3236429

$529.99

73

SUBASSEMBLY, LH CASE [FROM 3/9/2020]

3236633

$527.24

74

SUBASSEMBLY, RH CASE

3236430

$429.99

75

SUBASSEMBLY, OUTPUT

3236431

$334.99

76

SUBASSEMBLY, INPUT 43T/22T/31T

3236524

$409.99

77

SUBASSEMBLY, PINION

3236433

$429.99

78

COVER, BEARING CENTER DRIVE

3235823

$48.56

79

BRACKET, REAR MOUNT

3236145

$40.46

80

SENSOR-SPEED,TRANS

4013908

$109.27

81

SWITCH, ROTARY 2 PIN RESISTIVE

7662299

$113.32

82

O-RING, -113 VITON

3233840

$11.32

83

O-RING

3233836

$6.87

84

O-RING

3233828

$6.87

85

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

85

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

86

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$66.49

87

O-RING 3.739 I.D. X 0.07

3235948

$7.59

88

SEAL, TRIPLE LIP 32 X 49 X 8 VITON [TO 3/9/2020]

3236141

$60.70

88

SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE,32X49X9 [FROM 3/9/2020]

3236634

Unavailable

89

PLUG, M18 X 1.5

3234755

$27.78
