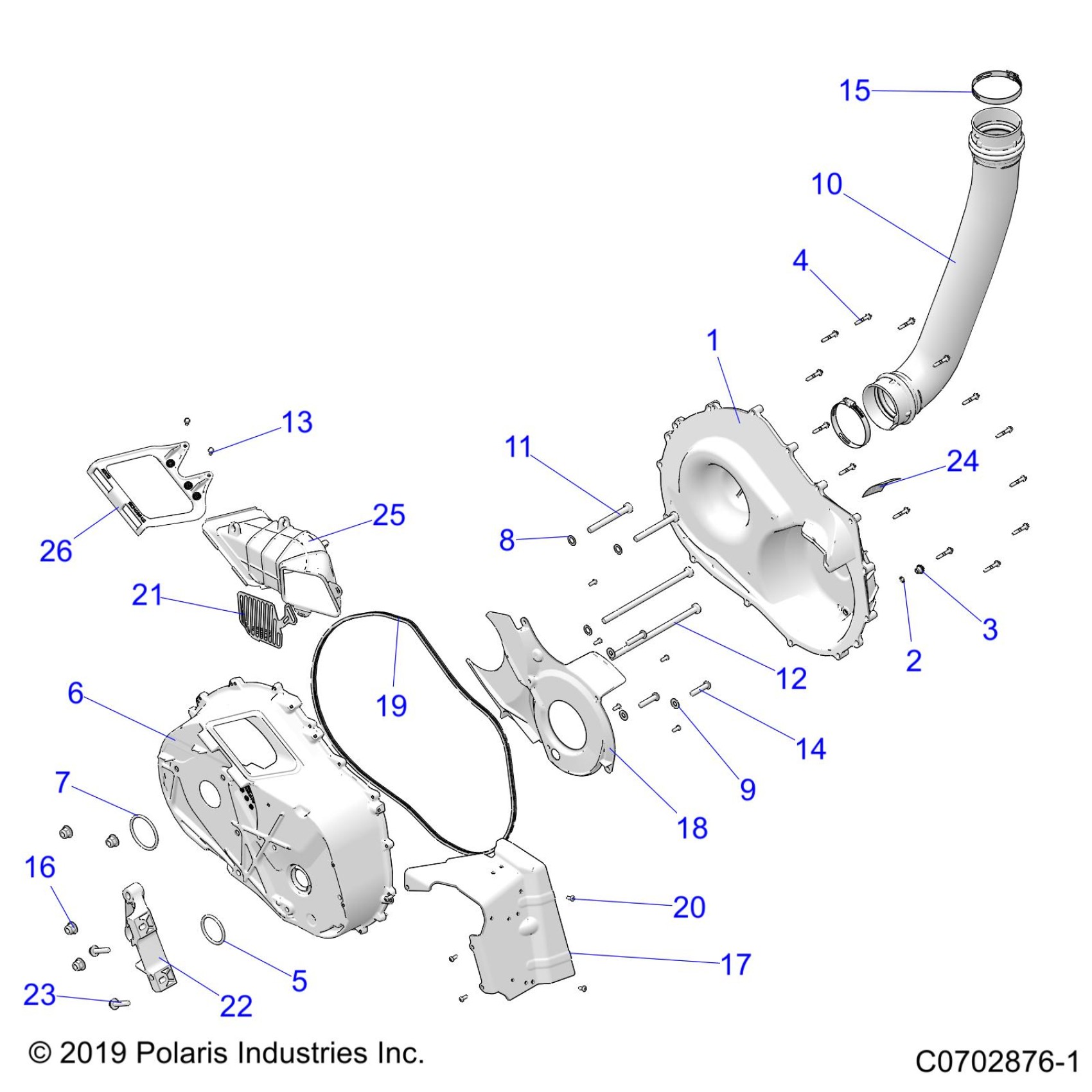

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z20RAB92LR/D92LC/E92LT (C0702876-1) Diagram

ASM-COVER,CLUTCH,OUTER [INCL 2-4]

2637168

$155.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

SCR-HXFL-M6X1X36 10.9 ZY3 SPC

7520986

$11.69

O-RING-2.25X2.625X.21,FKM

5416417

$13.59

COVER-CLUTCH,INNER,MACH

5142931

$223.99

O-RING

5415647

$1.59

WASHER-.510X.840X.031 Y

7555919

$4.99

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

ASM-DUCT,CVT,INLET

1241346

$115.99

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$7.99

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$13.59

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.99

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

BRKT-GUARD,CLUTCH COVER

5267038

Unavailable

BAFFLE-INNER COVER

5454869

Unavailable

SEAL-CLTCH CVR,SILICONE FOAM

5522259

Unavailable

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

BRKT-SCREEN,BELT

5266382

$14.39

BRKT-TRANSJOINT,MAG,MACH

5139822

Unavailable

SCR-HXFL-M10X1.5X45 8.8 ZY3

7518531

$4.79

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

DUCT-CLUTCH,OUTLET

5416601

$83.99

MOUNT-OUTLET DUCT

5634029

$31.99
