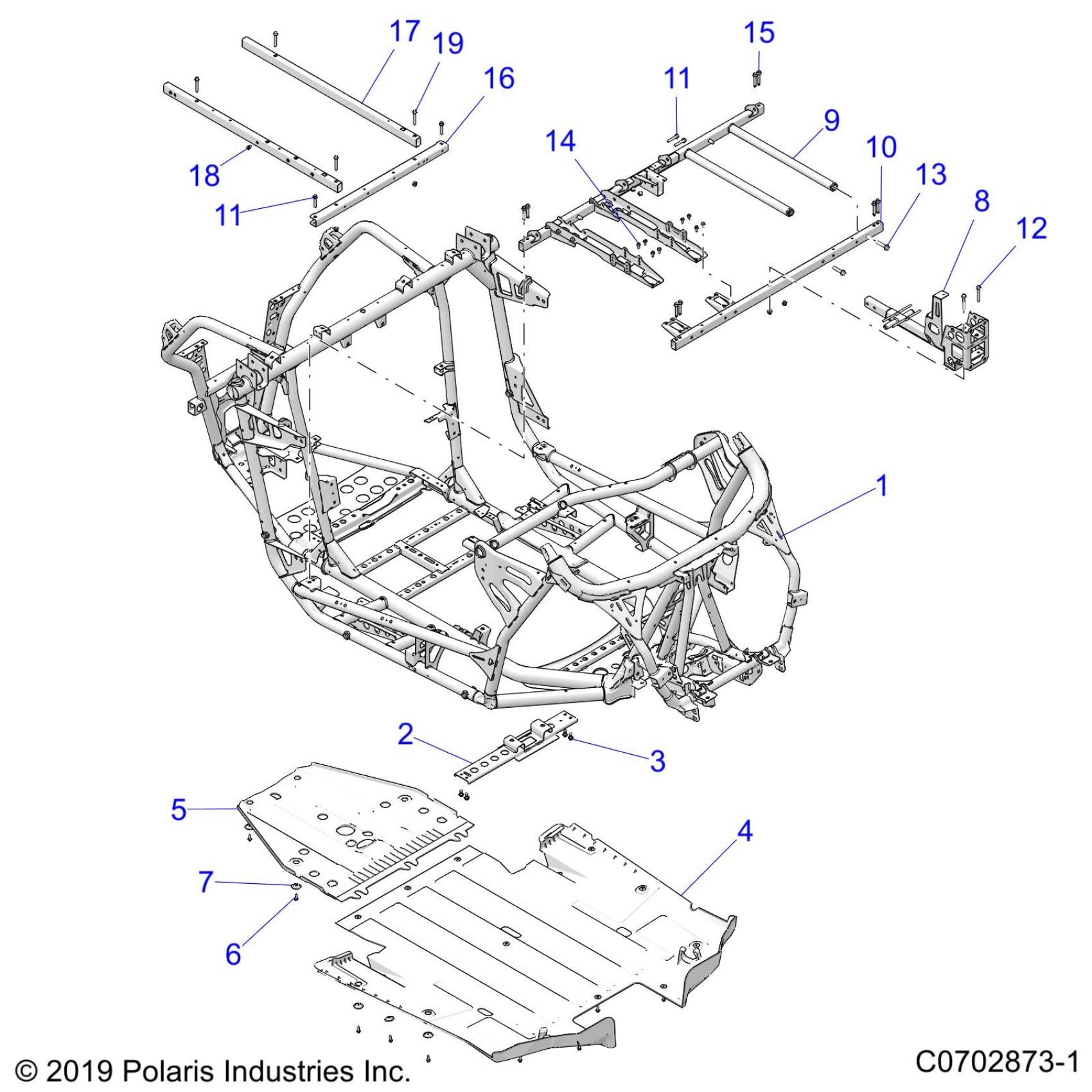

Polaris RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT CHASSIS, MAIN FRAME AND SKID PLATES - Z20RAB92LR/D92LC/E92LT (C0702873-1) Diagram

WELD-MAINFRAME,ISO,64,BLK

1023857-458

Unavailable

WELD-MOUNT,PROPSHAFT,ECOAT

1023970-329

$47.99

SCR-HXFL-M8X1.25X20 8.8 ZY3 NY

7518450

$1.59

PLATE-SKID,FRONT,BLK

5456058-070

$239.99

PLATE-SKID,REAR,BLK

5456082-070

$131.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

WASHER-SKID PLATE

7556065

$4.79

WELD-MOUNT,SHIFT/SCM,ECOAT

1024690-329

Unavailable

WELD-SEAT BASE,ECOAT

1024740-329

$167.99

WELD-SEAT BASE,FRONT,ECOAT

1024840-329

$83.99

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

SCR-M8X1.25X60-HX/FL-Y

7516733

$6.39

SCR-M10X1.50X50 HX/FL-Y

7518687

$5.22

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

SCR-HXFL-M8X1.25X50 DP ZPBP30

7519245

$3.99

BRKT-CLOSE OFF SUPPORT,ECOAT

5267561-329

Unavailable

WELD-MOUNT,BOX [INCL 26]

1023962

$39.99

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.19

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99
